Hydraulic Plate Bending Machine
Hydraulic Plate Bending Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30 working days
Shipping Time : 40 days
Port : Tianjin

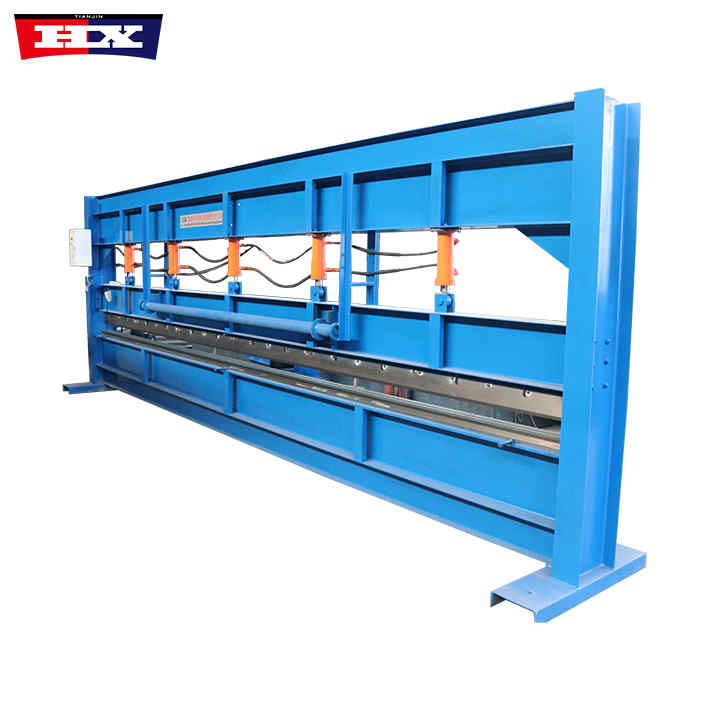

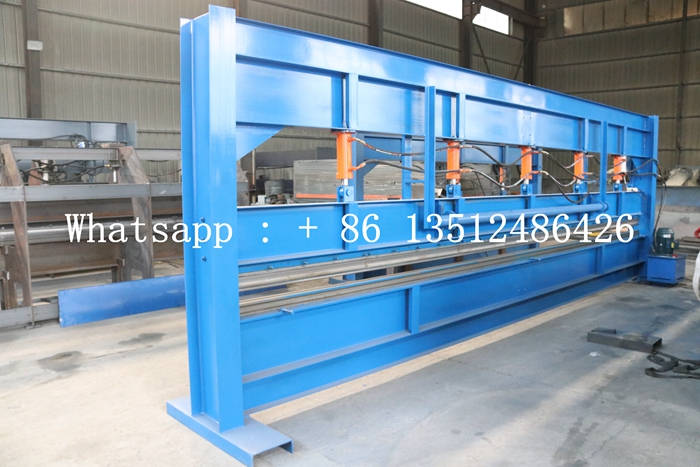

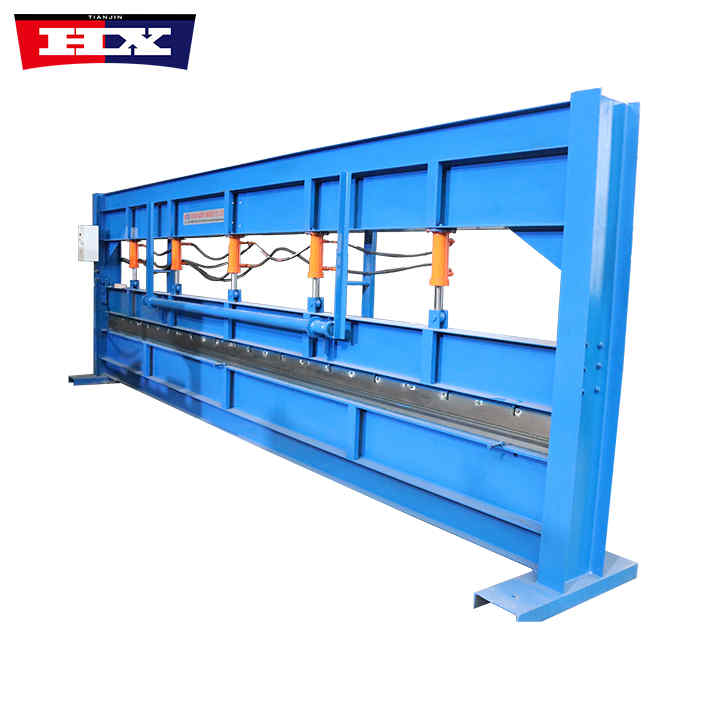

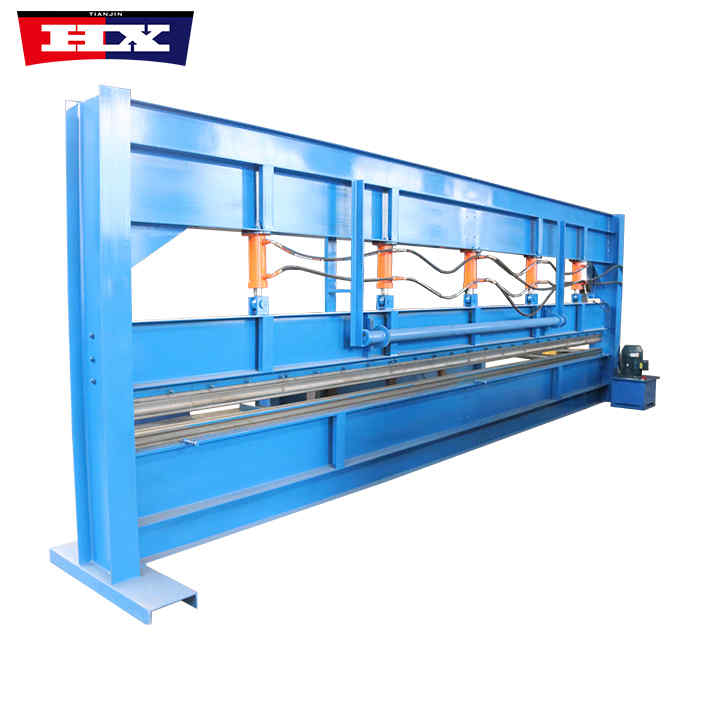

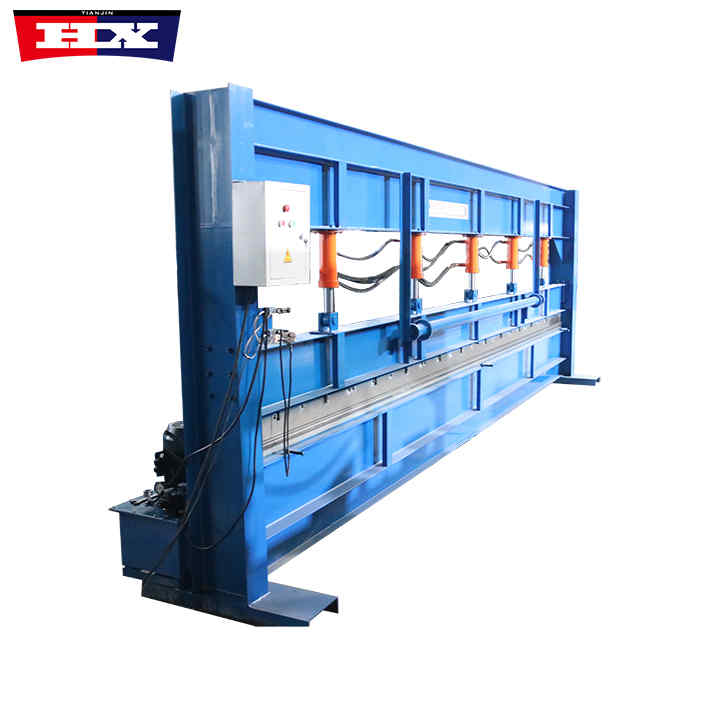

Hydraulic Plate Bending Machine
Hydraulic Plate Bending Machine
Hydraulic plate bending machine is a machine used for metal material processing. It can bend, cut and process flat plates, pipes and other materials. It is widely used in construction, automobile, aerospace and other industries. It is driven by a hydraulic system and has the characteristics of high precision, high efficiency, and easy operation. It can effectively improve production efficiency and processing quality, and has become an indispensable equipment for modern industrial production.
The working principle of the hydraulic plate bending machine is to use the pressure of hydraulic oil as the power source to move the hydraulic cylinder piston and drive the mechanical plane shearing knife or bending mold to process metal materials.
Specification
No. |
Number |
Hydraulic Plate Bending Machine |
| 1. | Raw material | Common hardness materials ≤1mm |
| 2. | Bending length | ≤6m |
| 3. | Pumping station electrical power | 3KW |
| 4 | Installation dimension | About 4600*800*2100mm |
| 5. | Weight | About 0.85 tons |
| 6. | Bending angle | The equipment incluye 3 mould 90° 120° 135° |
| 7. | Cylinder | 3 pcs oil cylinders of model 80 |
| 8. | Stroke | 150mm |
| 9. | Voltage | 380v 50hz 3p be customized |
Advantages
1. High bending accuracy:
The hydraulic plate bending machine uses a hydraulic system to control the movement of the machine. It is easy to operate, stable and reliable, and can accurately control the angle and position of the bending, ensuring the accuracy and quality of the processed parts.
2. Strong transmission ability:
The hydraulic system of the hydraulic plate bending machine can provide large force to drive the mechanical movement, making the bending process smoother and more stable. Whether it is bending processing of thin or thick plates, good results can be obtained.
3.Wide processing range:
Hydraulic plate bending machine are suitable for bending metal sheets of different materials and thicknesses, and can meet the processing needs of different workpieces. At the same time, on a hydraulic bending machine, molds of different shapes can be replaced as needed, further expanding its processing range.
4. High safety:
The hhydraulic plate bending machine is designed with safety factors in mind, such as safety protection devices, emergency stop buttons, etc., to ensure the safety of operators.
