Hydraulic Metal Bender
Hydraulic Metal Bender
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30 working days
Shipping Time : 40 days
Port : Tianjin
Hydraulic Metal Bender
Hydraulic Metal Bender

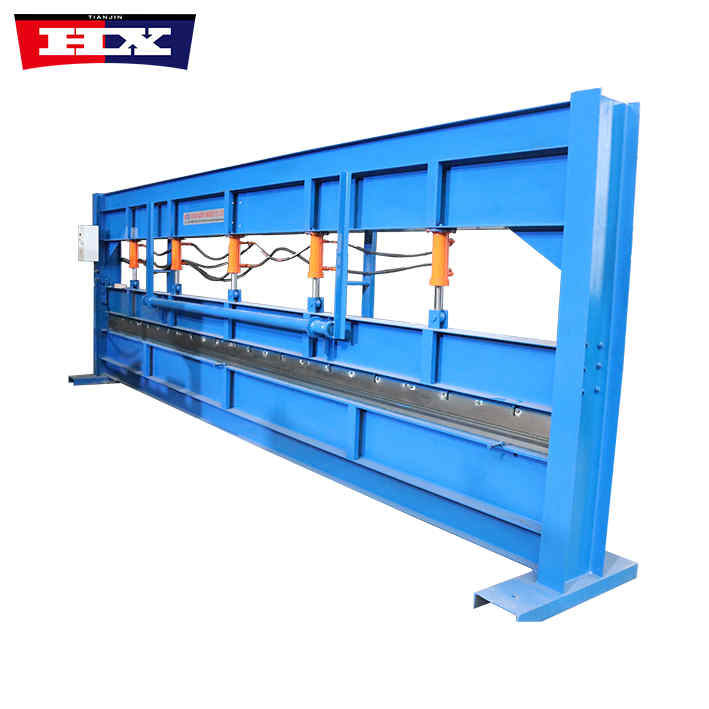

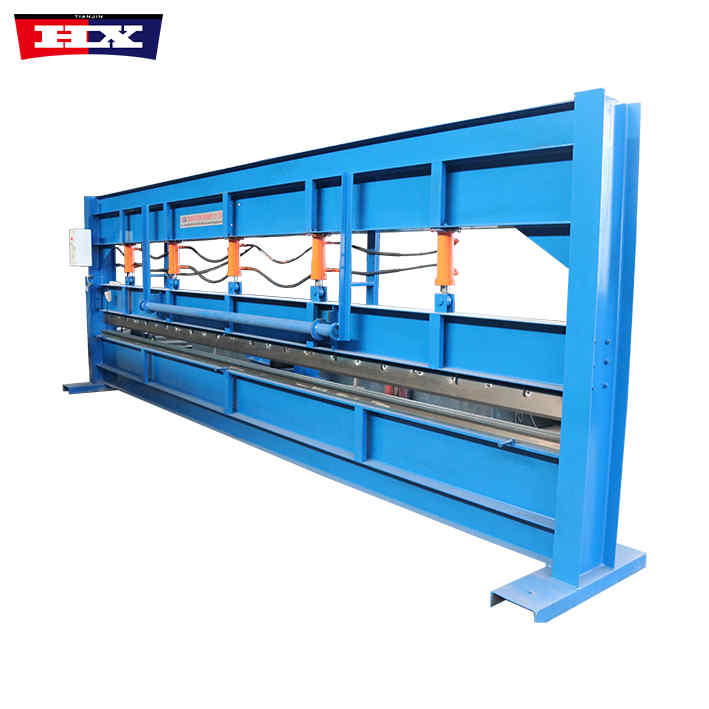

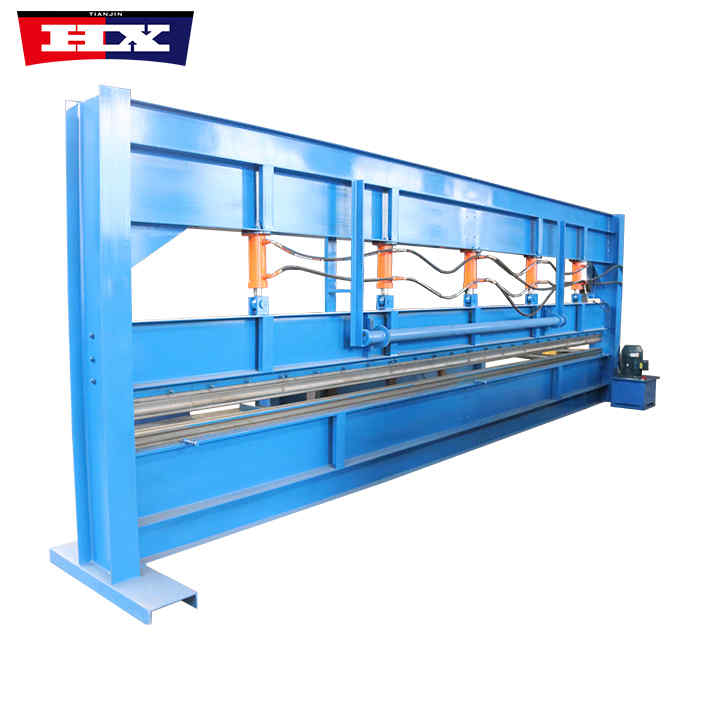

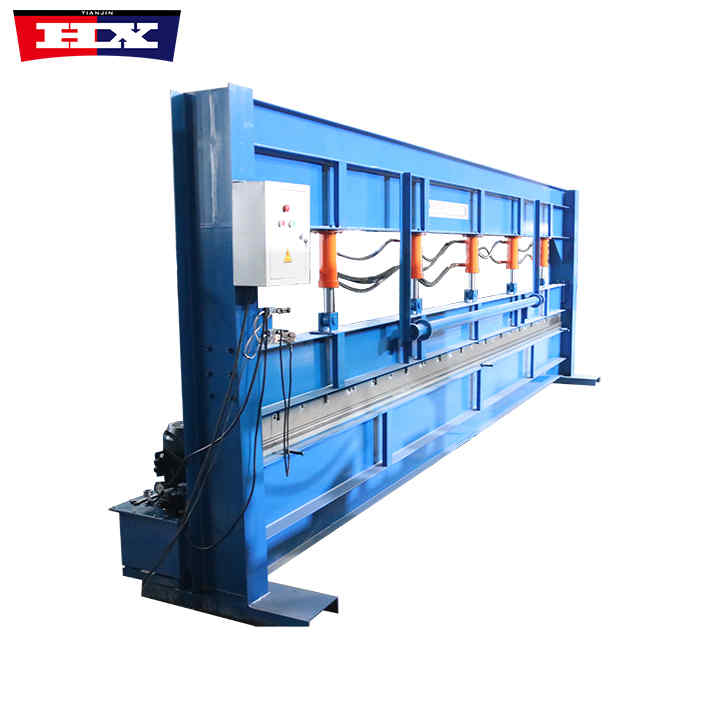

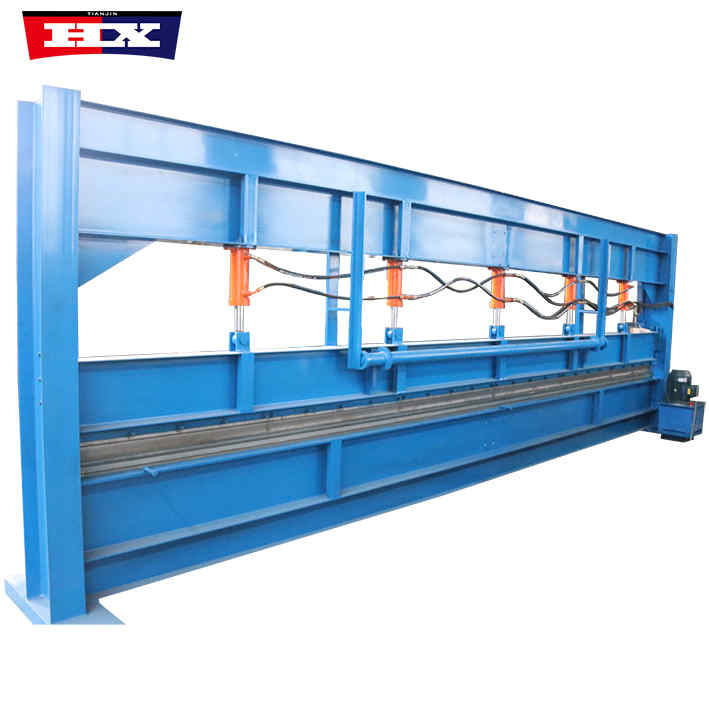

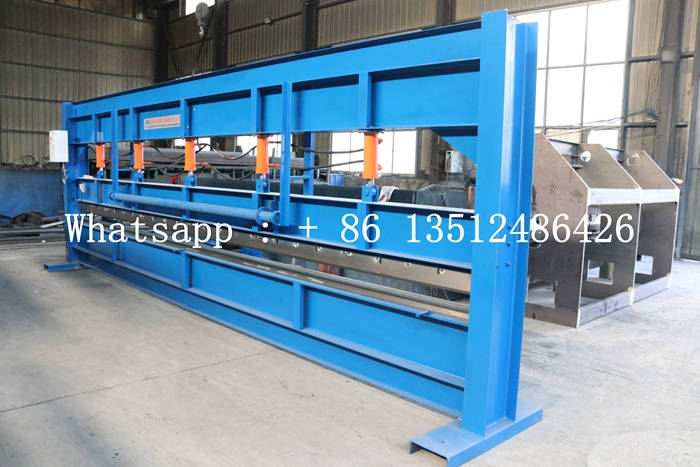

Hydraulic metal bender is a kind of mechanical equipment commonly used in the metal processing industry. It is mainly used for bending metal sheets.

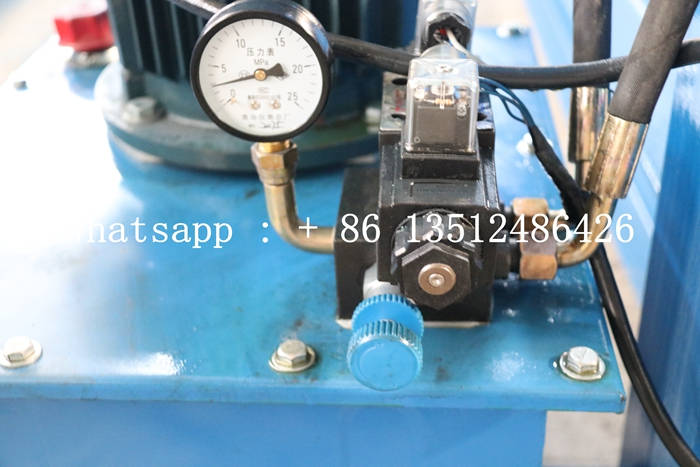

Through the control of the hydraulic system, it allows the upper and lower molds on the workbench to clamp or loosen the metal sheet, thereby achieving bending of the metal sheet.
Specification
No. |
Number |
Hydraulic Metal Bender |
| 1. | Raw material | Common hardness materials ≤1mm |
| 2. | Bending length | ≤6m |

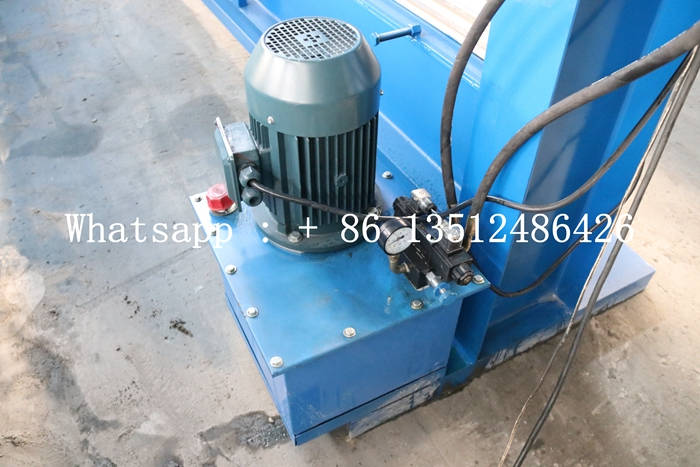

| 3. | Pumping station electrical power | 3KW |
| 4 | Installation dimension | About 4600*800*2100mm |
| 5. | Weight | About 0.85 tons |

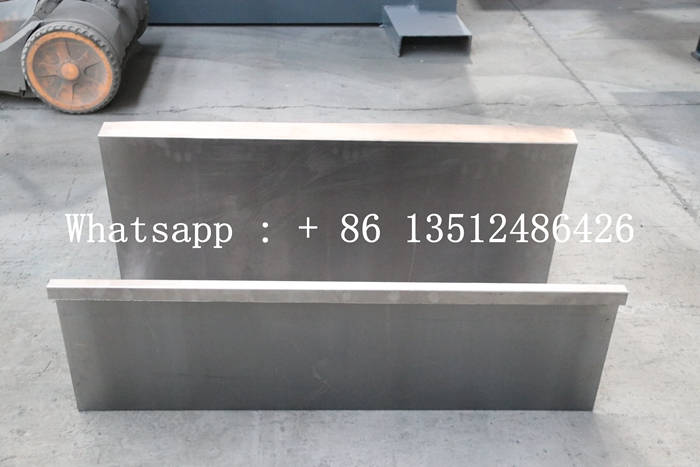

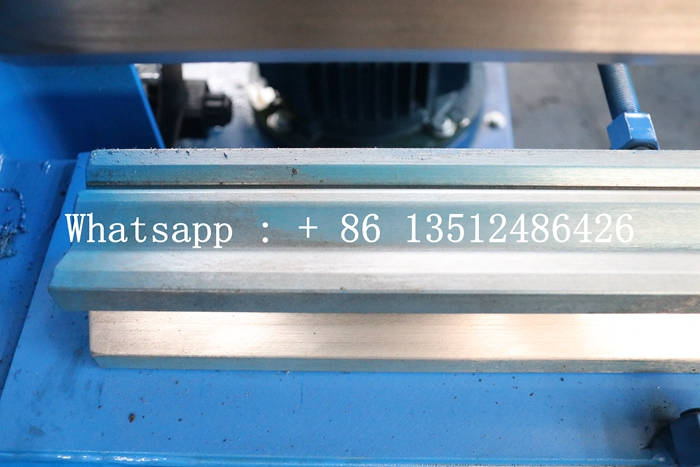

| 6. | Bending angle | The equipment incluye 3 mould 90° 120° 135° |
| 7. | Cylinder | 3 pcs oil cylinders of model 80 |
| 8. | Stroke | 150mm |
| 9. | Voltage | 380v 50hz 3p be customized |
Features
1. Low cost: The manufacturing cost of hydraulic metal bender is relatively low, so it is relatively economical in terms of equipment investment and maintenance costs.
2. Simple operation: The operating process of the hydraulic metal bender is relatively simple. The processing operation can be realized by adjusting the hydraulic valve. The operator does not need to have too much professional knowledge and skills.
3. Wide scope of application: The hydraulic metal bender can bend plates of different materials, and can also bend a variety of different shapes.
