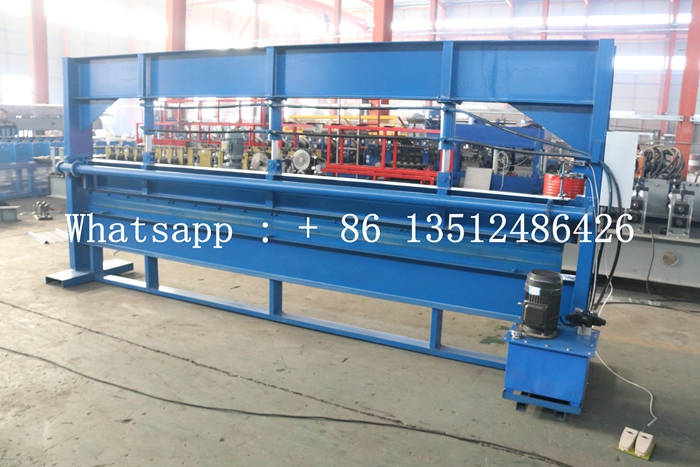

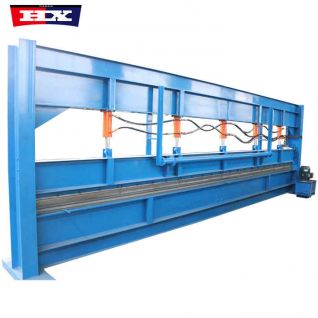

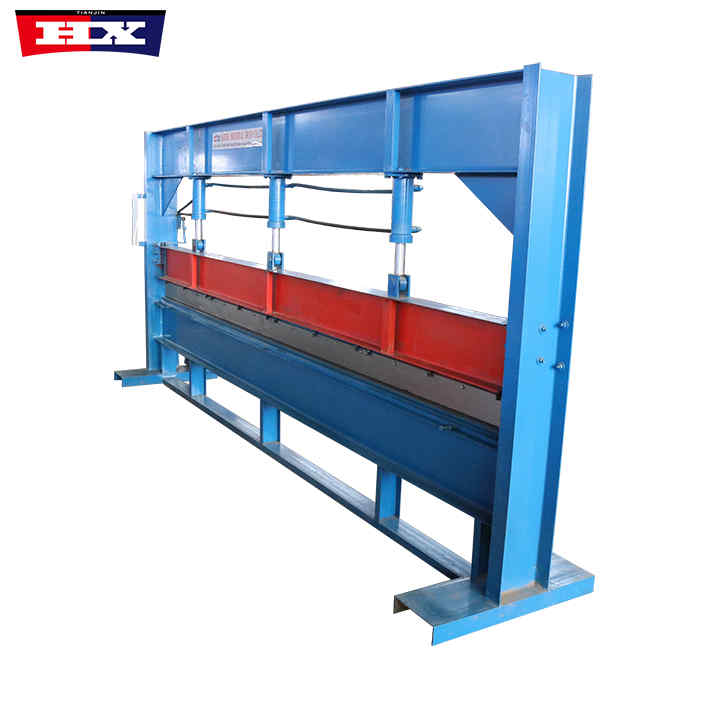

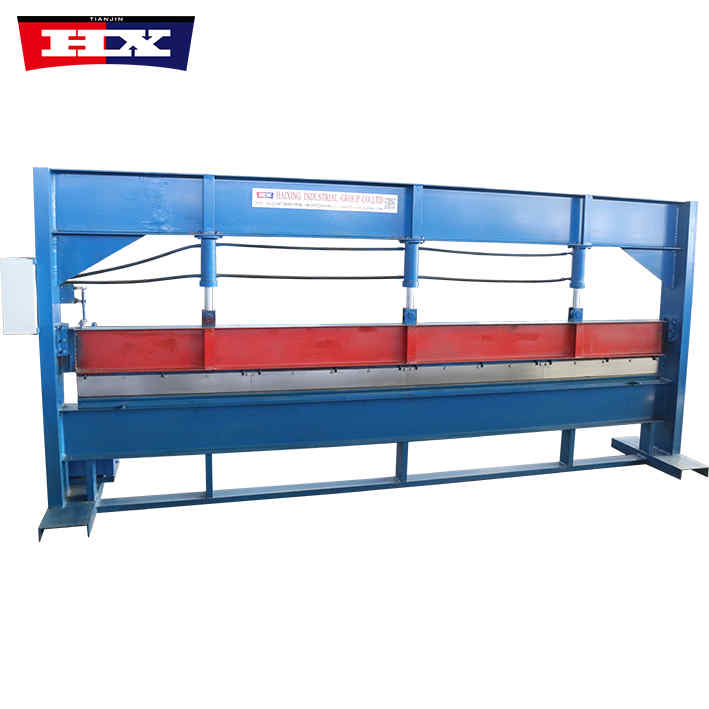

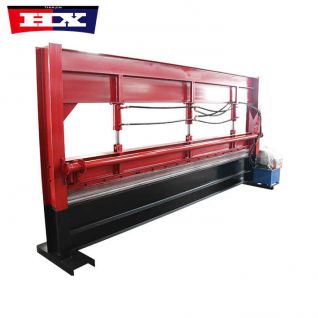

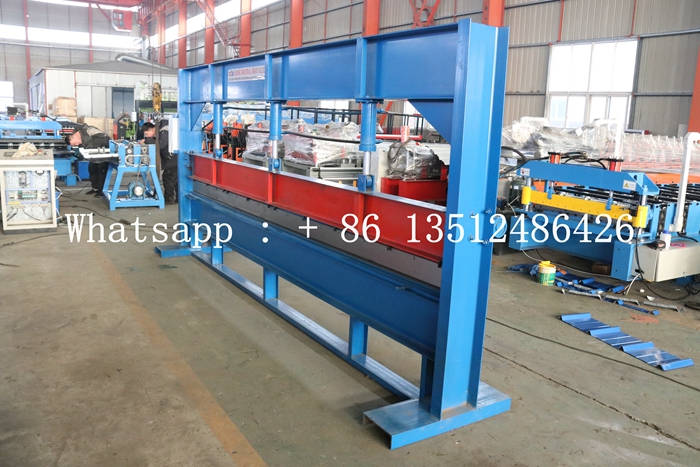

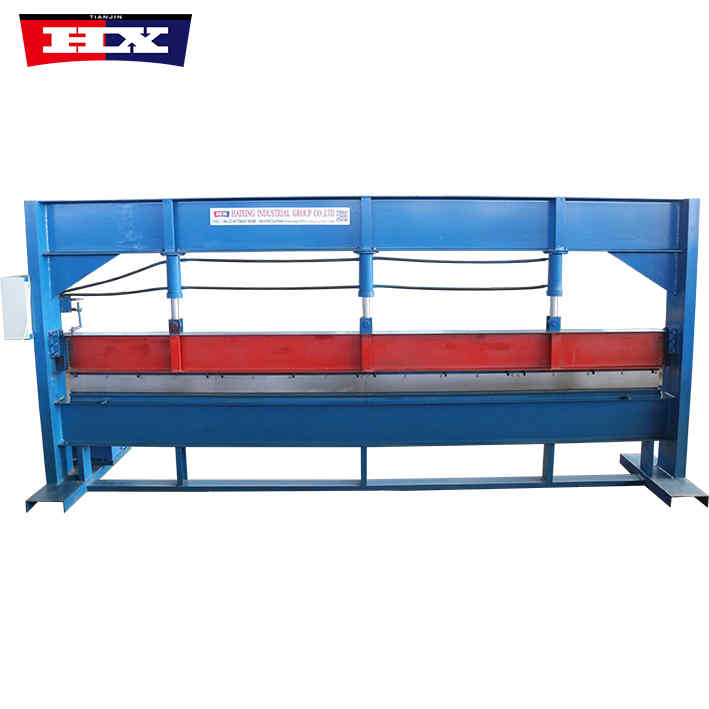

Hydraulic Metal Bending Machine
Hydraulic Metal Bending Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30 working days
Shipping Time : 40 days
Port : Tianjin

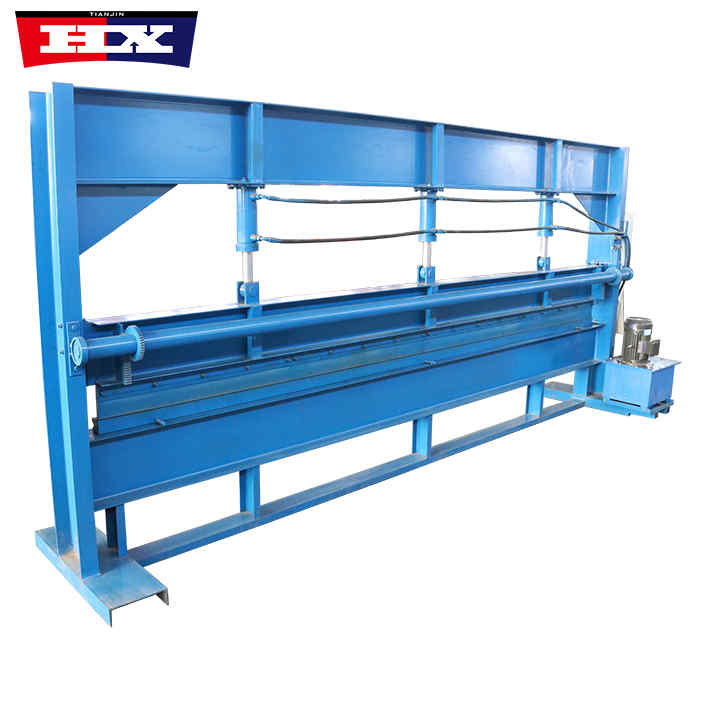

Hydraulic Metal Bending Machine

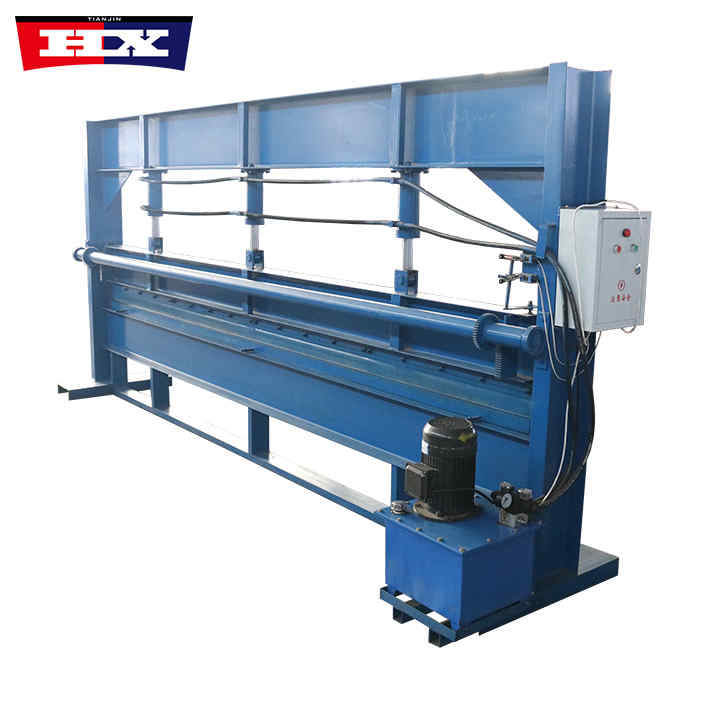

Hydraulic Metal Bending Machine
1. Hydraulic metal bending machine is a metal sheet processing equipment driven by a hydraulic system. It is a high-tech product that organically combines mechanical, electrical, and hydraulic technologies. It mainly consists of the fuselage, hydraulic system, control system and workbench.
2. Working principle
The working principle of the hydraulic metal bending machine is to rely on the pressure of hydraulic oil to control the working status of the machine. Usually, hydraulic bending machines use a hydraulic system to control the work of the cylinder. When working, place the metal sheet on the workbench, and then move the robot arm to clamp the workpiece. Then, the hydraulic system is started, and the pressure of the hydraulic oil causes the piston of the lower plate cylinder to move downward to achieve the bending process of the metal sheet.
3. Application
Hydraulic metal bending machines are widely used in machinery, aviation, automobiles, construction, rail transit and other fields. They are especially important in sheet metal manufacturing, welding processing, sheet metal processing, etc. They are one of the important and irreplaceable equipment for many manufacturing companies. one. In addition, hydraulic bending machines are also widely used in shipbuilding, electric power, petroleum, chemical industry and other fields.
Specification
No. |
Number |
Hydraulic Metal Bending Machine |
| 1. | Raw material | Common hardness materials ≤1mm |
| 2. | Bending length | ≤4m |
| 3. | Pumping station electrical power | 3KW |
| 4 | Installation dimension | About 4600*800*2100mm |
| 5. | Weight | About 0.85 tons |
| 6. | Bending angle | The equipment incluye 3 mould 90° 120° 135° |

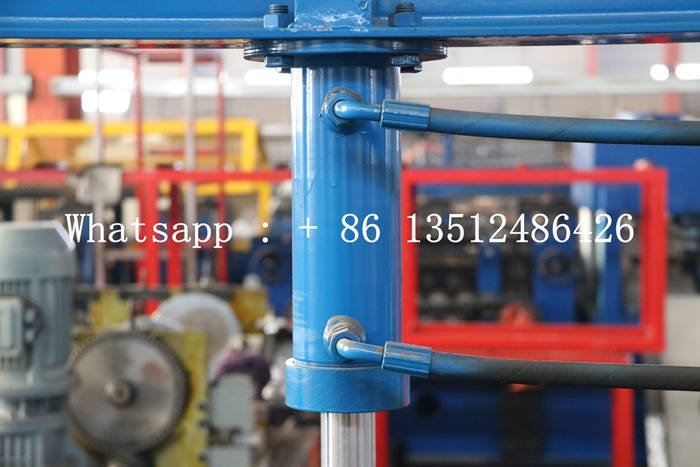

| 7. | Cylinder | 3 pcs oil cylinders of model 80 |
| 8. | Stroke | 150mm |
| 9. | Voltage | 380v 50hz 3p be customized |
Features
1. High control precision and easy operation: the operation is simple and can be operated by ordinary workers.
2. Suitable for processing large workpieces: Hydraulic bending machines have greater pressure and can process large sheet metal workpieces with high processing efficiency.
3. High processing quality: When processing sheet metal workpieces, the hydraulic bending machine can ensure high processing quality and avoid problems such as sheet metal deformation and cracks during the processing.
