Sheet Bending Machine
Sheet Bending Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30 working days
Shipping Time : 40 days
Port : Tianjin

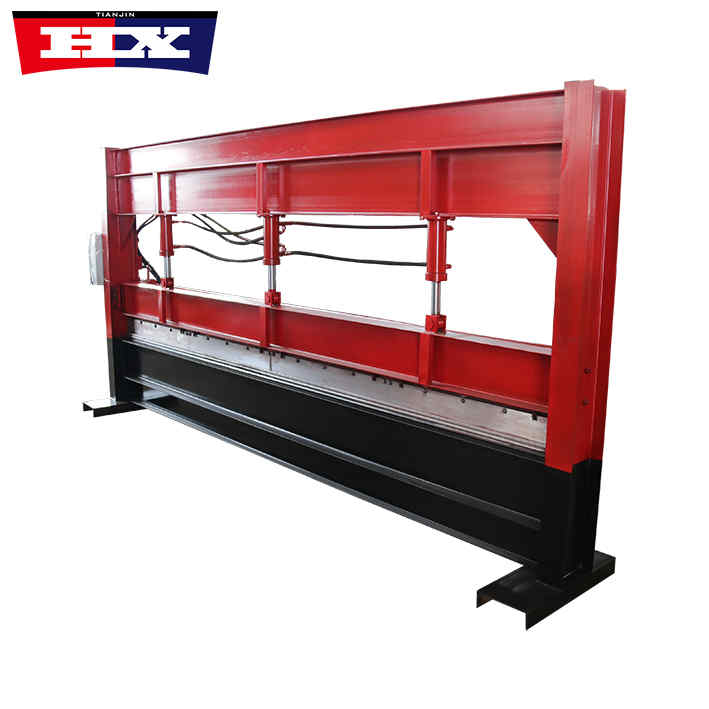

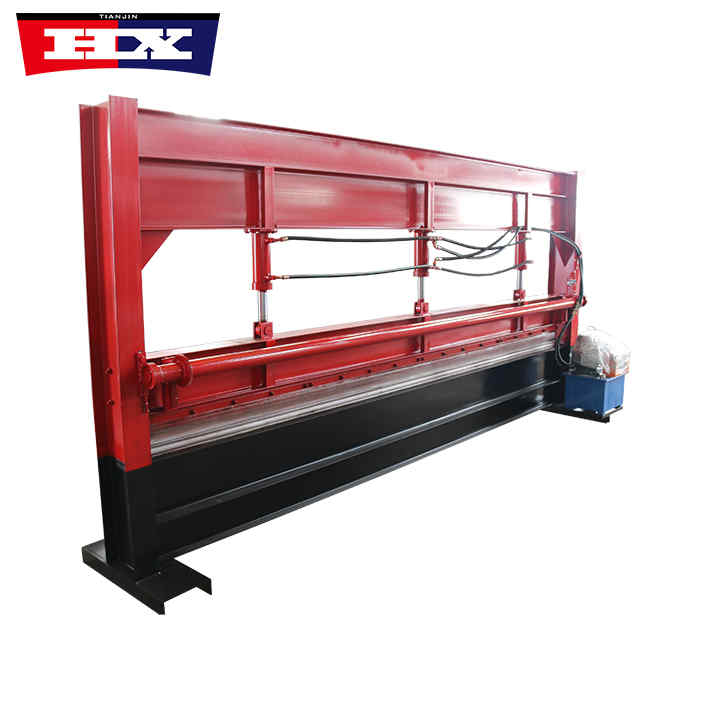

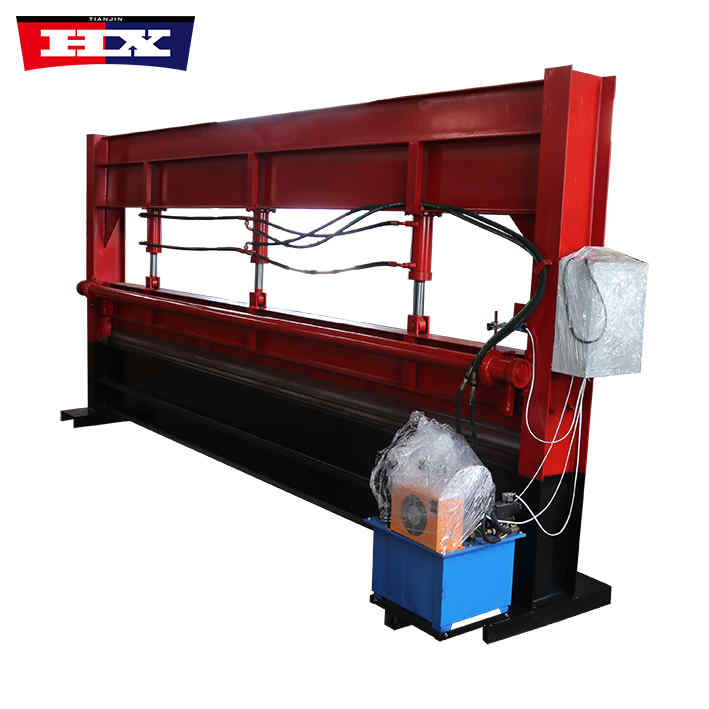

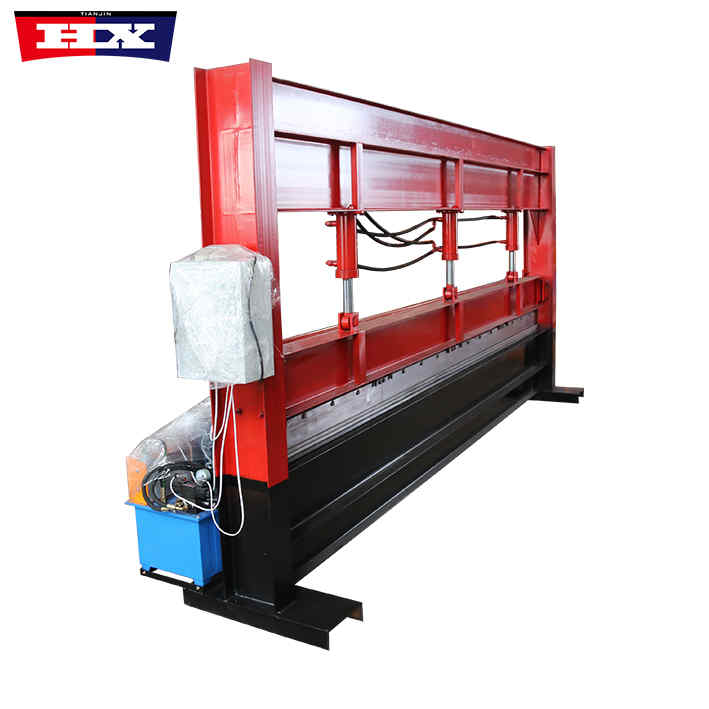

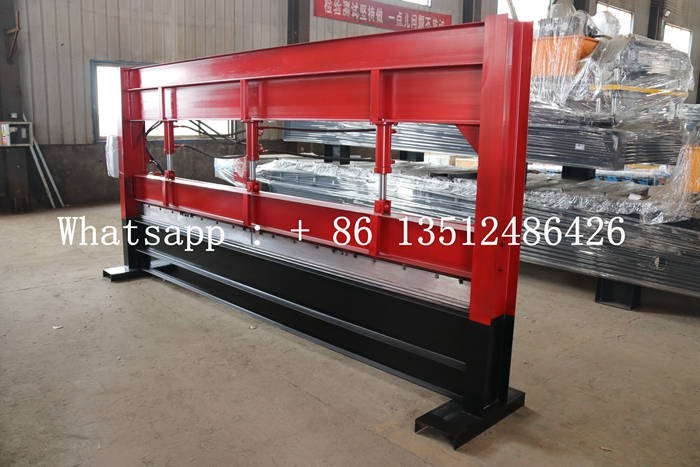

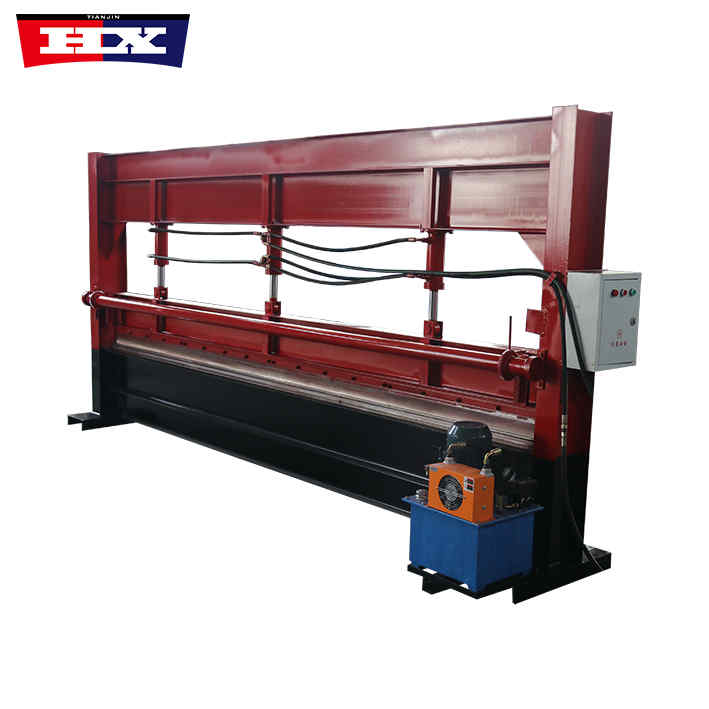

Sheet Bending Machine
Sheet Bending Machine
Sheet bending machine is a commonly used metal processing equipment, widely used in machinery manufacturing, automobile manufacturing, shipbuilding and other industrial fields.
It can produce parts and components of various shapes by bending metal materials.
1. Hydraulic system The hydraulic system is the core part of the bending machine and mainly includes hydraulic cylinders, hydraulic pumps, hydraulic valves and other components.
When working, the hydraulic pump sends hydraulic oil into the hydraulic cylinder to generate pressure.
Then, through the control of the hydraulic valve, the pressure is transmitted to the upper mold or lower mold to generate the required bending force.
The hydraulic system has the advantages of high pressure and good stability, and can meet the needs of bending metal materials of different thicknesses.

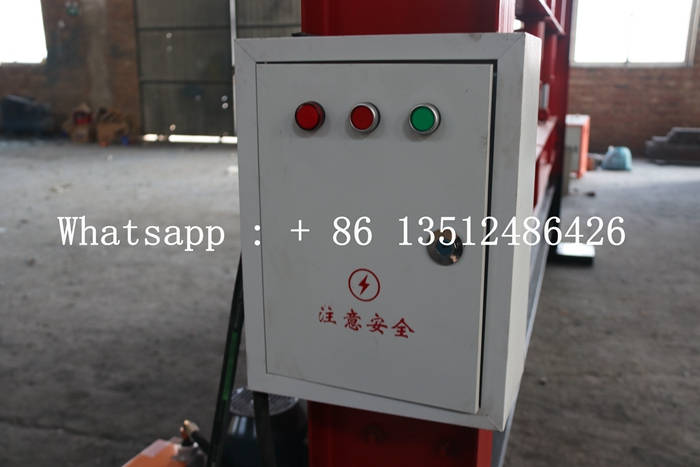

2. Control system The control system is used to control the working process of the bending machine, mainly including electrical control and PLC control.
Electrical control is mainly through manual operations such as buttons and switches, which can realize the basic functions of the sheet bending machine.
PLC control realizes the automatic operation of the bending machine through preset programs.
Through the control system, operators can adjust parameters such as bending angle and pressure, and monitor the real-time status of the bending process.
Specification
No. |
Number |
Sheet Bending Machine |
| 1. | Raw material | Common hardness materials ≤1mm |
| 2. | Bending length | ≤4m |

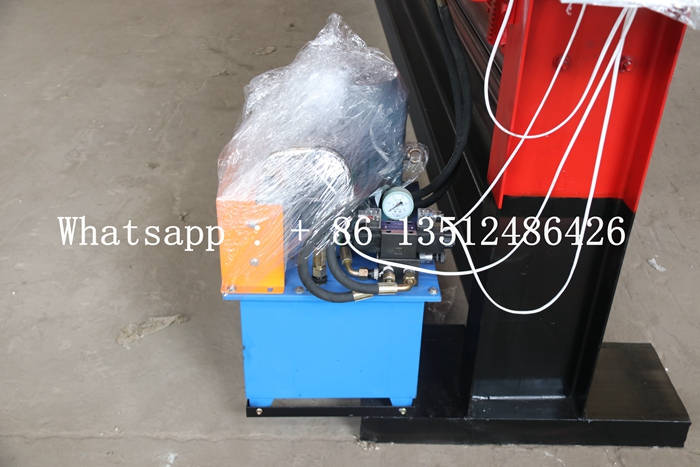

| 3. | Pumping station electrical power | 3KW |
| 4 | Installation dimension | About 4600*800*2100mm |
| 5. | Weight | About 0.85 tons |
| 6. | Bending angle | The equipment incluye 3 mould 90° 120° 135° |

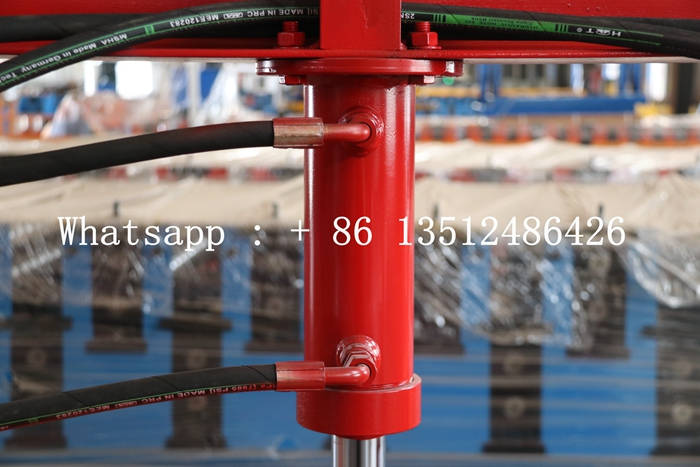

| 7. | Cylinder | 3 pcs oil cylinders of model 80 |
| 8. | Stroke | 150mm |
| 9. | Voltage | 380v 50hz 3p be customized |
Sheet Bending Machine
1. Preparation work Before operating the bending machine, preparation work needs to be carried out.
Check whether all components of the bending machine are operating normally and ensure that the hydraulic oil level is sufficient.
Check whether the metal materials to be processed meet the requirements, and clean equipment such as workbenches and molds.
2. Adjust the mold. Select the appropriate mold according to the size and shape of the workpiece to be processed, and install it correctly on the bending machine.
When adjusting the mold, attention should be paid to parameters such as the position, angle, and pressing force of the mold to ensure that the processing effect meets the requirements.
3. Set parameters According to the processing requirements, use the control system to set parameters such as bending angle, pressure and speed.
These parameters can be determined based on the nature and thickness of the material, generally speaking, harder materials require higher pressure and slower speeds.
4. Start processing. After confirming that all parameters are set correctly, you can start processing.
Place the metal material on the workbench, position it, and secure it with clamps or footswitches.
Then press the operating button to start the bending machine. After the processing is completed, release the clamp in time and take out the processed workpiece.
