Stud And Track Machine
Stud And Track Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.4-1.2mm
Produce Speed : 45-60m/min
Port : Tianjin
Stud And Track Machine
Stud And Track Machine

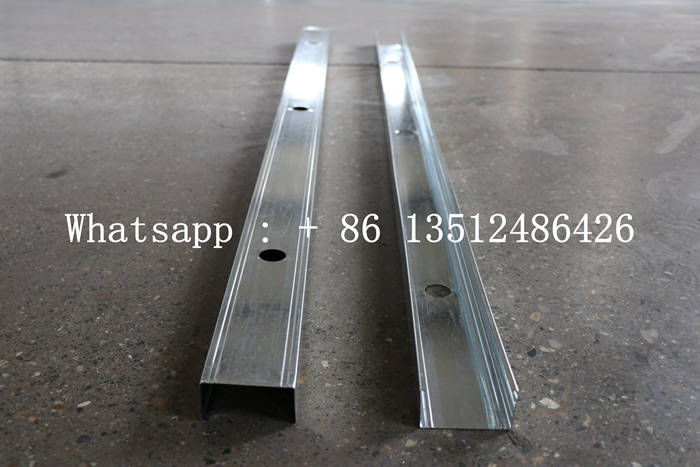

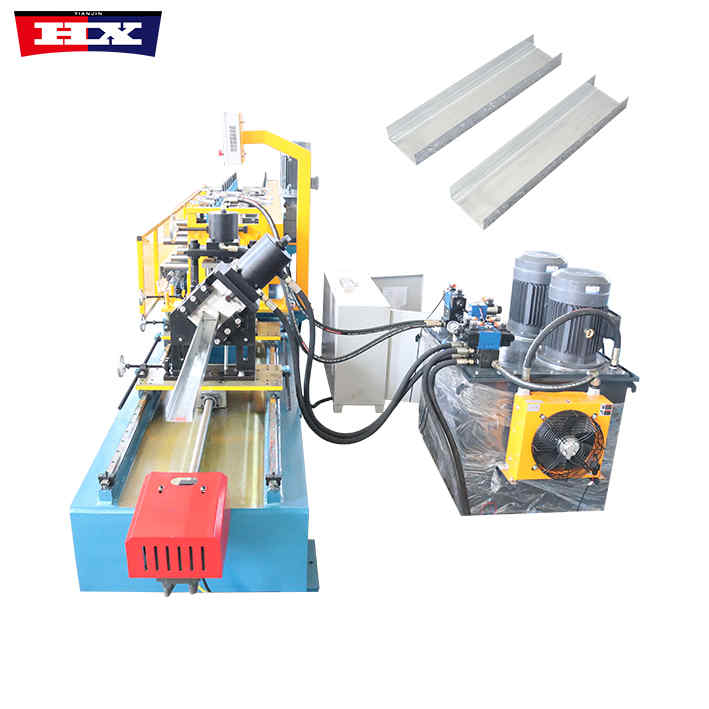

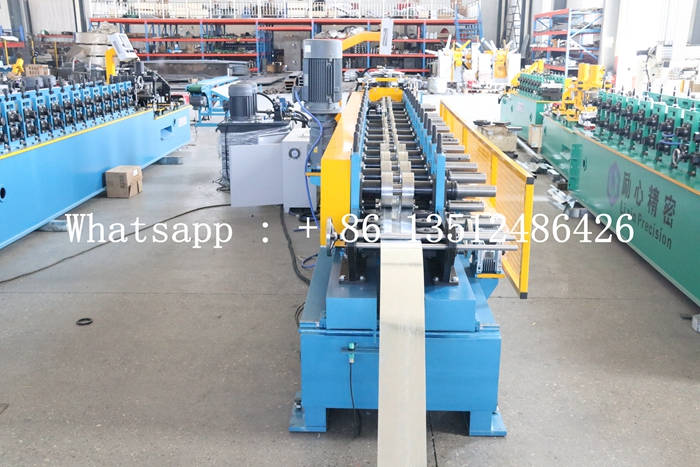

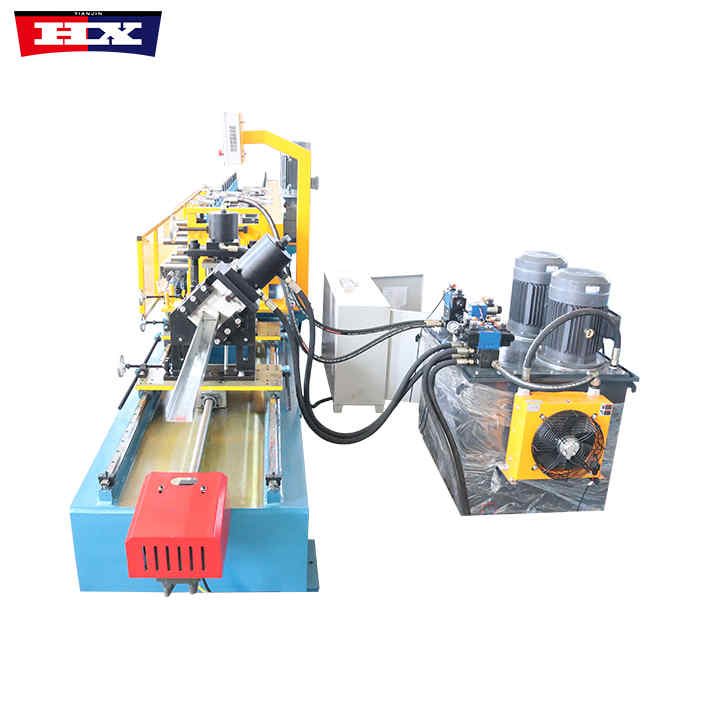

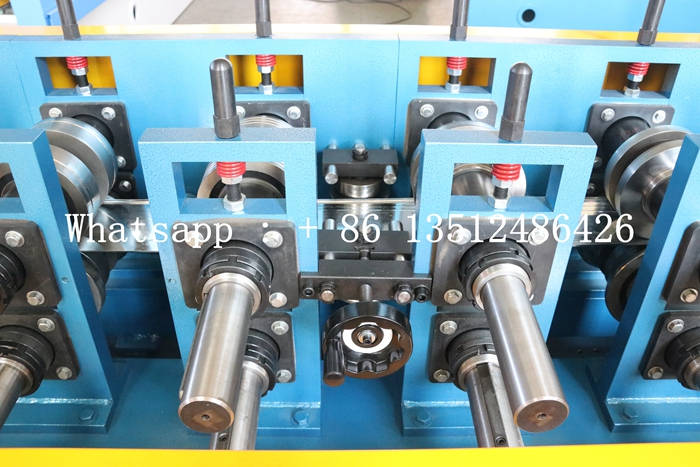

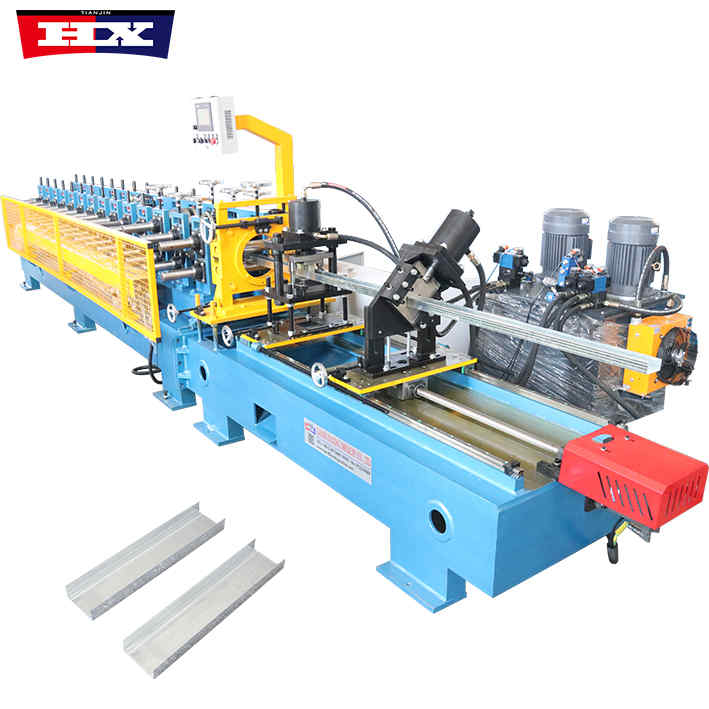

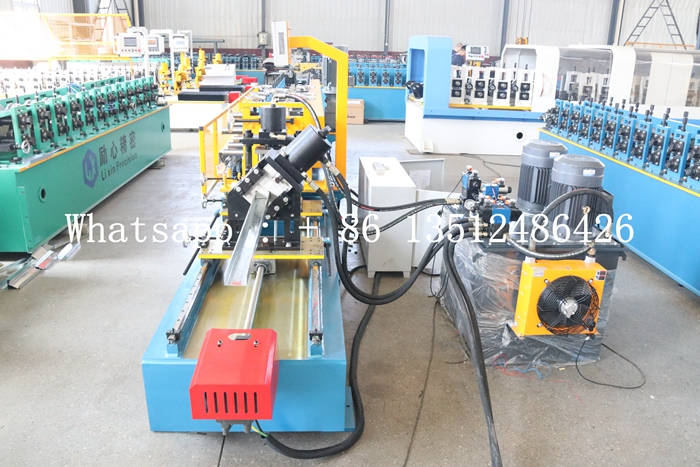

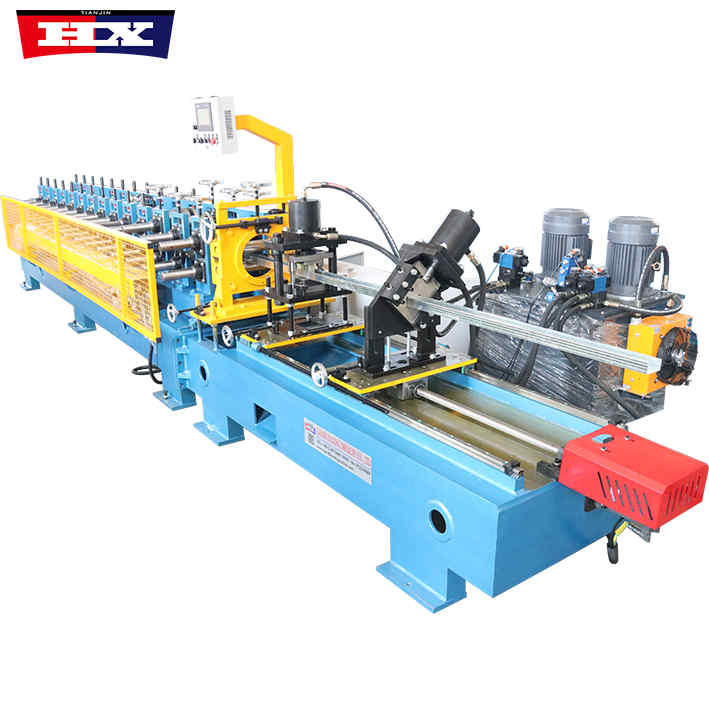

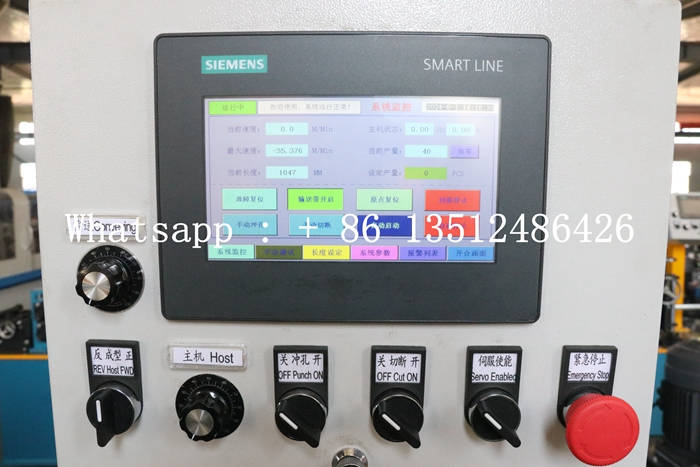

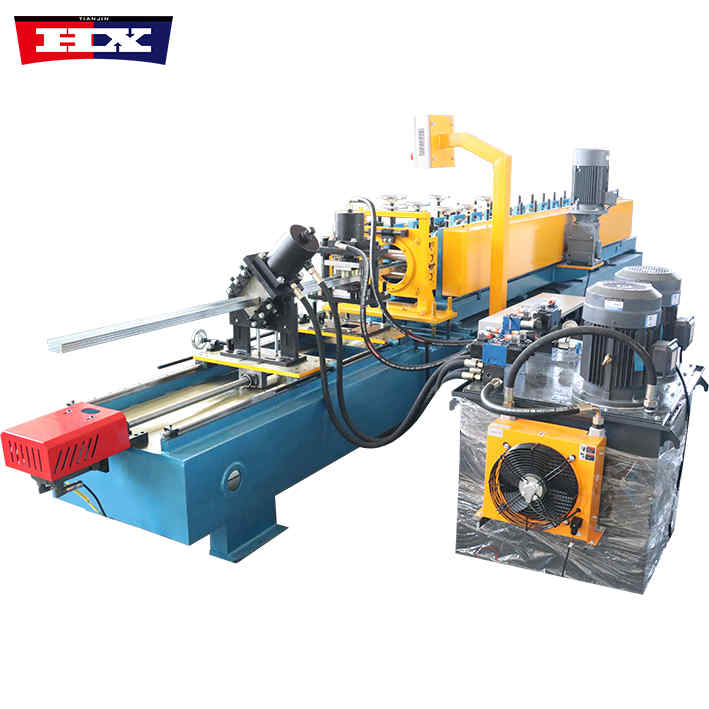

The stud and track machine is a mechanical equipment professionally used to manufacture various light steel keels. It has the characteristics of high efficiency, precision and energy saving, which greatly improves production efficiency and quality.
The stud and track machine is driven by a hydraulic system and presses steel plates into keels of various shapes through molds. Its main working principle is to use a mold to stamp the steel plate and deform it into the required shape. After a series of operations and adjustments, a high-precision and high-quality keel product is finally generated.
Stud And Track Machine
Specification
No. |
Number |
Stud And Track Machine |
| 1. | Suitable to process |
Color alu zinc steel coils |
| 2. | Transfer method | Gear transmission |
| 3. | Base frame | Type 300 Channel Steel Frame Welding Panel thickness 2mm, Q235 iron plate material (gantry milling plane processing) |
| 4 | Main frame | Square steel frame |
| 5. | Dimensions | 7*1.2*1.6m |
| 6. | Board size |
Memorial arch, thickness 35 mm (double bearings on front and rear arches) |
| 7. | Weight | About 3.5t |
| 8. | Produce speed | 45-60m/min |
| 9. | Engine power | 5.5Kw, the motor includes a type K reducer |
| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 0.4-1.2mm |
| 12. | Cutting shape | Servo track cutting system 2.3kw servo motor power Platform track cut 30×30, ball screw diameter 3mm |
| 13. | Roller diameter | Φ50mm |
| 14. | Spacer | Φ70mm |
| 15. | Control system | PLC control ( Delta ) |
| 16. | Touch screen | Delta |
| 17. | Rolling stock | Cr12 steel bearing |
| 18. | Rows | 14 |
| 19. | Length tolerance | ±2mm |
| 20. | Voltage |
380v 50hz 3p or as customers ' requirement |
Features
1. Cutting function: The stud and track machine can cut keel materials conveniently and quickly, without requiring a lot of time and labor costs required by traditional manual cutting, and improving production efficiency.
2. Pressing function: The stud and track machine can press the flat light steel material into the required model and angle, ensuring the accuracy and consistency of the material, making the keels more closely connected, and improving the overall structural strength.
3. Bending function: The stud and track machine can bend the flat light steel keel material according to the required angle and length, and the processed products can be used as needed.
