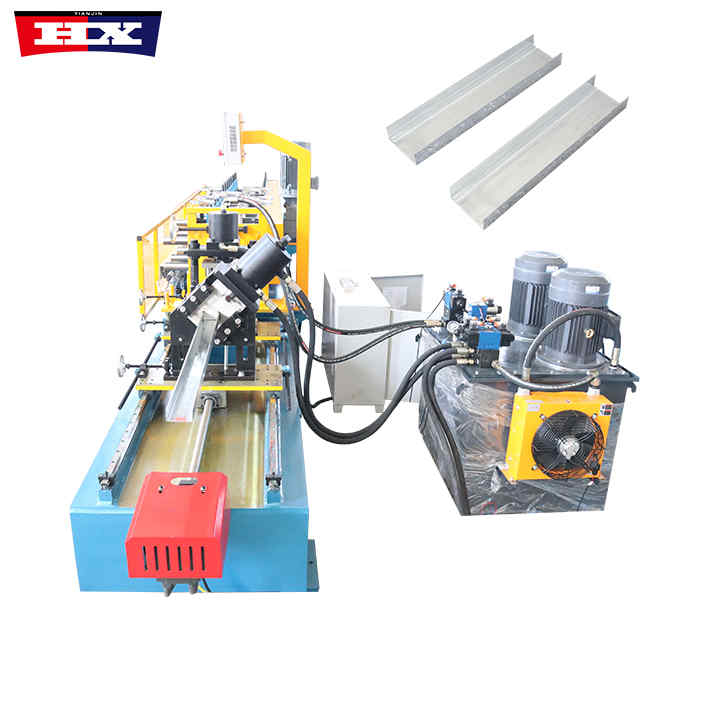

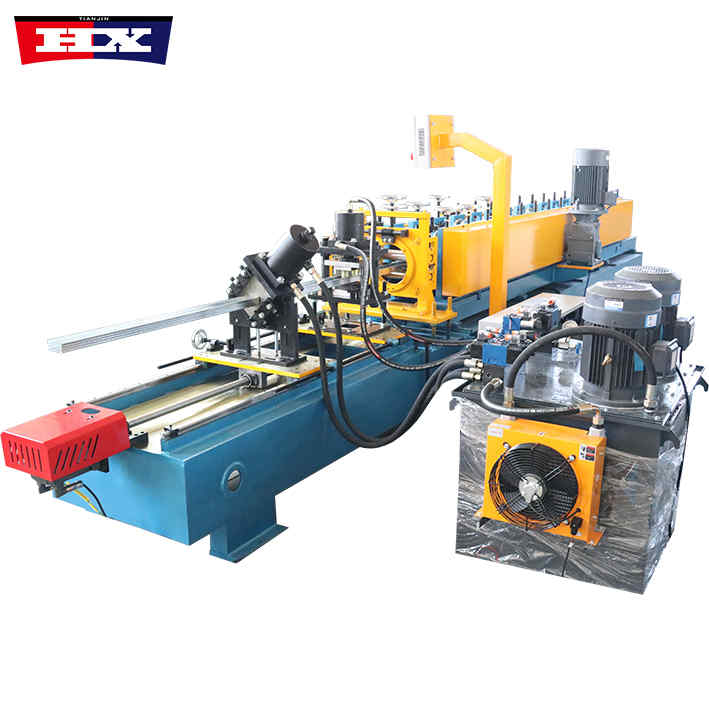

Stud And Track Forming Machine
Stud And Track Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.4-1.2mm
Produce Speed : 45-60m/min
Port : Tianjin

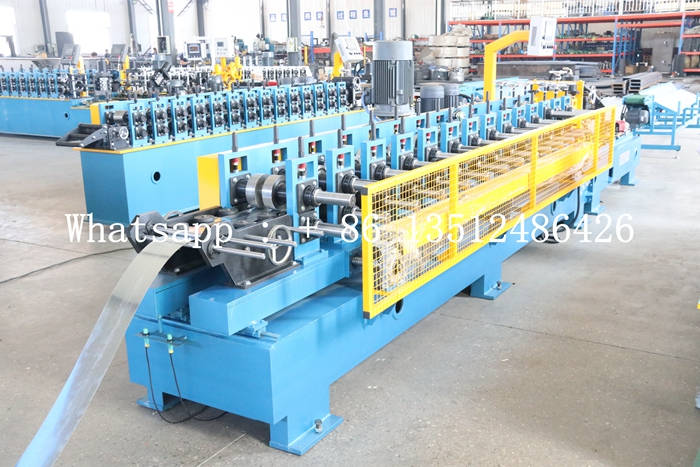

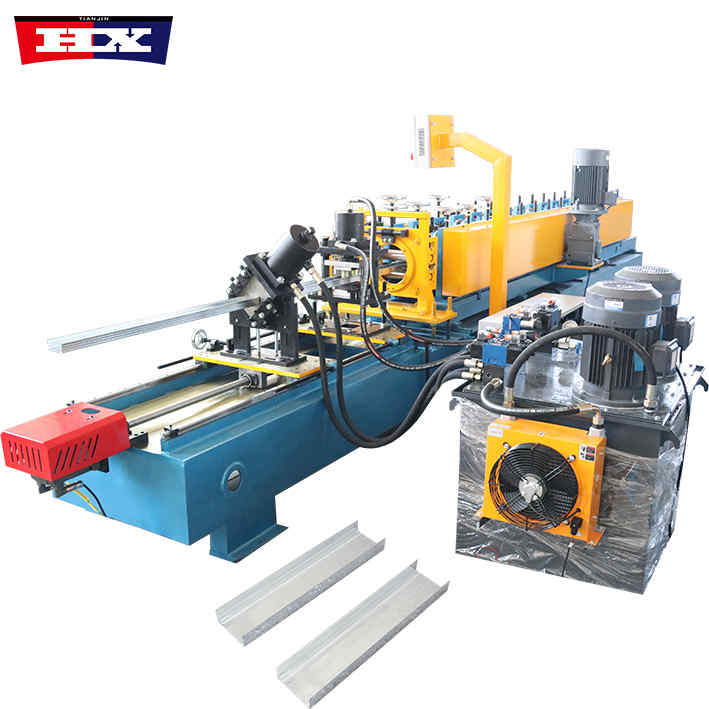

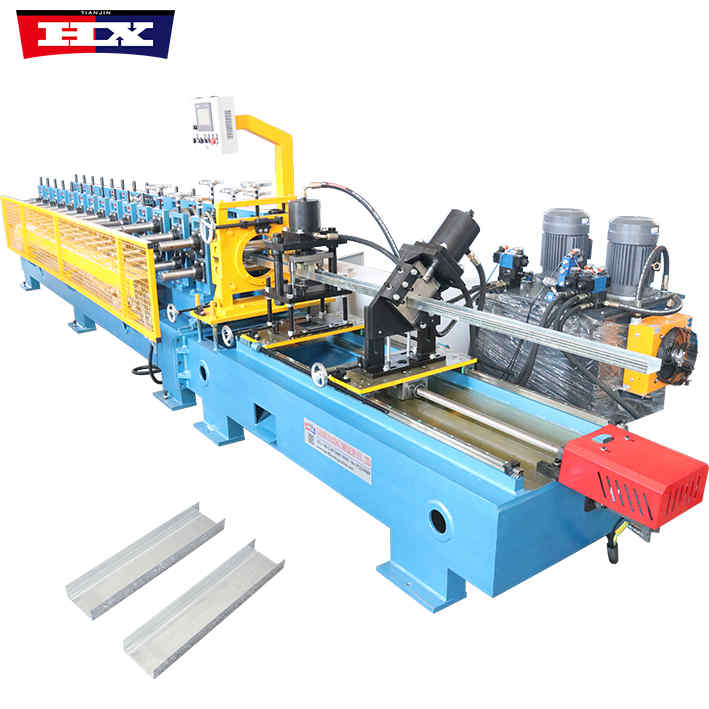

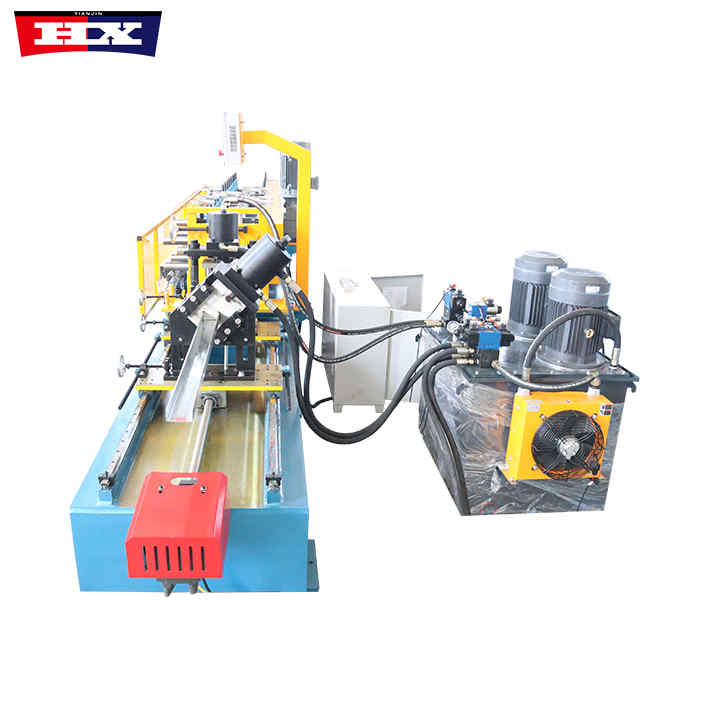

Stud And Track Forming Machine
Stud And Track Forming Machine

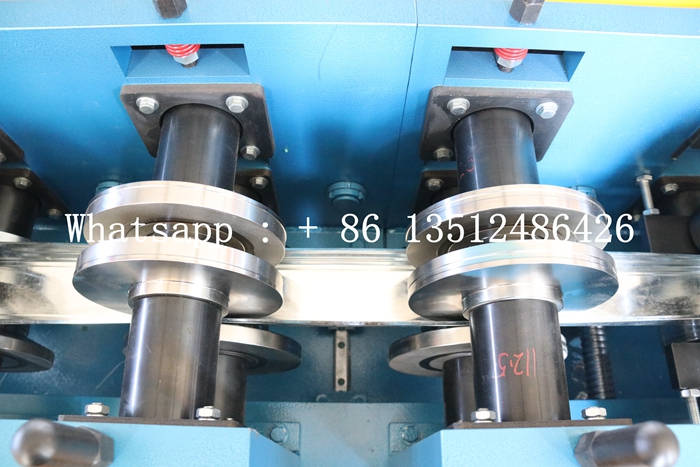

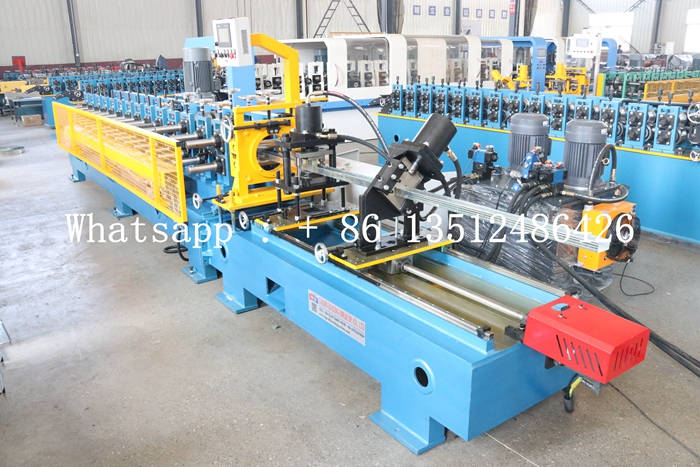

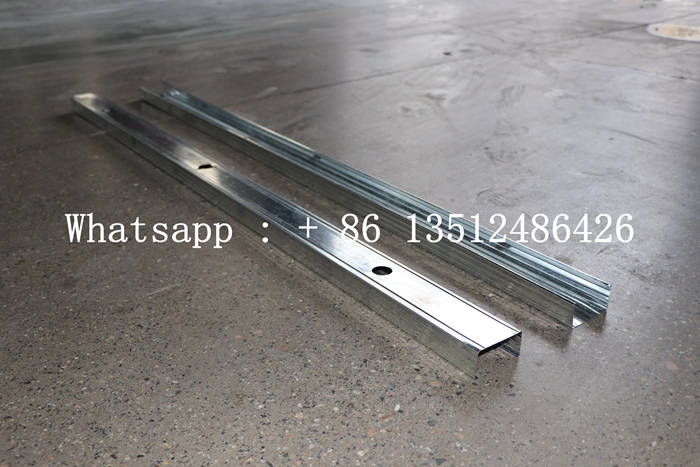

The composition and processing technology of the stud and track forming machine. The stud and track forming machine is composed of a discharge machine, a guide frame, a forming host, a correction device, a fixed-length cutting part, a receiving table, and an electrical control part. The keel machine uses strip steel as raw material and is formed by continuous cold rolling to produce complex cross-section profiles and cold bending and baking equipment of different specifications. It is controlled by PLC. The processing technology of the keel machine: unloading----straightening----roller forming----cutting----receiving.
1. Keel production requires extremely high accuracy in the relative position of cross-sectional dimensions and features. Switching between different specifications to ensure accuracy over a long period of time is a huge test not only for the design level, manufacturing process, quality control capabilities, and after-sales level. , we have successfully achieved the complex production of multi-specification automatic changeover, multi-specification shearing, material adaptation, and plate thickness application while ensuring the high precision of the product.
2. The process of mold change involves multiple processes such as molding change, mold change, tool adaptation, plate thickness adjustment, etc. The accuracy of the change also saves more adaptation materials.
Stud And Track Forming Machine
Specification
No. |
Number |
Stud And Track Forming Machine |
| 1. | Suitable to process |
Color alu zinc steel coils |
| 2. | Transfer method | Gear transmission |
| 3. | Base frame | Type 300 Channel Steel Frame Welding Panel thickness 2mm, Q235 iron plate material (gantry milling plane processing) |
| 4 | Main frame | Square steel frame |
| 5. | Dimensions | 7*1.2*1.6m |
| 6. | Board size |
Memorial arch, thickness 35 mm (double bearings on front and rear arches) |

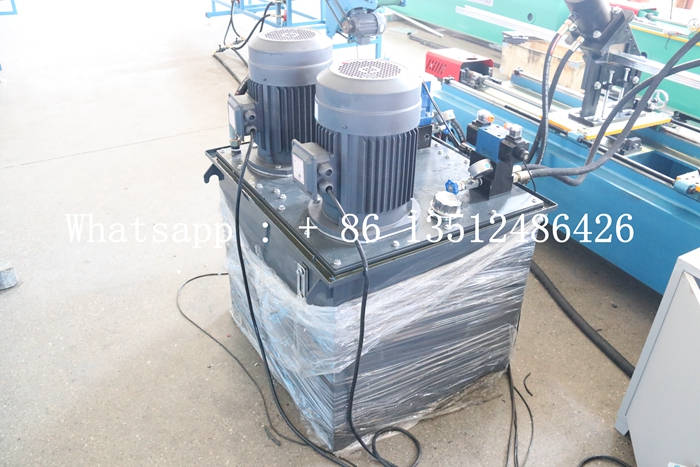

| 7. | Weight | About 3.5t |
| 8. | Produce speed | 45-60m/min |
| 9. | Engine power | 5.5Kw, the motor includes a type K reducer |
| 10. | Pump station engine | 5.5kw |
| 11. | Thickness of plate | 0.4-1.2mm |
| 12. | Cutting shape | Servo track cutting system 2.3kw servo motor power Platform track cut 30×30, ball screw diameter 3mm |
| 13. | Roller diameter | Φ50mm |
| 14. | Spacer | Φ70mm |
| 15. | Control system | PLC control ( Delta ) |
| 16. | Touch screen | Delta |
| 17. | Rolling stock | Cr12 steel bearing |
| 18. | Rows | 14 |
| 19. | Length tolerance | ±2mm |
| 20. | Voltage |
380v 50hz 3p or as customers ' requirement |
Advantages
1. The stud and track forming machine has better bending ability, the machine has high production efficiency and can manufacture the keel structure to the greatest extent.
2. They have maximum security measures. The stud and track forming machine is small in size, takes up little space, is easy and simple to move, and will not cause deformation or safety hazards after long-term use.
3. Has extremely high hardness. The molds of the stud and track forming machine are all customized with special materials and have very special performance and quality.
