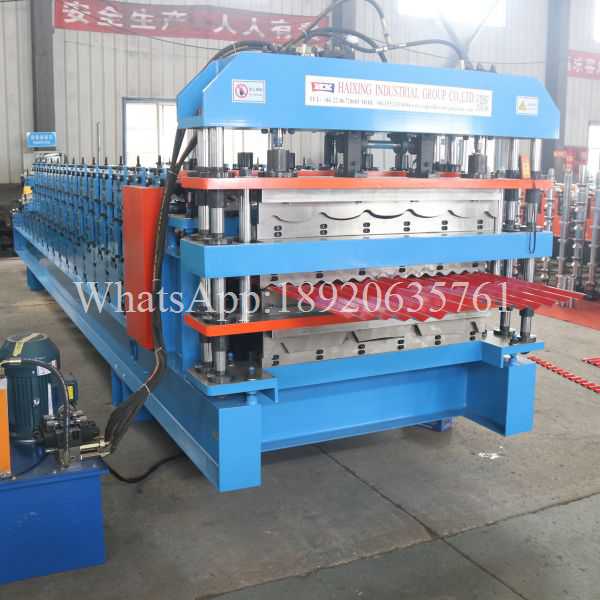

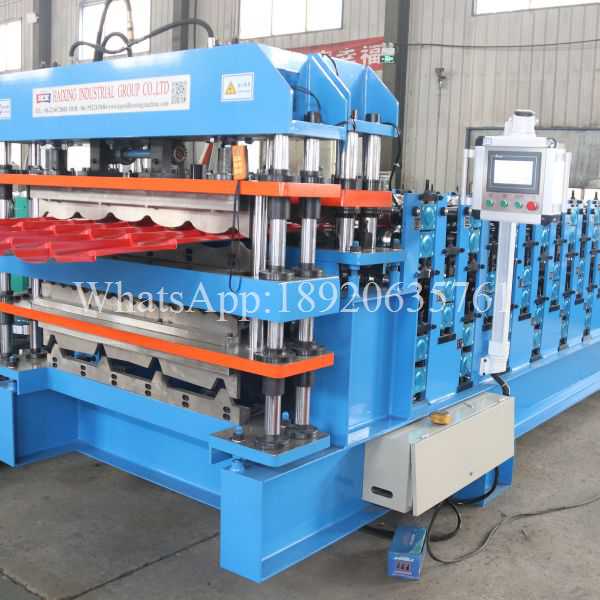

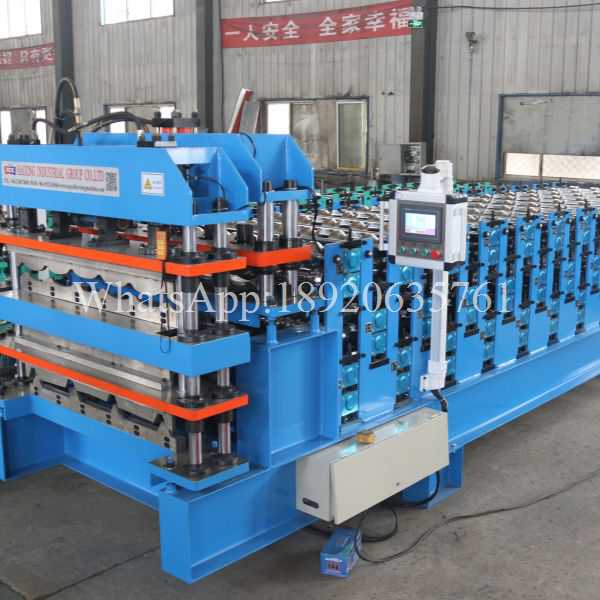

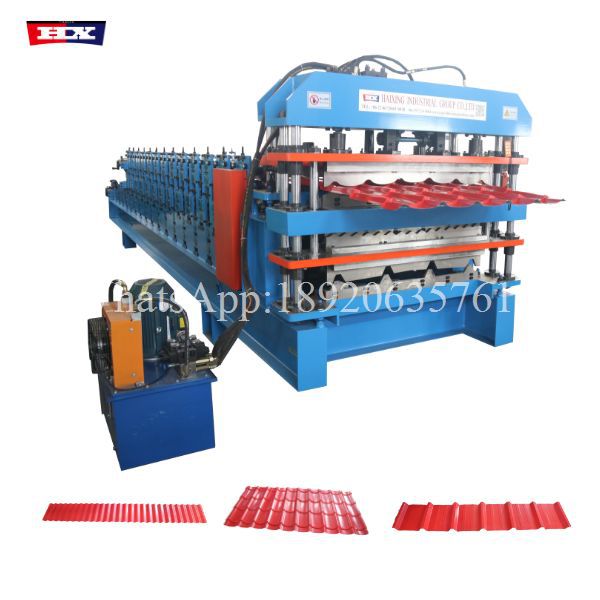

three layer metal roof forming machine for sale
Voltage: 380V 50Hz 3P can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time: 40 days
Thickness: 0.3-0.8mm
Produce Speed: 10-15m/min
Port: Tianjin
Dominate Production: Invest in Our Advanced Three Layer Metal Roof Forming Machine
Struggling to meet demand for energy-efficient, high-performance roofing? Competing in the premium roofing market requires next-level technology. Our three layer metal roof forming machine for sale unlocks the future of sustainable building – producing superior insulated aluminium panels in a single automated line. Transform your capabilities and capture high-value contracts with cutting-edge engineering designed for excellence.
Specification
| Number | three layer metal roof forming machine for sale |
| Automatic | |
| Raw materials | PPGI |
| Structure | 350H Beam |
| Middle side | 18mm |

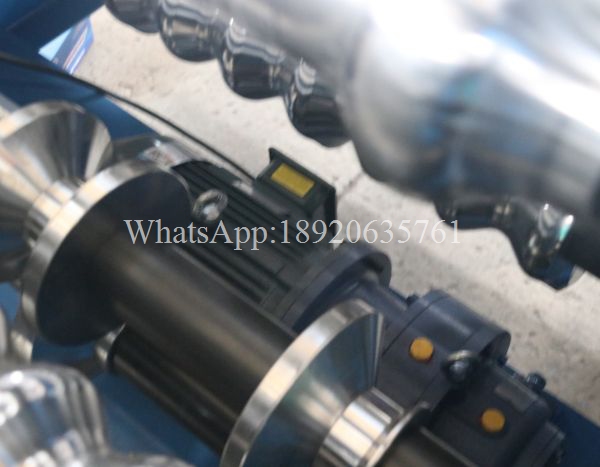

| Main motor | 5.5kw |

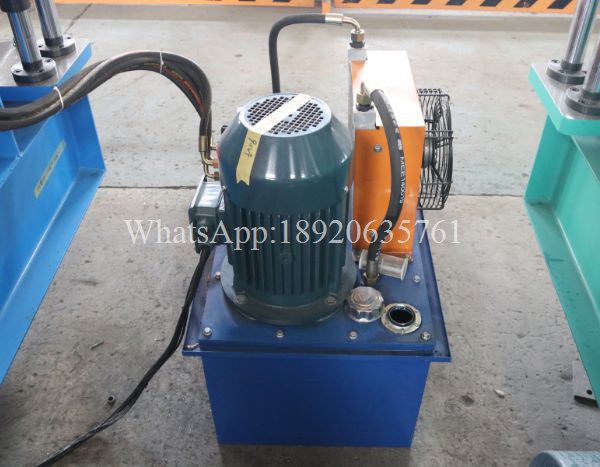

| Pump station | 5.5kw |
| Cutting type | Hydraulic cutting |
| Produce speed | 10-15m/min |
| Chain | 1 inch |
| Shaft material | Cr12MoV |
| Brand of electrical control cabinet | Delta or customized according to customer requirements |
| Touch screen/inverter | Delta or customized according to customer requirements |
| Rolling materials | Forged 45# steel with chrome plate |
| Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

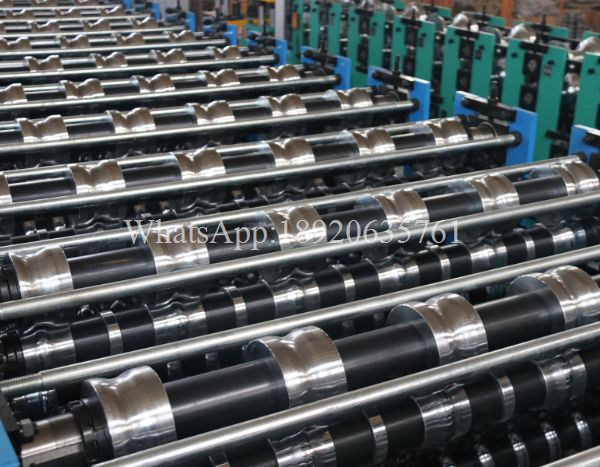

| Roller diameter | Φ70mm |
| Voltage | 380v 50hz 3p be customized |
| Thickness | 0.3-0.8mm |
| Feeding width | 1220mm |
| Rows |
18+13+13 |
| Size |
9400*1800*2000mm |
| Weight |
12000kg |
How Our metal roof forming machine for sale Works (Simplified):
Material Loading: Large aluminium coils are effortlessly loaded onto the decoiler.

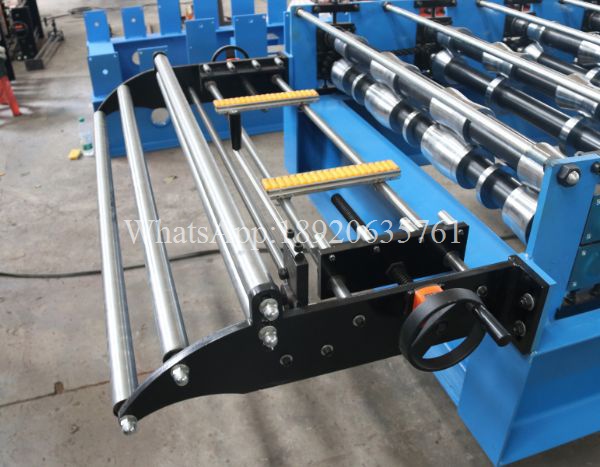

Precision Feeding & Leveling: The material is smoothly fed into the leveling unit, ensuring perfectly flat aluminium enters the forming section, crucial for flawless end products.

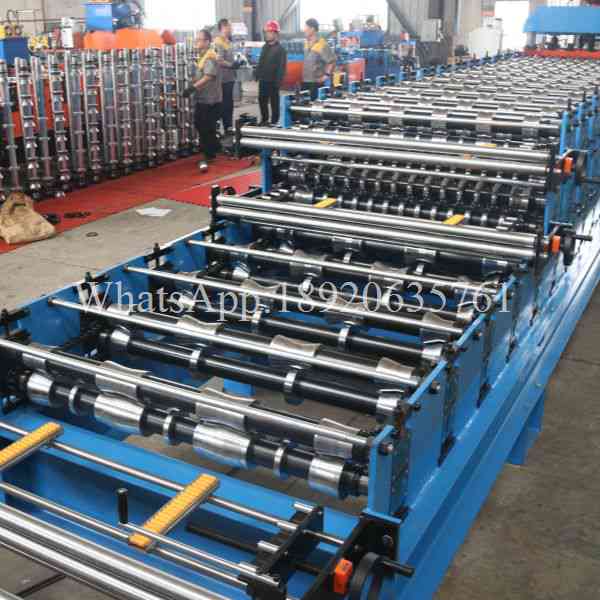

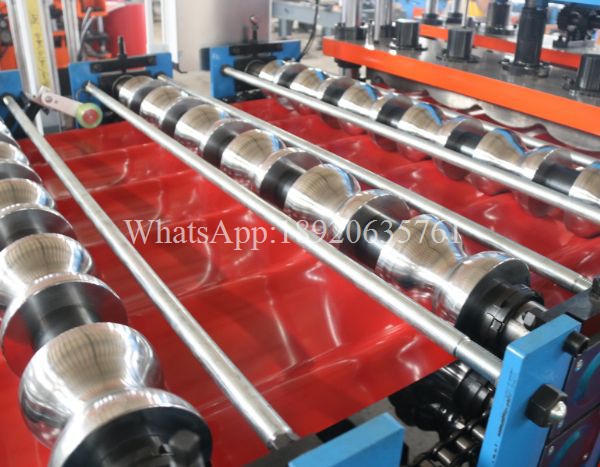

The Core "Three Layer" Forming: The heart of the machine. The aluminium strip passes sequentially through three distinct, precisely aligned forming stations:
Layer 1: Initial shaping begins, establishing the core profile geometry.
Layer 2: The profile is progressively refined and deepened, building structural integrity.

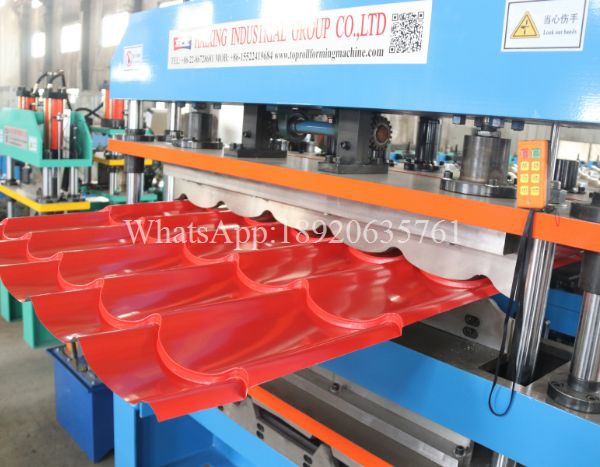

Layer 3: Final calibration and locking-in of the exact profile shape (Glazed Tile, Trapezoidal, or Corrugated) occurs, achieving the signature strength and crisp definition. This multi-stage process is key to the sheet's superior performance.
Automatic Cutting: Hydraulic or servo-controlled cutting systems accurately cut the continuously formed sheet to the pre-set customer lengths.
Effortless Stacking & Output: Finished sheets are automatically stacked neatly and ready for packaging, shipping, or direct installation.
Our photos with our customers
WHY CHOOSE US?
about us
We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We cooperating with 150+ countries & 5,000+ Partners.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for a three layer metal roof forming machine for sale. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the three layer metal roof forming machine for sale can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
