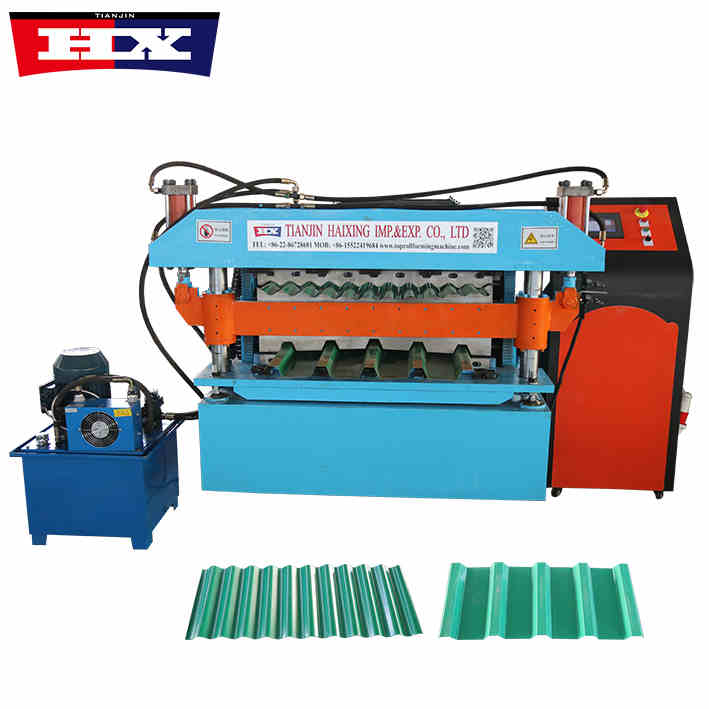

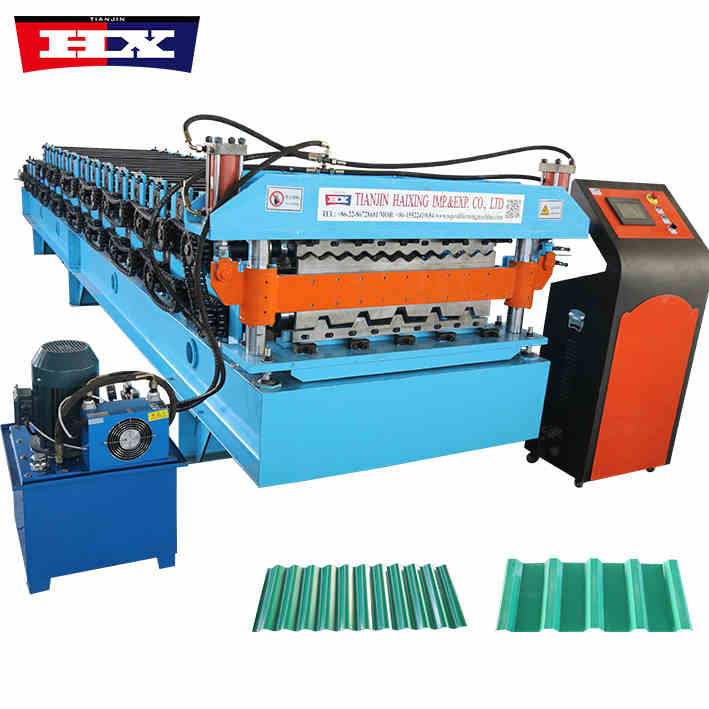

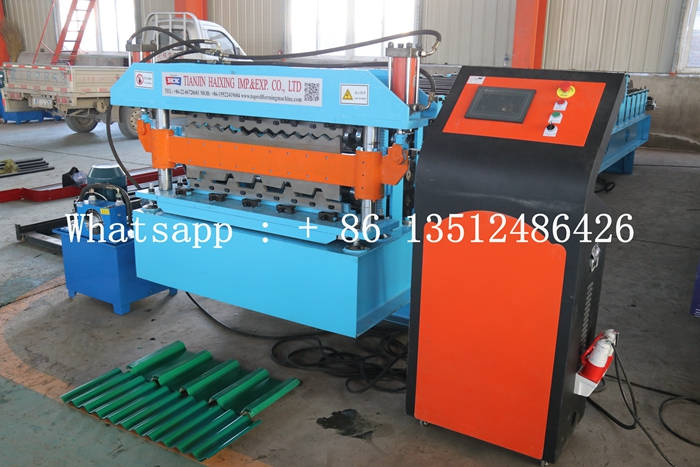

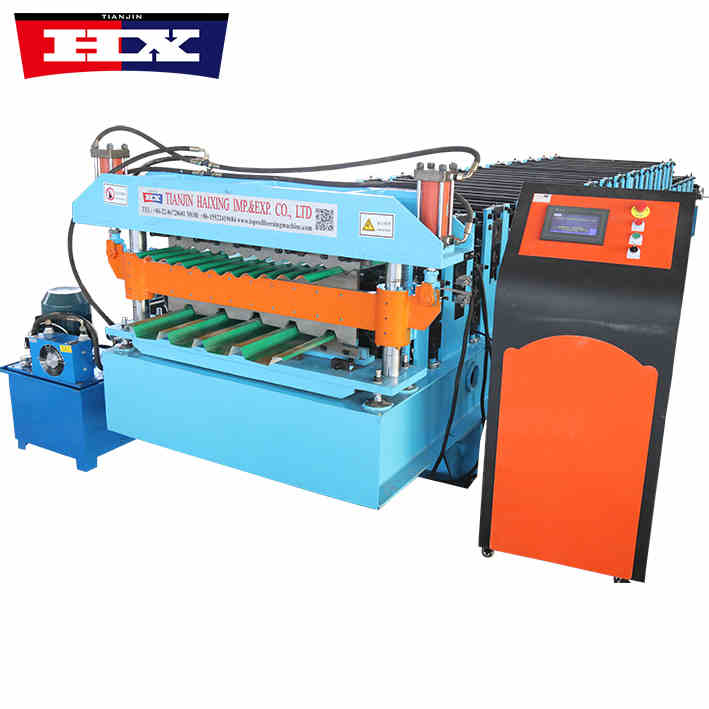

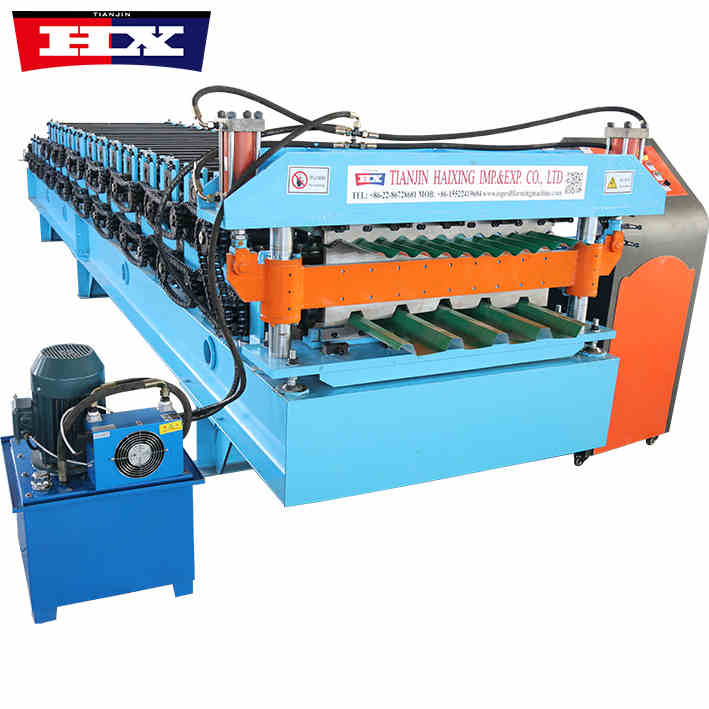

Metal Double Layer Roll Forming Machine Corrugated
Metal Double Layer Roll Forming Machine Corrugated
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin
Metal Double Layer Roll Forming Machine Corrugated
Metal Double Layer Roll Forming Machine Corrugated

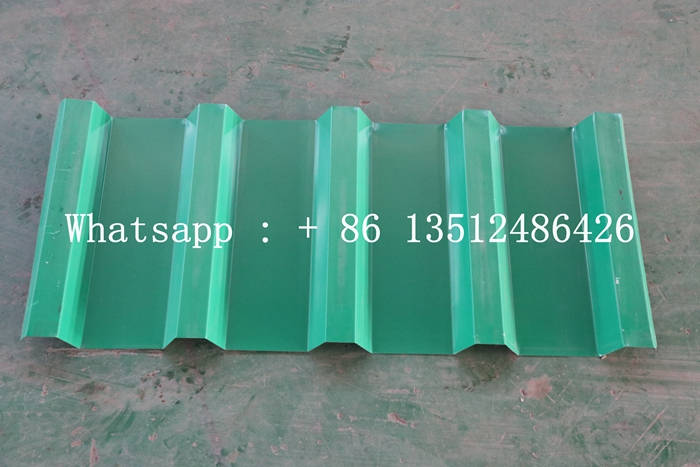

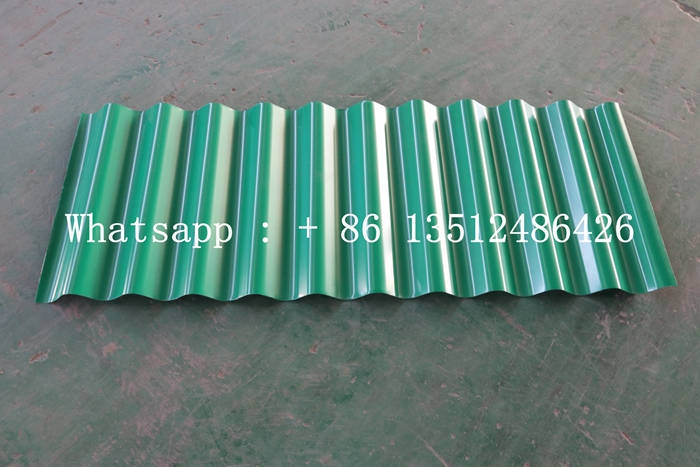

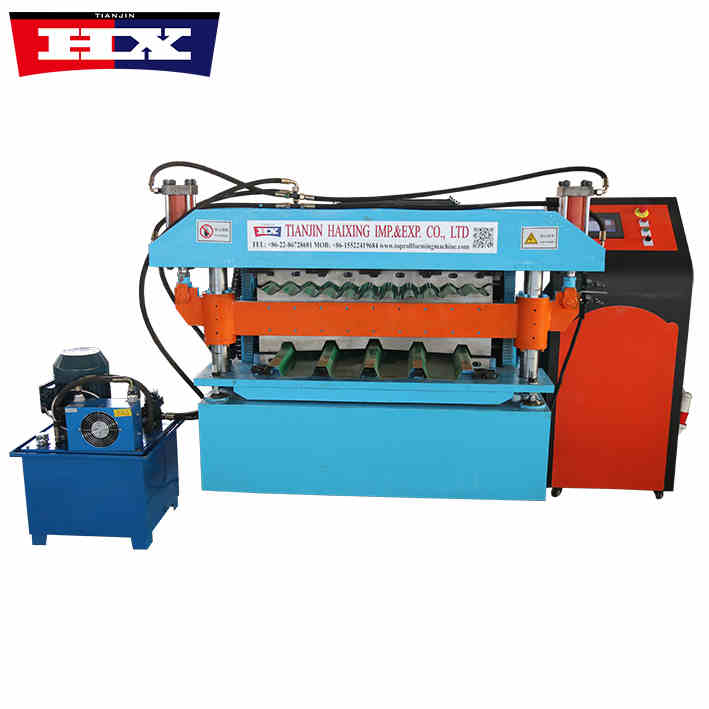

The metal double layer roll forming machine corrugated is a commonly used construction equipment, mainly used to process metal materials and produce profiled panels of various shapes. In the construction industry, profiled panels are widely used as roof and wall covering materials.
The metal double layer roll forming machine corrugated is an advanced color steel tile production equipment that can press two layers of color steel tiles together to make them have higher strength and longer service life.

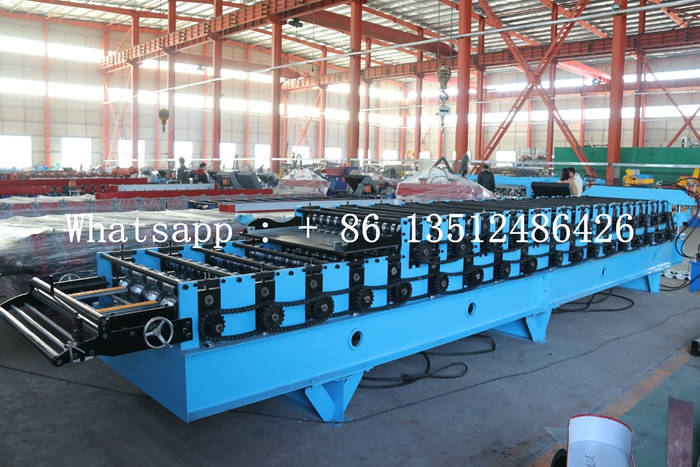

Metal Double Layer Roll Forming Machine Corrugated
Specification
No. |
Number |
Metal Double Layer Roll Forming Machine Corrugated |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows |
18 13 |
| 19. | Size | 9000mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Advantages
1. Improve strength and lifespan
The biggest advantage of the double-layer tile press is that it can significantly improve the strength and life of the color steel tiles. By pressing two layers of color steel tiles together, the double-layer tile press can increase the thickness and weight of the tiles, thereby improving the pressure resistance, wind resistance, corrosion resistance and other properties of the color steel tiles. This increased strength and longevity can greatly reduce the frequency of replacement and maintenance costs of color steel tiles.
2. High efficiency and energy saving
The double-layer tile press also has the advantage of high efficiency and energy saving. Because the double-layer tile press uses advanced hydraulic technology and high-strength materials, it can produce high-quality color steel tiles at faster speeds and with higher efficiency. This efficient production method can reduce production costs and improve production efficiency, while also reducing energy consumption and carbon emissions.
3. Wide scope of application
The double-layer tile press has a very wide range of applications. It can be applied to various color steel tiles of different materials and thicknesses, making it have a wider range of applications. For example, the double-layer tile press can be used to produce various types of color steel tiles for construction, color steel tiles for automobiles, color steel tiles for home appliances, etc. In addition, the double-layer tile press can also be applied to a variety of different working environments and climate conditions, and has very high adaptability.
