Revolutionizing Modern Construction: The Power of the 3.0'' Composite Steel Floor Decking Roll Forming Machine

The relentless drive for efficiency, strength, and cost-effectiveness in modern construction has propelled specialized machinery to the forefront. Among these technological marvels, the 3.0'' composite steel floor decking roll forming machine stands as a critical enabler, transforming raw steel coil into the essential structural component known as composite steel floor decking. This highly automated system streamlines production, ensuring consistent quality and meeting the demanding specifications required for contemporary multi-story buildings, industrial facilities, and commercial structures.

Specification

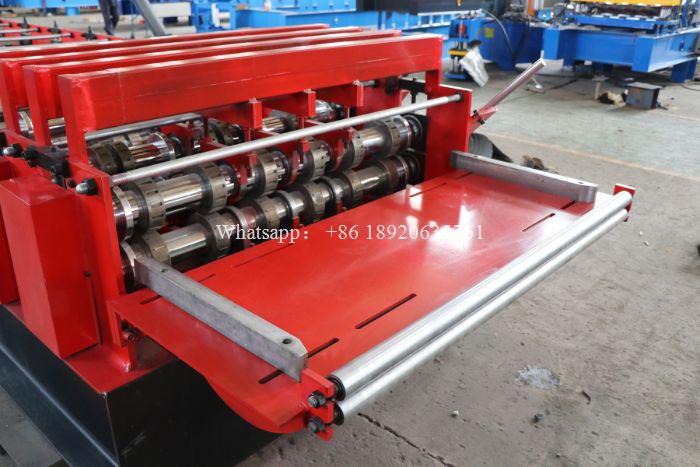

The journey within a 3.0'' composite steel floor decking roll forming machine begins with the Uncoiling stage. A substantial coil of pre-galvanized or painted steel, typically ranging from 0.8mm to 1.5mm in thickness, is mounted onto a powered mandrel. Sophisticated tension control systems, often incorporating accumulators or servo-driven brakes, ensure a smooth, continuous, and jerk-free feed of material into the production line. This consistent supply is fundamental to maintaining dimensional accuracy and preventing material stress throughout the forming process.

Immediately following uncoiling, the steel strip enters the Leveling (or Flattening) stage. Despite originating from a coil, the material retains inherent curvature and minor surface irregularities (coil set, crossbow, edge wave). Passing through a series of precision-engineered leveling rolls, strategically arranged in opposing configurations, the sheet metal undergoes controlled flexing. This meticulously calibrated process effectively eliminates these imperfections, resulting in a perfectly flat strip. This crucial step is non-negotiable for the 3.0'' composite steel floor decking roll forming machine, as any residual curvature would lead to significant forming defects, profile distortion, and compromised final product quality in the critical decking profile.

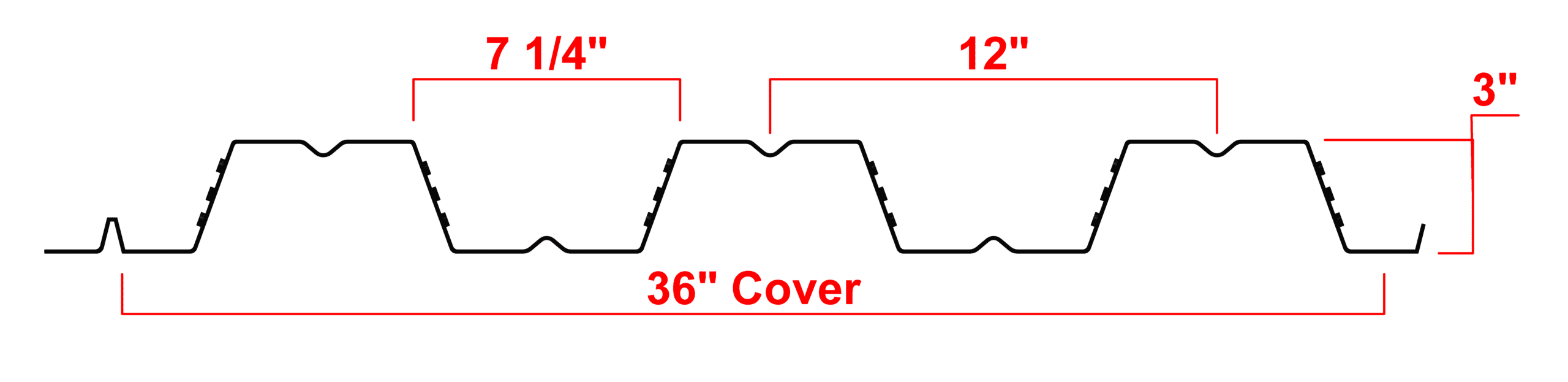

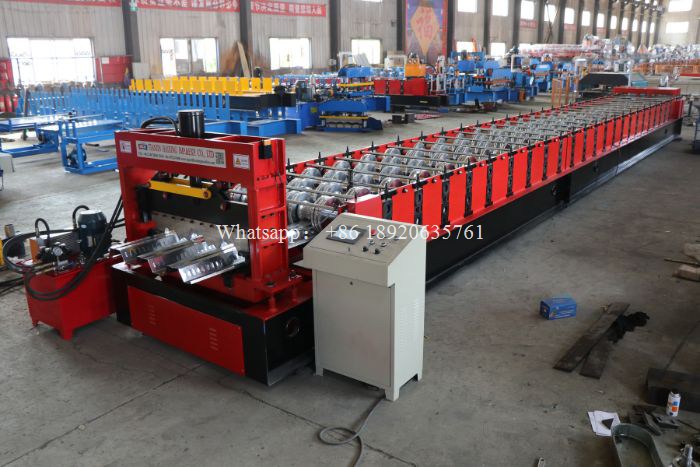

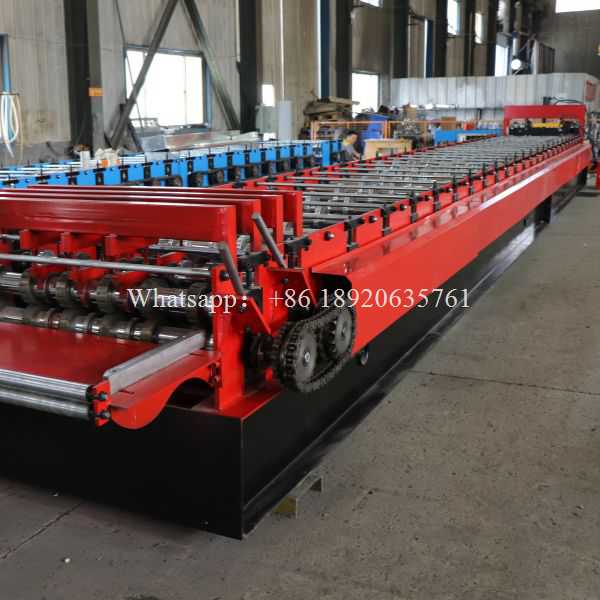

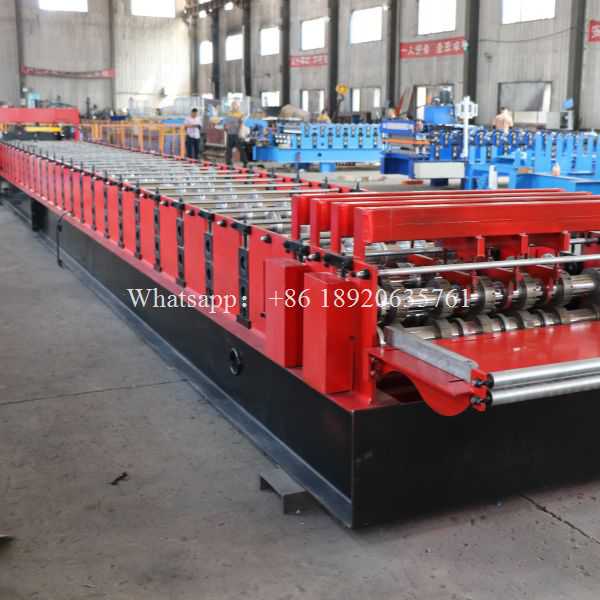

The heart of the 3.0'' composite steel floor decking roll forming machine lies in the Roll Forming section. This is where the flat steel strip undergoes its metamorphosis into the characteristic 3.0-inch deep trapezoidal profile. The strip progresses sequentially through a precisely designed set of roll stations (often 24-26 pairs or more for complex deck profiles). Each station features hardened steel upper and lower rolls, machined to exacting tolerances. These rolls incrementally bend the steel through small, controlled angles at specific points along its width. For a 3.0'' composite steel floor decking roll forming machine, the profile complexity demands a sophisticated roll design sequence to form the major ribs, intermediate stiffeners, embossments (crucial for composite bond), and the critical edge details (like male/female sidelaps) with exceptional accuracy. High-precision bearings, robust frames, and often servo-driven individual roll stations guarantee the dimensional consistency required for seamless on-site installation and composite action.

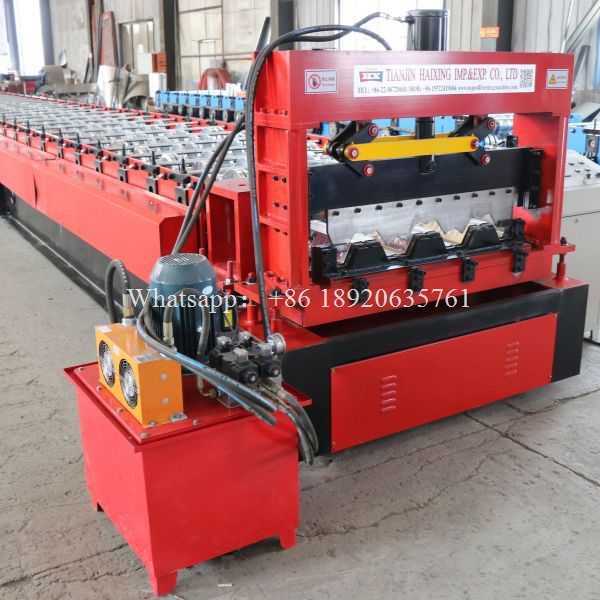

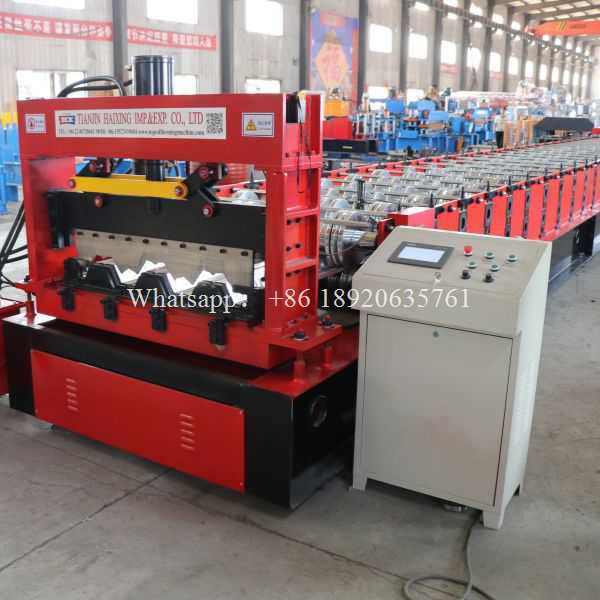

Once the full 3.0-inch depth profile is perfectly formed along the entire length of the continuous strip, the Cutting stage comes into play. 3.0'' composite steel floor decking roll forming machines predominantly employ high-speed, computer-controlled Flying Cutoff systems. A cutting mechanism (hydraulic shear or high-speed saw) moves precisely in sync with the continuously advancing deck profile. At the programmed length, determined by the project's shop drawings fed into the machine's PLC, the cutter engages with perfect synchronization, delivering a clean, burr-free, square cut without stopping the line. This servo-electric synchronization is vital for maintaining high production speeds (often 8-15 meters per minute) and achieving the precise lengths (±1.0mm tolerance is common) essential for efficient construction. The cut deck panel is then conveyed smoothly out of the machine path, ready for stacking, bundling, and shipment.

The significance of the 3.0'' composite steel floor decking roll forming machine extends far beyond simple fabrication:

Structural Efficiency: It produces decking specifically designed to act integrally with poured concrete, creating lightweight yet incredibly strong composite floor systems that reduce the need for supporting beams and columns, enabling longer spans.

Speed of Construction: Prefabricated decking serves as permanent formwork, accelerating floor assembly dramatically compared to traditional methods.

Cost Savings: Reduced structural steel tonnage, faster erection times, and minimized on-site labor translate to significant project cost reductions.

Consistency & Quality: Automated production guarantees every panel meets identical high standards of dimensional accuracy, profile geometry, and surface integrity, ensuring predictable structural performance and ease of installation.

Design Flexibility: Machines can be tooled for various rib patterns, embossment styles, and edge details within the 3.0-inch depth standard, catering to diverse engineering requirements. Operators of the 3.0'' composite steel floor decking roll forming machine can quickly adapt to these variations.

Reduced Waste: Precise control over cutting lengths minimizes material waste. The efficiency of the 3.0'' composite steel floor decking roll forming machine is a key factor in sustainable construction practices.

Our photos with our customers

WHY CHOOSE US?

about us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a 3.0'' composite steel floor decking roll forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the 3.0'' composite steel floor decking roll forming machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
