The Comprehensive Guide to the Deck Roll Forming Machine: Engineered for Efficiency and Precision

In the world of modern construction and industrial manufacturing, the demand for efficient, high-strength building components is ever-present. At the heart of producing one such critical component—metal floor decking—lies a sophisticated piece of equipment: the Deck Roll Forming Machine. This machine is a marvel of engineering, designed to transform raw sheet steel into precise, consistent, and robust decking profiles through a fully automated and continuous process. Its role is indispensable in fabricating the structural elements that form the floors and roofs of commercial buildings, industrial facilities, and high-rise towers.

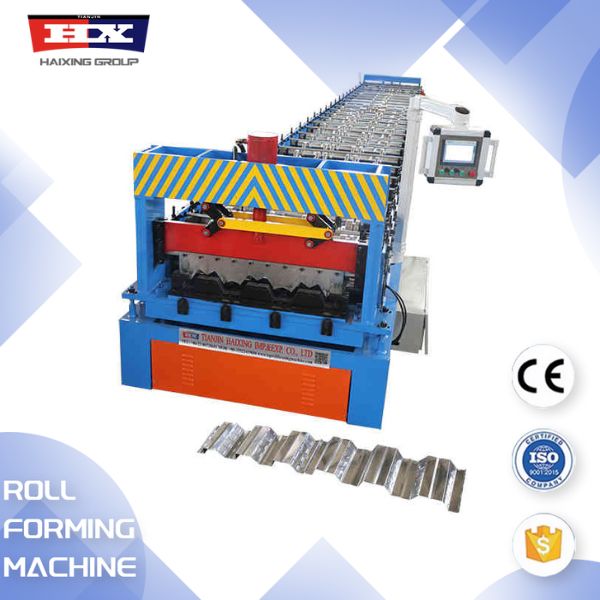

Deck Roll Forming Machine

Specification

Workflow

The operation of a Deck Roll Forming Machine is a symphony of coordinated stages, each critical to the final product's quality. The process begins with uncoiling. A heavy coil of sheet steel, typically ranging in thickness from 0.8mm to 1.5mm, is mounted onto a decoiler. This component carefully unwinds the metal, feeding it into the production line while maintaining consistent tension. This is a crucial first step, as any irregularity in feed can lead to defects later in the process. Modern decoilers are often equipped with automatic edge guidance systems to ensure the material enters the next stage perfectly aligned.

The flat steel strip then proceeds to the leveling stage. During storage and transit, coils can develop slight curls, bends, or internal stresses. To ensure a perfectly flat and uniform sheet, the material passes through a leveling machine. This unit consists of a series of hardened steel rollers that apply precise pressure to cold-work the metal, eliminating any imperfections and residual stresses. Flattening the material is not merely a preparatory step; it is fundamental to achieving a flawless final profile with consistent dimensions and structural integrity. Without proper leveling, the subsequent forming process would be compromised.

The core of the entire system is the roll forming station itself. This is where the magic happens. The leveled steel strip is guided through a series of tandem stands, each equipped with a set of meticulously engineered roller dies. Each stand incrementally bends the metal until it achieves the desired complex cross-sectional shape—whether it's a trapezoidal, dovetail, or re-entrant profile. The design of a Deck Roll Forming Machine allows for incredible versatility. By changing the configuration of these roller dies, the same machine can be quickly adapted to produce a wide variety of decking profiles and dimensions, making it a highly flexible asset for any manufacturer. This cold-forming process is exceptionally efficient, generating minimal waste and preserving the metal's inherent strength properties.

Once the continuous decking panel is formed, it moves to the cutting station. This is typically a flying cut-off system synchronized with the speed of the moving profile. A hydraulic or servo-driven shear travels alongside the decking, making a clean, burr-free cut to the pre-programmed length without stopping the production line. This non-stop operation is key to the machine's high output rates. The cut-to-length panels are then conveyed to a stacking station, where they are automatically piled for strapping, packaging, and shipment.

Our photos with our customers

WHY CHOOSE US?

About us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

F&Q

                             1.Q: What is the after- sale service?

                                A: we will supply lifetime technical support and supply quick-wear parts within 2years.

                             2.Q: Any other service?

                                A: We can help you purchase raw material for machine, help you check ship date etc.

                             3.Q: Any certification?

                                A: Yes, we have CE TUV BV certification.

                             4.Q: How do your machines compare with other big companies in this market?

                                A: our factory machine only export, quality and standard are conform to world-standard, and we have good

                                    manufacture-experience for different country demands.

                             5.Q: Will you deliver the right goods as ordered? How can I trust you?

                                A: Yes, of course, reputation is our company’s life, our factory owned alibaba golden-diamond supplier、SGS certificate

                                    and CE certificate.

                             6.Q: How to visit your company?

                                A.Fly to Tianjin airport, we pick up you.

                             7.Q: How can we be assured that you will deliver us quality machine with spare parts?

                                A: welcome visit our factory at any time, check all our raw material、worker quality、factory feeling etc.
