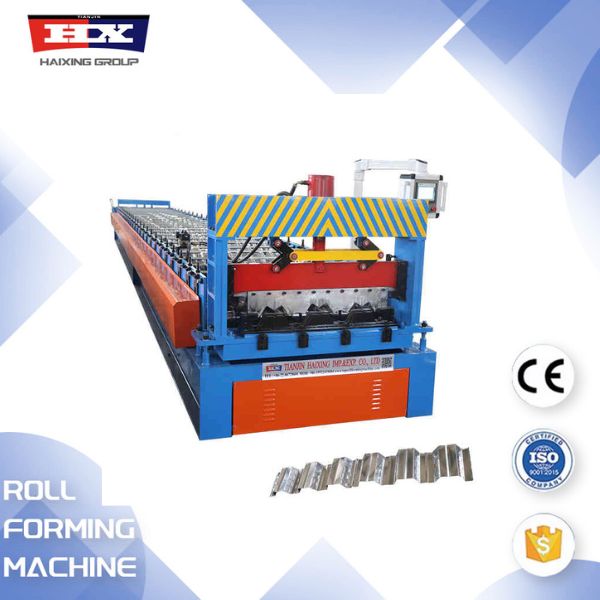

Floor Deck Roll Forming Machine 915 deck
Floor Deck Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin
Metal Deck Forming Machine
Floor deck is formed by cold-rolling steel plates (Cold Roll Forming is a multi-pass forming roller configured in sequence, which continuously rolls coils, strips and other metal plates). A plastic processing process that bends the ground laterally to make a specific cross-section profile), whose cross-section forms a V-shape, U-shape, trapezoid or similar shapes, mainly used for floors.
Metal Deck Forming Machine: Decoiler→Feeding table→Roll Forming→Cutting→Receiving table
Specification
No. |
Number |
Metal Deck Forming Machine 915 deck |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |
| 5. | Main motor | 15kw*2 |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |
| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Sales Terms
●Payment Method
30% as deposit ,70%balance payment after inspection while before delivery.
●Production Period
About 30 Working days after the 30% deposit.
●Packing Method
Nude packing in the 40 feet container ,fixed well with oil rope, control cabinet and all the accessories with waterproof.
●Warranty:
24 months limited warranty .Components and parts are free during warranty.
Packing
a.The main body of the machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
Certificate
Photos with customers
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Metal Deck Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Metal Deck Forming Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
