The Trapezoidal Sheet Machine: Powering Efficiency in Modern Metal Fabrication

In the fast-paced world of construction and industrial manufacturing, the demand for durable, cost-effective, and quickly deployable building materials has never been higher. At the forefront of this revolution stands the Trapezoidal Sheet Machine – a powerhouse of precision engineering that transforms flat metal coils into high-strength, weather-resistant trapezoidal profile sheets. From warehouses and factories to agricultural buildings and residential roofs, this machine is the unsung hero behind millions of square meters of functional, resilient structures worldwide.

Specification

Understanding the Trapezoidal Profile

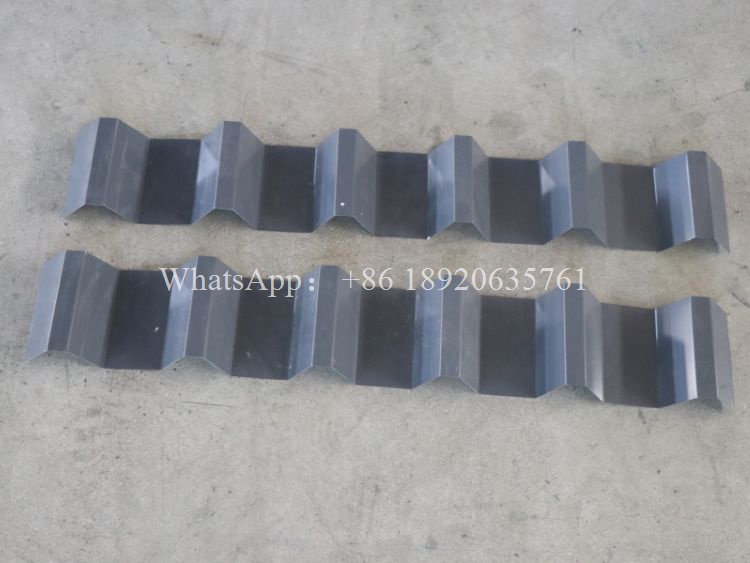

Before delving into the machine, it's crucial to grasp the profile it creates. The trapezoidal panel features a series of symmetrical, trapezoid-shaped ribs running longitudinally. Key characteristics include:

Structural Rigidity: The trapezoidal shape provides exceptional strength and spanning capability, allowing for wider purlin spacing compared to simpler corrugated profiles.

Water Shedding: The pronounced ribs and valleys efficiently channel water and snow off the roof.

Versatility: Available in a wide range of heights (rib depths), widths, and pitches (rib spacing) to suit diverse structural and aesthetic requirements.

Material Efficiency: Optimized designs maximize strength-to-weight ratio, reducing overall material usage.

Ease of Installation: Consistent profiles and standard fastening systems enable rapid installation.

How a Trapezoidal Sheet Machine Works: The Precision Process

A Trapezoidal Sheet Machine operates as a continuous cold-roll forming system. Unlike cutting or welding, it shapes metal through incremental bending, preserving material integrity. Here’s the workflow:

Coil Loading & Payoff

Heavy steel or aluminum coils (pre-painted, galvanized, or bare) are mounted on a decoiler.

Tension control ensures smooth, consistent feed into the machine.

Material Straightening

Coils naturally have curvature (“coil set”). A leveling unit flattens the metal, eliminating distortions for uniform forming.

Roll Forming: The Heart of the Machine

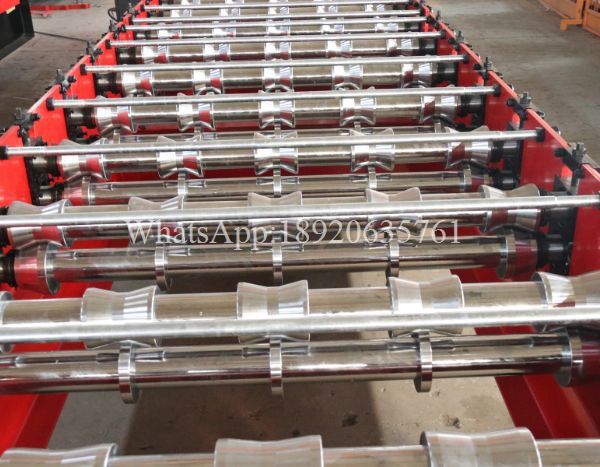

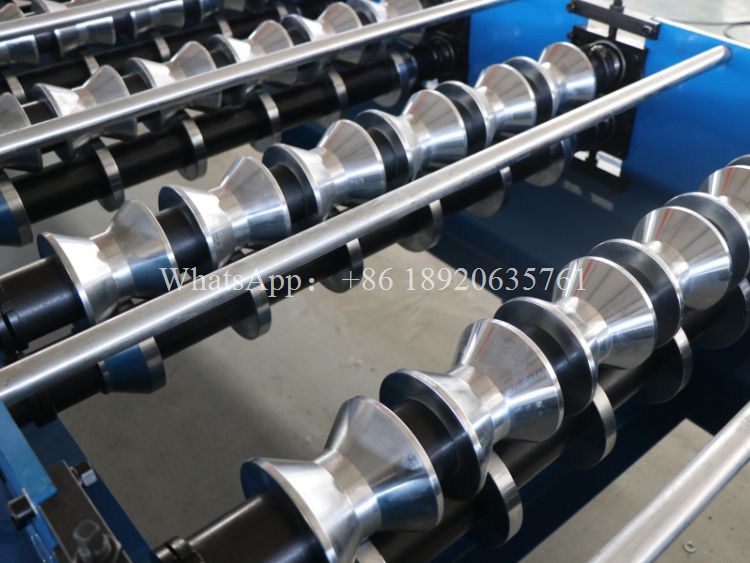

The metal strip passes through 10–24 pairs of hardened steel rolls.

Each roll station progressively bends the sheet:

Early stations create gentle curves (forming the trapezoid’s “legs”).

Mid-stations deepen the profile and define valleys.

Final stations lock in precise angles and radii.

Key Innovation: CNC-controlled depth adjustment compensates for material springback, ensuring dimensional accuracy (±0.5 mm).

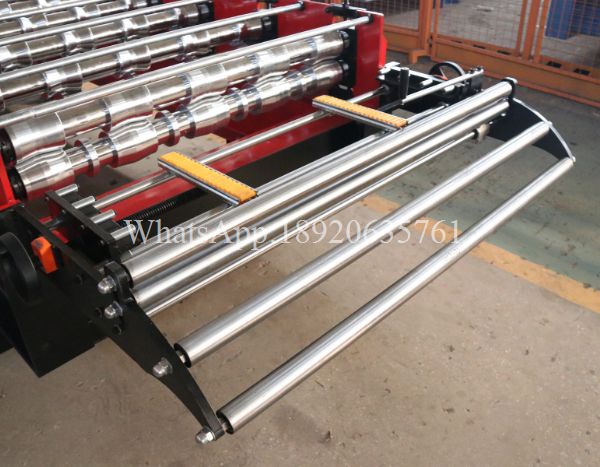

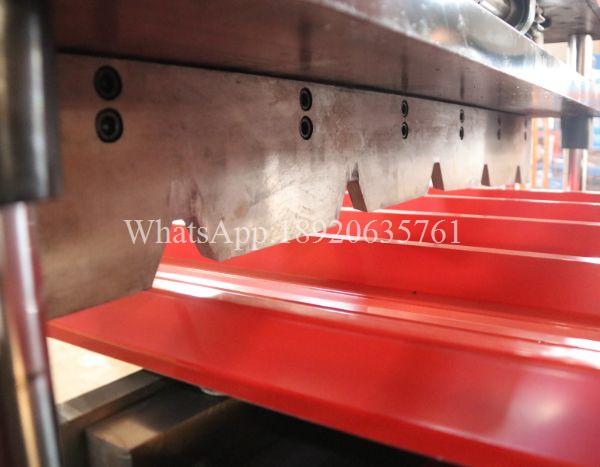

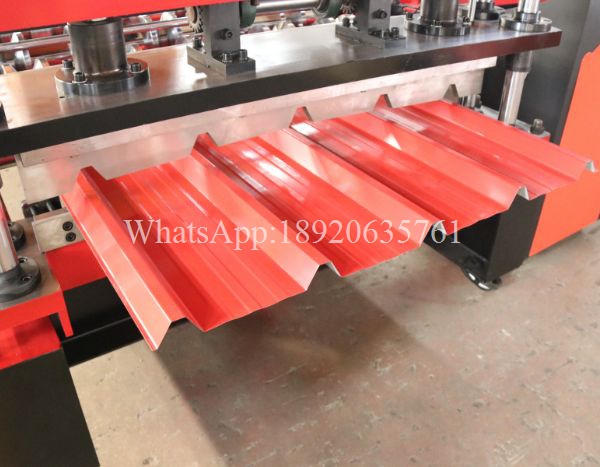

Cutting & Stacking: A flying shear cuts panels to preset lengths, which are then auto-stacked for packaging.

Finished sheets are conveyed to stacking arms.

Bundles are strapped, labeled, and ready for shipment.

Why Invest in a Trapezoidal Sheet Machine?

Blistering Production Speed:Produce 20meters of finished sheet per minute, faster than manual fabrication.Ideal for large-scale projects with tight deadlines.

Uncompromising ConsistencyEvery sheet is identical in profile, length, and geometry.

Ensures seamless installation and structural reliability.

Massive Material & Cost Savings:Near-zero scrap: Optimized coil nesting reduces waste.

Minimal labor: 1–2 operators manage the entire line.

Energy-efficient: Cold-forming consumes less power than welding or hot-rolling.

Enhanced Product Performance:Work Hardening: Cold-forming increases yield strength.

Coating Preservation: Roll-forming minimizes damage to pre-finished surfaces vs. press braking.

Enclosed cutting/shearing minimizes injury risks.

The Trapezoidal Sheet Machine is far more than a metal bender – it’s the cornerstone of efficient, scalable construction. By merging precision engineering with raw productivity, it empowers manufacturers to meet soaring global demand while slashing costs and waste. For contractors, it enables faster project turnarounds; for architects, it unlocks designs balancing aesthetics with brute-force functionality.

As urbanization accelerates and sustainable building practices gain urgency, the role of the Trapezoidal Sheet Machine will only grow. Investing in this technology isn’t just about making sheets – it’s about shaping skylines, strengthening economies, and building resilient futures. From rural farms to megacity infrastructures, the rhythmic hum of the Trapezoidal Sheet Machine echoes the sound of progress.
