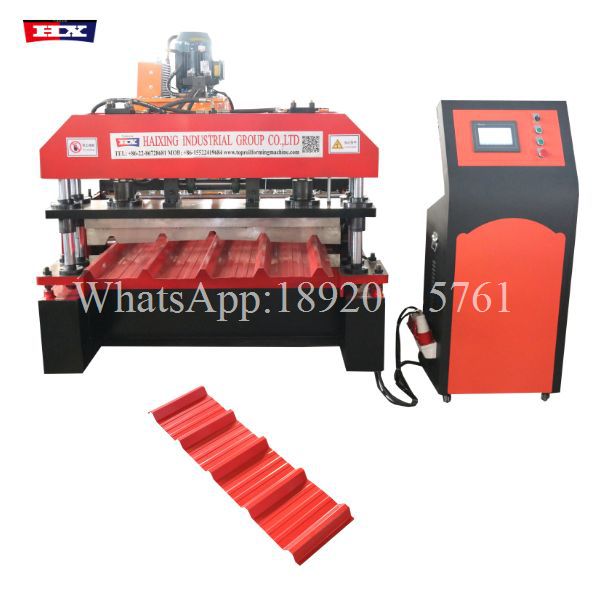

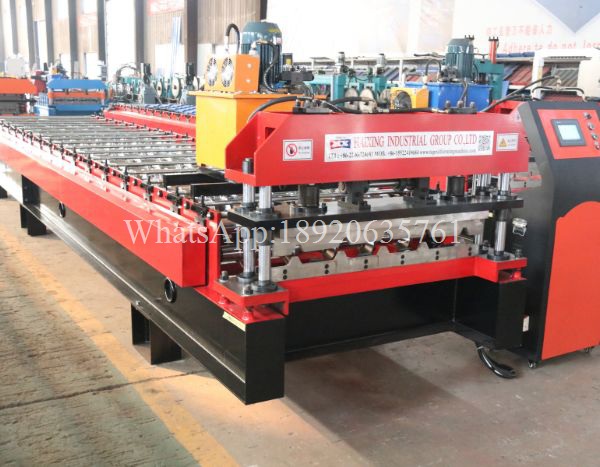

The Engine of Efficiency: How Trapezoidal Roll Forming Machines Revolutionize Metal Construction

In the dynamic world of modern building, metal roofing and cladding stand as pillars of durability, cost-effectiveness, and design flexibility. At the heart of producing the ubiquitous trapezoidal profile panels – recognized by their distinctive, repeating ridges and valleys – lies a remarkable piece of industrial engineering: the Trapezoidal Roll Forming Machine. This sophisticated equipment transforms flat metal coil into precise, high-strength profiles at astonishing speeds, forming the backbone of countless commercial, industrial, agricultural, and residential projects worldwide.

Specification

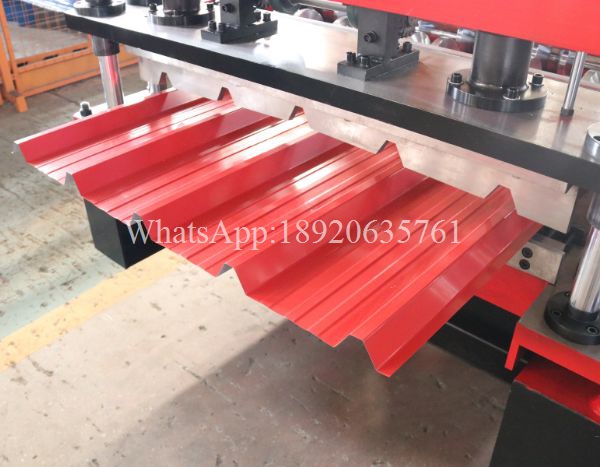

Understanding the Trapezoidal Profile

Before delving into the machine, it's crucial to grasp the profile it creates. The trapezoidal panel features a series of symmetrical, trapezoid-shaped ribs running longitudinally. Key characteristics include:

Structural Rigidity: The trapezoidal shape provides exceptional strength and spanning capability, allowing for wider purlin spacing compared to simpler corrugated profiles.

Water Shedding: The pronounced ribs and valleys efficiently channel water and snow off the roof.

Versatility: Available in a wide range of heights (rib depths), widths, and pitches (rib spacing) to suit diverse structural and aesthetic requirements.

Material Efficiency: Optimized designs maximize strength-to-weight ratio, reducing overall material usage.

Ease of Installation: Consistent profiles and standard fastening systems enable rapid installation.

Operation Workflow:

Coil Loading: Metal coils are mounted onto the decoiler, automatically fed into the machine.

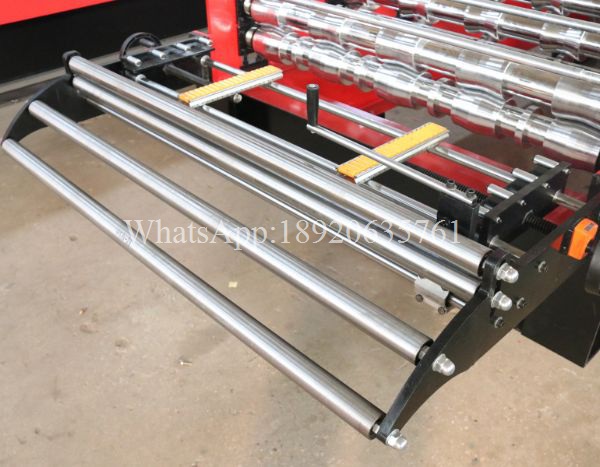

Leveling & Feeding: A pre-leveling unit straightens the material before it enters the dual-layer forming section.

Cutting & Stacking: A flying shear cuts panels to preset lengths, which are then auto-stacked for packaging.

The Compelling Advantages of On-Site or Factory Production with a Trapezoidal Roll Forming Machine

Unmatched Production Speed & Volume: Roll forming is a continuous, high-speed process. Machines can produce hundreds of linear feet of finished panel per minute, far exceeding the output of manual fabrication or press braking. This enables rapid fulfillment of large orders and just-in-time manufacturing.

Exceptional Consistency & Precision: Every panel produced is identical. Computer-controlled systems and precision-ground rolls guarantee consistent profile geometry, rib height, valley depth, and panel length within tight tolerances (often ±1.0mm or better). This uniformity is critical for structural performance and seamless installation.

Significant Material Savings: Roll forming minimizes waste.

Optimized Nesting: Software can optimize coil usage, nesting different panel lengths efficiently.

Reduced Scrap: Precise control eliminates the errors common in manual cutting and bending.

No Welding/Joining Scrap: Continuous forming creates seamless long panels, eliminating the waste from welding or joining shorter sections.

Reduced Labor Costs & Dependence: Automation drastically reduces the manual labor required per panel compared to traditional fabrication methods. One operator can often manage the entire line.

Work Hardening: The cold-forming process slightly work-hardens the metal, increasing its yield strength.

Preserved Coating: The forming process minimizes surface damage to pre-painted or coated coils, maintaining corrosion resistance and aesthetics. Roll forming applies gradual pressure without the concentrated stress points of press braking.

Seamless Lengths: Eliminating end-laps or welds creates inherently stronger, more weathertight panels.

The Trapezoidal Roll Forming Machine is far more than just a panel maker; it is the fundamental engine driving the efficiency, affordability, and quality of modern trapezoidal metal roofing and cladding systems. By transforming raw coil steel into precise, high-performance profiles at unparalleled speeds and with minimal waste, this technology empowers manufacturers to meet market demands and contractors to build faster and more reliably. Whether housed in a large factory producing panels for national distribution or mounted on a trailer fabricating panels directly on a remote job site, the Trapezoidal Roll Forming Machine remains an indispensable investment for any business serious about competing and thriving in the dynamic metal construction industry. Its continuous hum is the sound of progress, shaping the skylines and structures of our world, one precise trapezoid at a time.

Our photos with our customers

WHY CHOOSE US?

about us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for Hydraulic Metal Trapezoidal Glazed Corrugated Three Layer Roof Roll Forming Machine Three Layer Roof Roll Forming Machine . It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the Trapezoidal roll forming machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
