The Comprehensive Guide to Steel Floor Decking Roll Forming Machine

In the realm of modern construction and industrial manufacturing, efficiency, precision, and reliability are paramount. The steel floor decking roll forming machine stands as a testament to this principle, representing a sophisticated piece of equipment engineered to transform raw steel coils into high-quality, consistent floor decking profiles. This machine is an integral part of the production line for metal building components, automating a complex process that ensures structural integrity and dimensional accuracy for projects ranging from skyscrapers to industrial facilities.

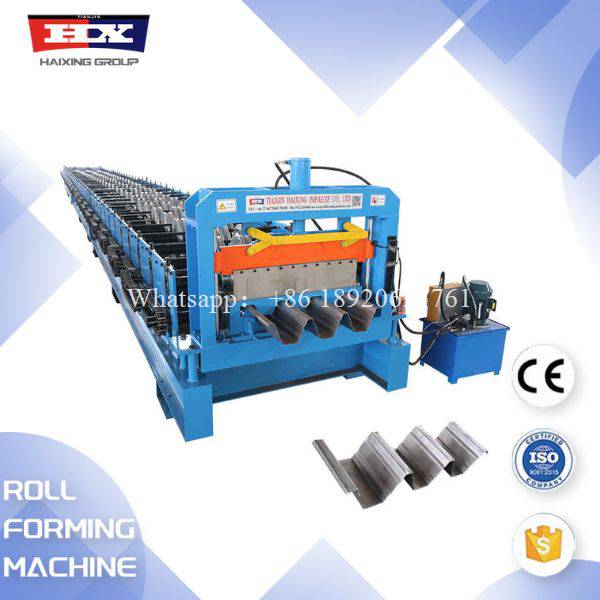

Steel Floor Decking Roll Forming Machine

Specification

Application

Floor deck sheets are widely used in power plants, electrical equipment companies, automobile showrooms, steel structure factories, cement warehouses, steel structure offices, airport terminals, train stations, sports venues, concert halls, grand theaters, large supermarkets, logistics centers, Olympic venues and sports Stadiums and other steel structures.

Machine workflow

A steel floor decking roll forming machine typically integrates several key operational stages into a seamless, continuous production line. The process begins with the开卷 (uncoiling) stage. Here, a large coil of sheet steel is mounted onto a decoiler. This unit carefully unwinds the metal, feeding it into the machine while maintaining tension control to prevent distortions or scratches on the material surface. The quality of the raw coil and the precision of the uncoiling process are crucial, as they set the foundation for the entire operation.

Following uncoiling, the material proceeds to the  (leveling or flattening) stage. During transportation and storage, steel coils can develop slight bends, twists, or internal stresses. The leveling machine, often comprised of a series of precision rollers, applies pressure to cold-work the metal, eliminating any imperfections and ensuring the sheet is perfectly flat before forming. This step is critical; a flawlessly flat sheet is essential for achieving a uniform profile and preventing defects in the final decking product, which must meet strict building codes.

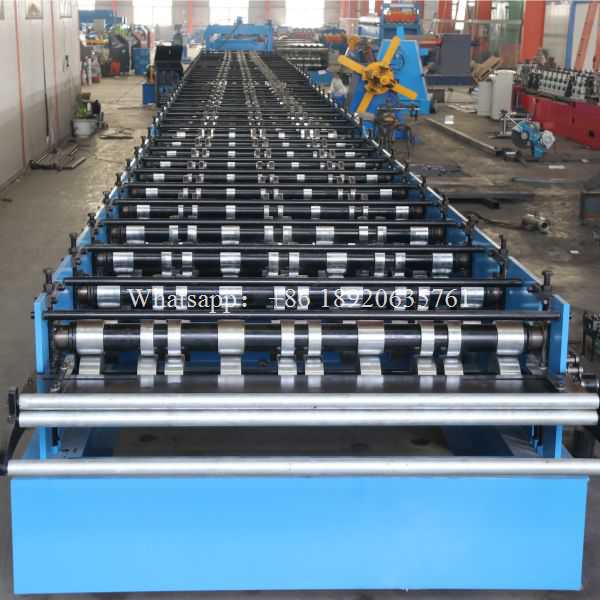

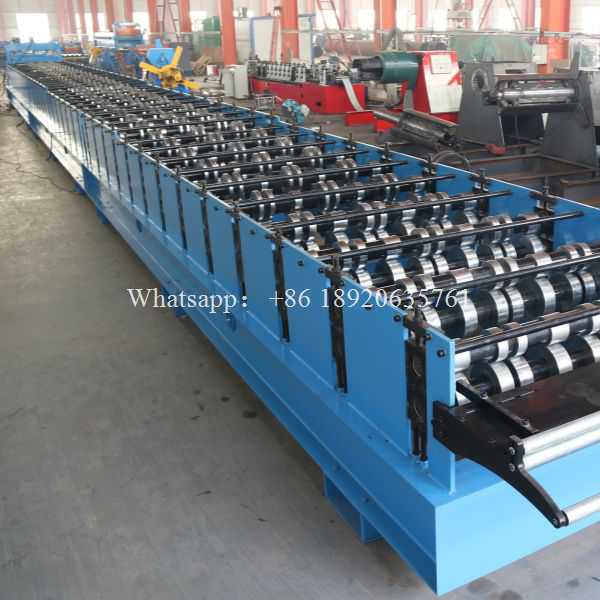

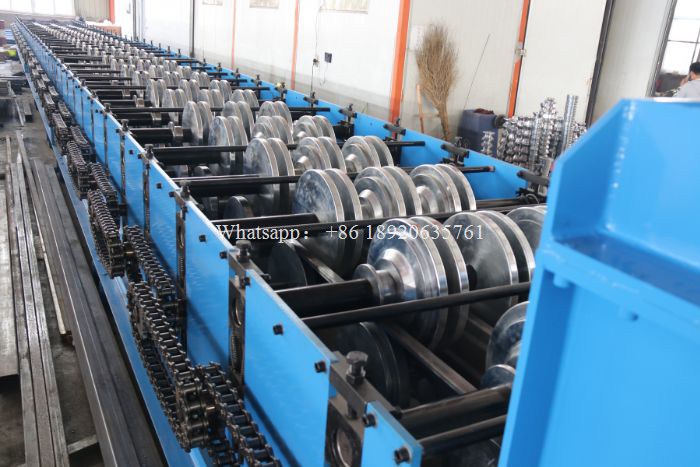

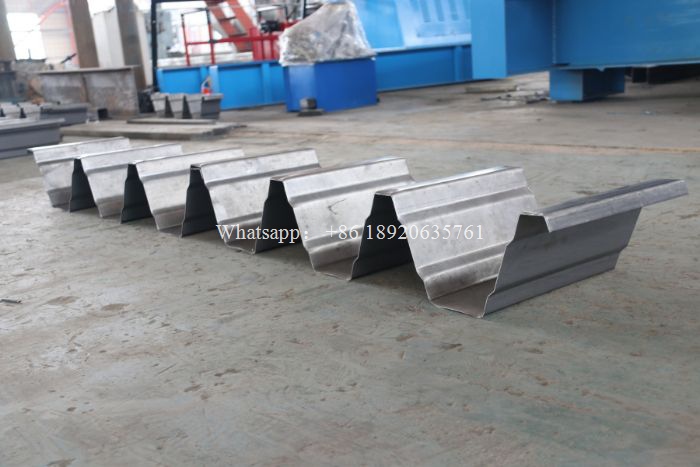

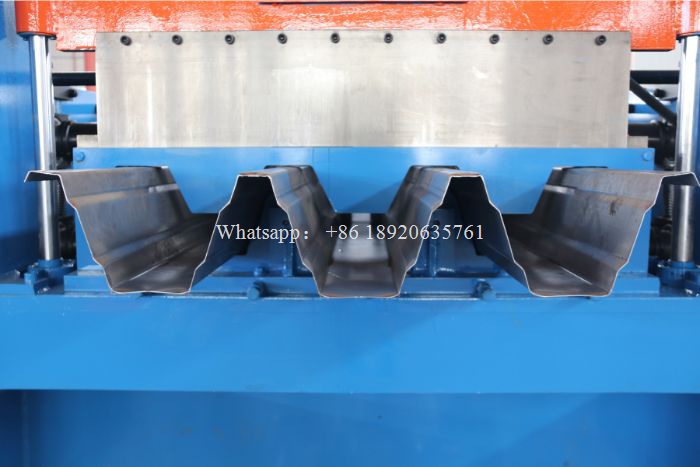

The heart of the entire system is the (roll forming) process. This is where the flat steel sheet is progressively shaped into its final profile. The machine features a series of tandem stands, each containing precisely machined rollers (dies) that incrementally bend the metal until it achieves the desired cross-sectional shape—be it a trapezoidal, re-entrant, or composite cellular deck profile. The genius of the steel floor decking roll forming machine lies in its customization capabilities. By changing the roller dies, the same machine can produce a vast array of different decking profiles and thicknesses, offering manufacturers tremendous flexibility. The roll forming process is celebrated for its high speed and exceptional dimensional accuracy, producing a continuous, high-strength product with minimal material waste compared to other methods like press braking.

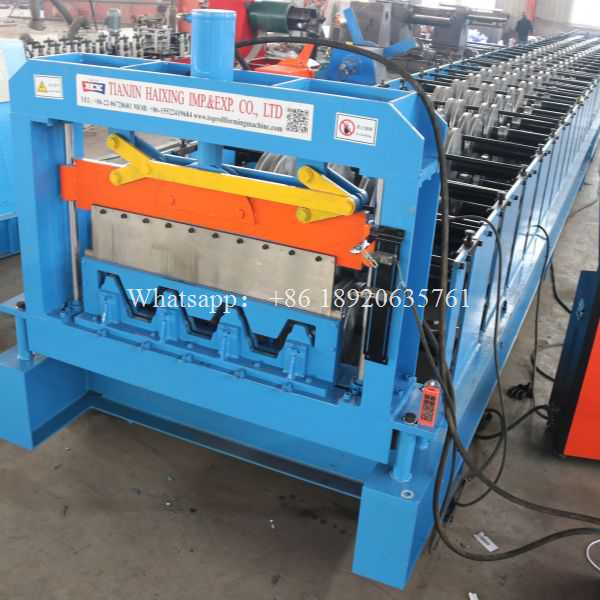

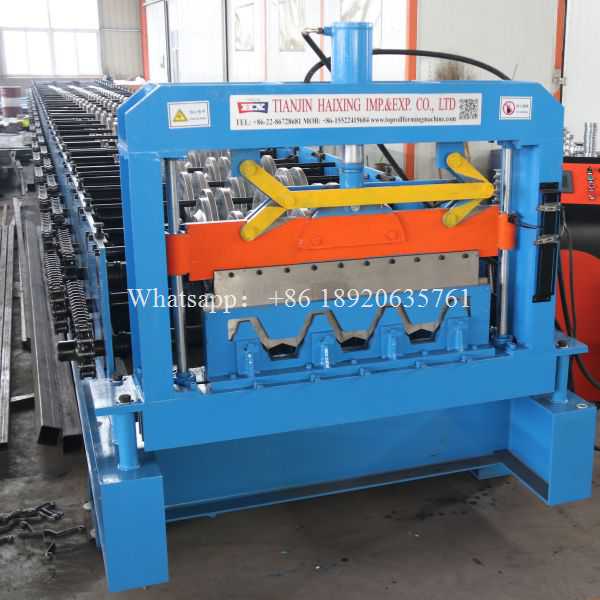

Once the profile is formed, the continuous panel moves to the (cutting) station. Depending on the design, this is either a pre-programmed flying cut-off system or a stationary shear. The flying cut-off is synchronized with the speed of the moving profile, allowing it to make clean, burr-free cuts to specific lengths without stopping the production line. This ensures maximum throughput and efficiency. The cut lengths are then stacked and prepared for packaging and shipment.

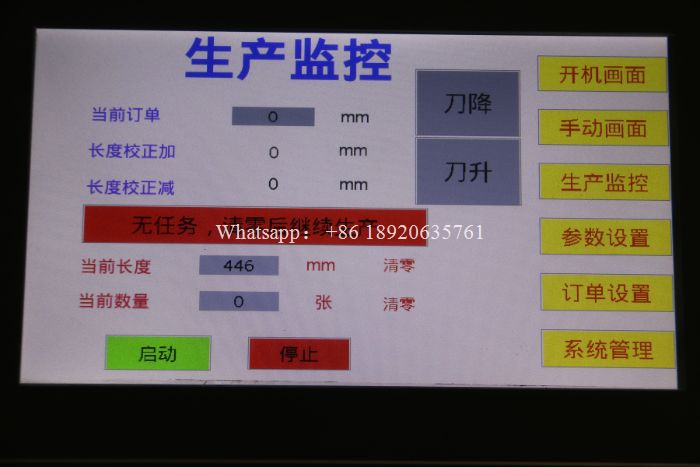

The entire operation of a modern steel floor decking roll forming machine is governed by a centralized Programmable Logic Controller (PLC). This computer system allows operators to input production parameters such as length, quantity, and production speed. The PLC synchronizes all components—from the decoiler and leveler to the roll forming stands and the flying cut-off—ensuring a harmonious and automated workflow. Advanced machines also include servo-driven systems for enhanced precision and quick changeover between jobs.

Investing in a high-quality steel floor decking roll forming machine offers numerous advantages. It dramatically increases production capacity and consistency while reducing labor costs and material waste. The automated nature of the machine minimizes human error, guaranteeing that every piece of floor decking is identical, which is vital for easy installation and structural performance on the construction site. Furthermore, the ability to produce profiles on-demand provides a significant competitive edge in the fast-paced construction industry.

In conclusion, the steel floor decking roll forming machine is a marvel of industrial engineering. By seamlessly integrating the processes of uncoiling, leveling, roll forming, and cutting, it delivers a superior product that is fundamental to modern construction. Its efficiency, precision, and flexibility make it an indispensable asset for any manufacturer looking to excel in the production of building materials.

Our photos with our customers

WHY CHOOSE US?

about us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a steel floor decking roll forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the steel floor decking roll forming machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
