The Art of Curved Standing Seam Roofs: Precision Engineered by Standing Seam Curving Machines

The allure of a curved standing seam metal roof is undeniable. Its sweeping lines evoke modernity, strength, and architectural elegance. Yet, achieving these perfect, consistent curves on-site, especially with large panels, presents a significant challenge. This is where the standing seam curving machine steps in as an indispensable solution for contractors and manufacturers aiming for flawless results with maximum efficiency. This specialized equipment transforms flat standing seam panels into precise, uniform curves, unlocking a world of design possibilities.

Specification

Understanding the Standing Seam Curving Machine Workflow:

Panel Loading & Setup: Flat standing seam panels, pre-formed to the required profile (e.g., double lock, snap lock), are carefully loaded onto the infeed support rollers of the standing seam curving machine. Operators set the critical parameters on the machine's control system:

Target Radius: The desired curvature of the finished panel.

Required Arc Length: The specific length of the curved section needed for the roof section.

Material Properties: Inputs regarding the specific metal alloy (steel, aluminum, zinc, copper) and its gauge/thickness, as the machine accounts for material springback.

Feeding & Initial Engagement: The panel is fed horizontally into the machine. Drive rollers grip the panel securely, ensuring smooth, controlled forward movement without slippage or surface damage.

The Precision Curving Process: This is the core function where the standing seam curving machine shines.

Hydraulic Power: Powerful hydraulic cylinders apply immense, controlled force to strategically positioned forming dies or rollers.

Gradual Deformation: Unlike brute-force bending, the machine applies this force progressively and incrementally as the panel advances. The forming dies/rollers are meticulously shaped to match the standing seam profile, ensuring the seam legs and panel field deform uniformly without buckling, wrinkling, or distorting the critical seam geometry.

Continuous Control: Sophisticated CNC systems constantly monitor and adjust the hydraulic pressure and the relative position of the forming dies/rollers based on the input parameters and real-time feedback. This compensates for material variations and ensures the curvature develops exactly as programmed along the entire panel length.

Springback Compensation: A crucial aspect handled expertly by the standing seam curving machine is anticipating and counteracting springback. When metal is bent, it naturally tries to spring back slightly towards its original flat shape after the bending force is removed. The machine's intelligent control system automatically over-bends the panel just enough so that when the inherent springback occurs, the panel relaxes precisely into the desired target radius. This requires sophisticated calculation based on material properties and thickness.

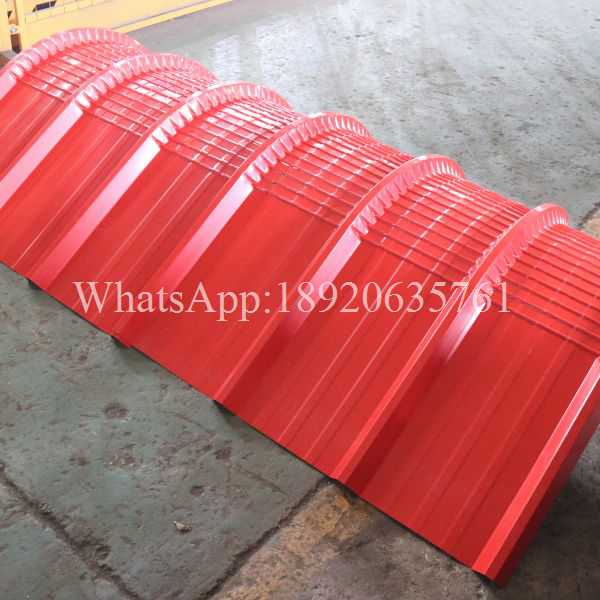

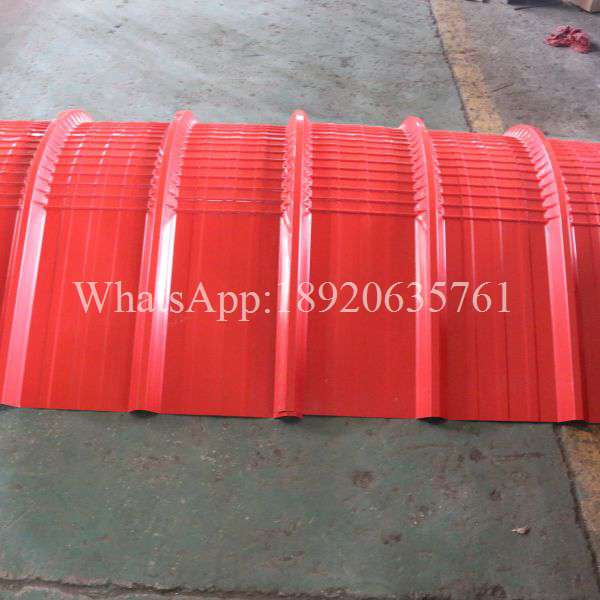

Output & Handling: The now perfectly curved panel exits the machine onto outfeed supports. These supports are often curved themselves to cradle the panel and prevent unintended straightening or damage. The curved panel is then carefully handled, often using specialized lifting equipment designed for curved metal, and transported to the installation site or staging area.

Photos with our customers

WHY CHOOSE US?

about us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for Hydraulic Metal Trapezoidal Glazed Corrugated Three Layer Roof Roll Forming Machine Three Layer Roof Roll Forming Machine . It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the standing seam curving machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing and packaging on the roll surface and shaft.

Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation and we provide technical support for the entire life cycle of the device.
