Roofing Sheet Profile Machine
Roofing Sheet Profile Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

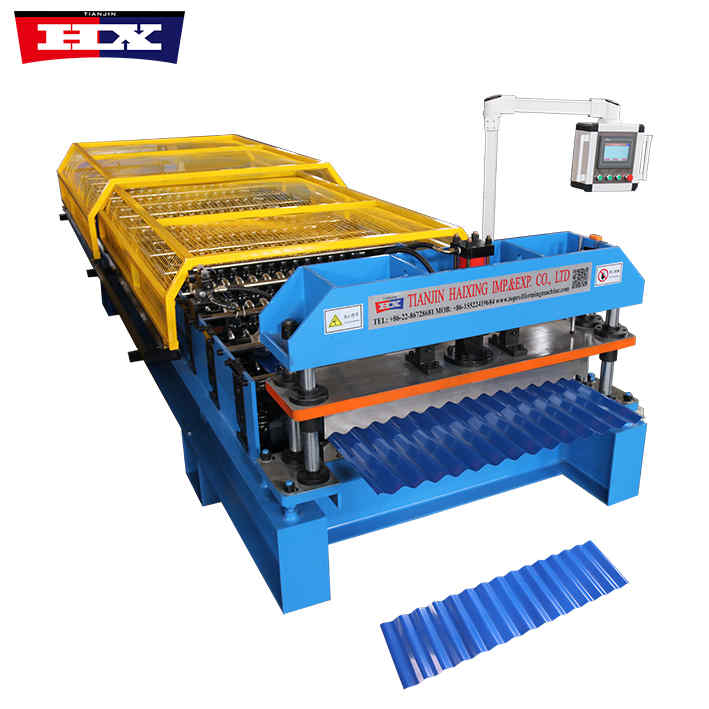

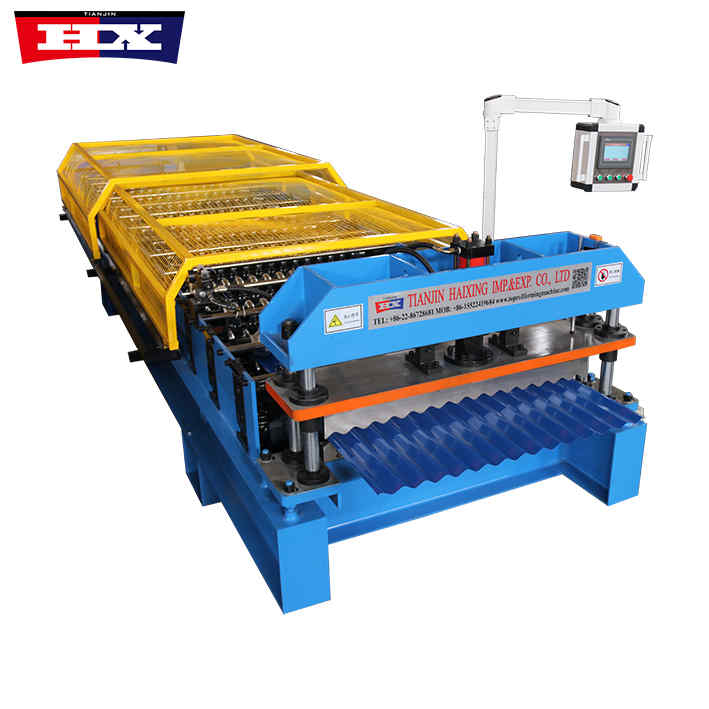

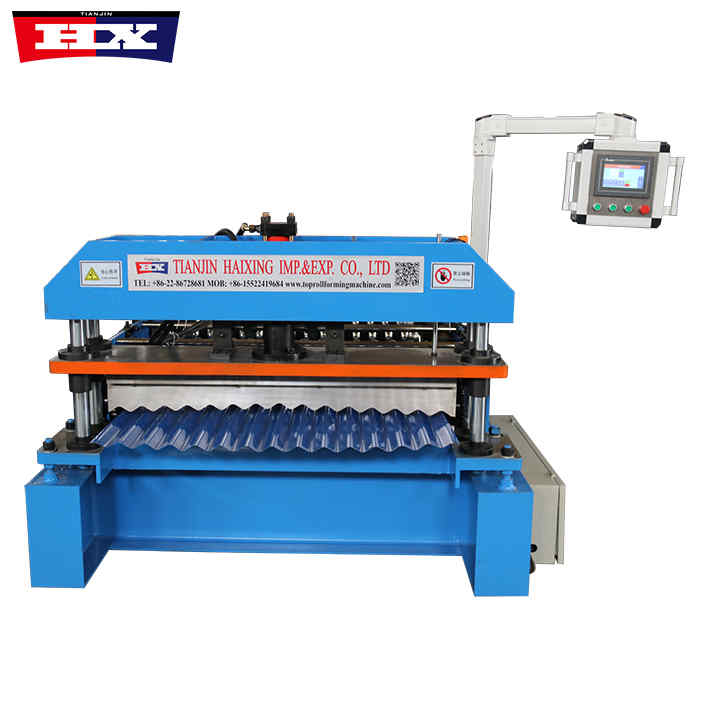

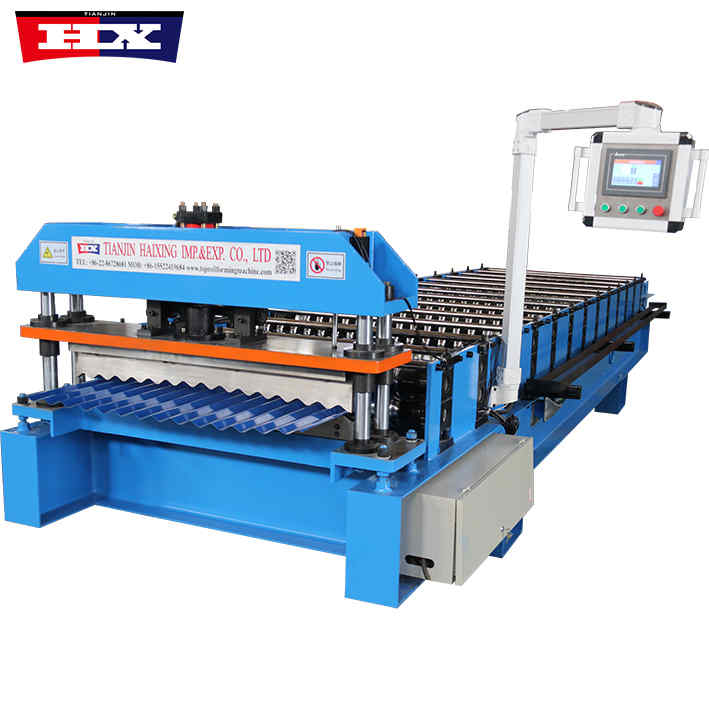

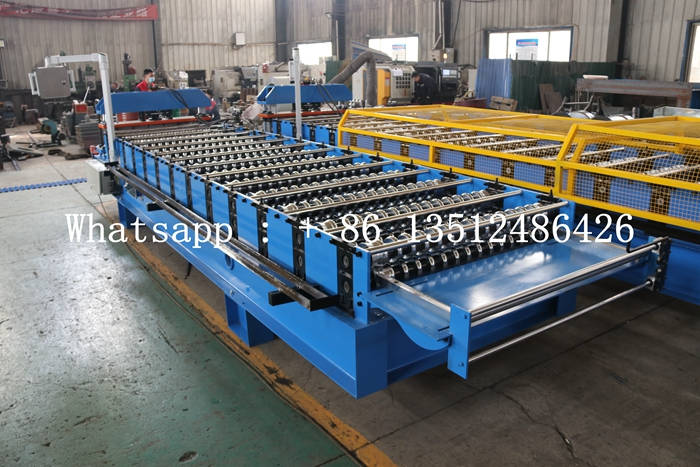

Roofing Sheet Profile Machine
Roofing Sheet Profile Machine
The roofing sheet profile machine is a mechanical equipment widely used in the industrial field. It is mainly used to press metal sheets into various shapes to meet the needs of different projects and product manufacturing.

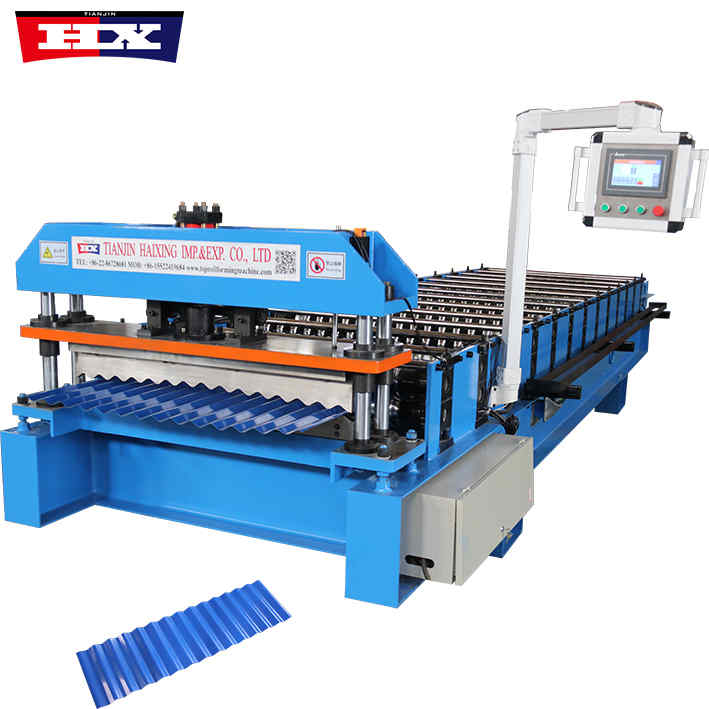

Roofing Sheet Profile Machine
Specification
No. |
Number |
Roofing Sheet Profile Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |

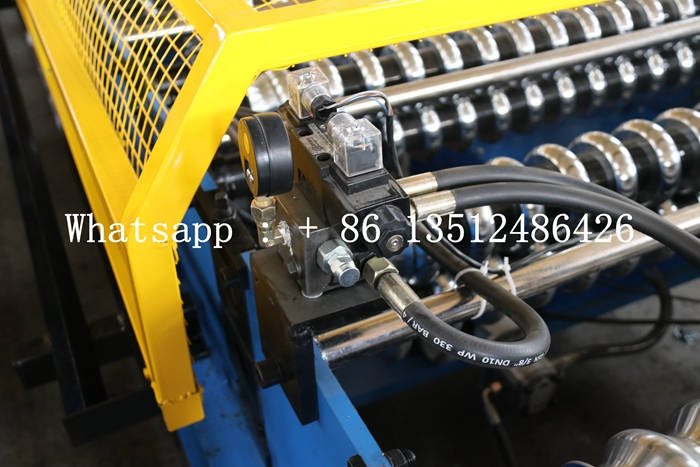

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

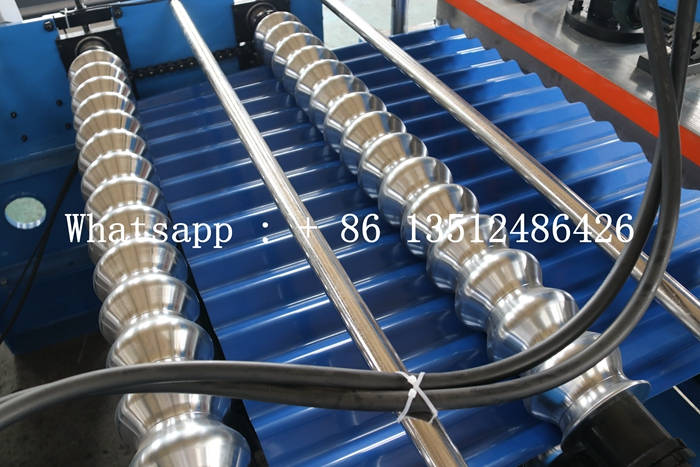

| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. Easy to operate: The roofing sheet profile machine adopts a humanized operation interface and intelligent control system, making the operation easier and faster, and reducing the labor intensity of workers.
2. Easy maintenance: The roofing sheet profile machine has a reasonable structure design and is easy to maintain and maintain, extending the service life of the equipment.
3. High cost performance: Although the roofing sheet profile machine is superior to similar products in terms of performance and quality, its price is relatively reasonable and has a high cost performance, saving investment costs for enterprises.
