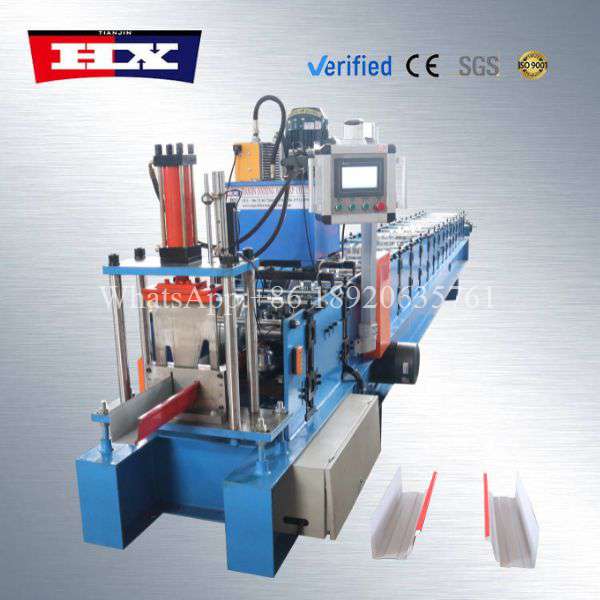

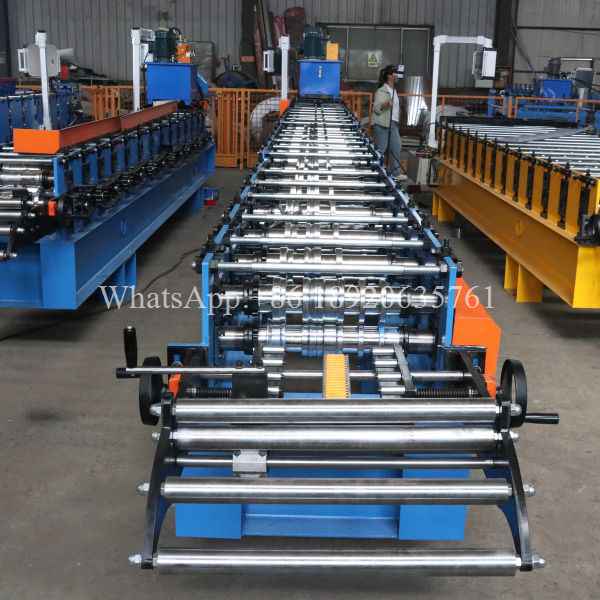

hydraulic rain gutter roll forming machine for sale

For businesses serious about supplying the construction industry with top-tier rain management solutions, investing in a high-quality rain gutter roll forming machine is not just an option; it's a strategic imperative. Our 28 years of experience are embedded in the design and construction of these robust machines. We understand the demands of professional gutter production – the need for speed, unwavering precision, and reliable operation day in and day out.

Our rain gutter roll forming machine embodies this commitment. Engineered for durability, precision, and ease of operation, it empowers manufacturers to produce superior galvanized and color-coated steel gutters efficiently and profitably. If you are ready to elevate your gutter production capabilities, explore how our proven rain gutter making machine technology can become the driving force behind your success. Contact us today to discuss your specific requirements and experience the difference engineered expertise makes.

Specification

The Precision Workflow: From Coil to Finished Gutter

The efficiency and reliability of a Rain Gutter roll forming Machine stem from its meticulously orchestrated sequence of operations:

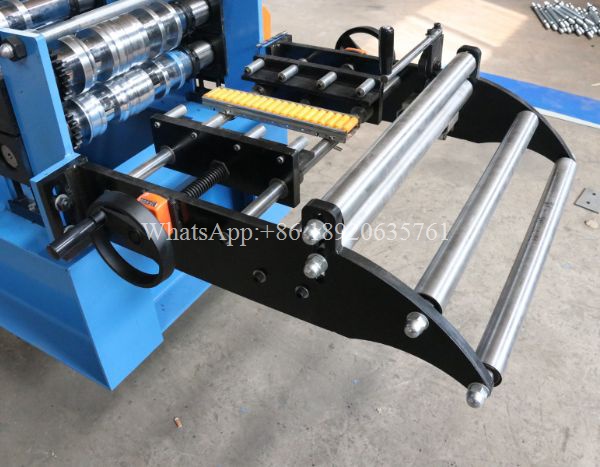

Uncoiling & Feeding (Uncoiler/Feeder): The process begins with a heavy-duty decoiler, securely holding the large coil of raw material (steel, aluminum, or copper). A feeding mechanism, often with servo-driven pinch rolls, draws the material steadily into the production line. Modern Rain Gutter Making Machines feature hydraulic or motorized coil cars for easy loading and automatic centering systems to ensure consistent, aligned material flow – critical for precision forming.

Leveling & Straightening (Leveler/Straightener): Coiled metal inherently carries curvature (coil set) and internal stresses. Passing through a precision multi-roll leveler is essential. This stage employs a series of adjustable rolls that systematically work the material, bending it alternately to eliminate coil set, crossbow, and edge wave. The output is flawlessly flat and straight metal strip – a fundamental prerequisite for accurate forming and seamless operation in the Rain Gutter Making Machine.

Pre-Forming & Edge Curling (Optional - Depending on Profile): For certain gutter profiles, especially K-style, an initial pre-forming or edge-curling station might be integrated. This stage starts the process of shaping the edges of the metal strip, preparing it for the final forming rolls and ensuring clean, consistent edges on the finished gutter. This step enhances the precision of the core Rain Gutter Making Machine process.

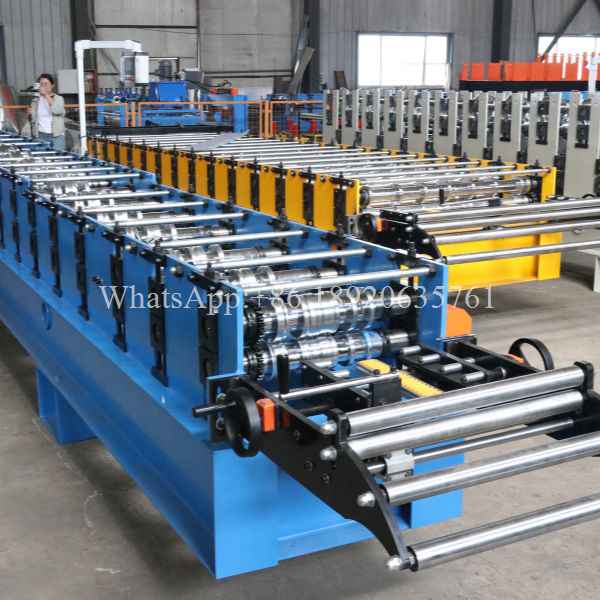

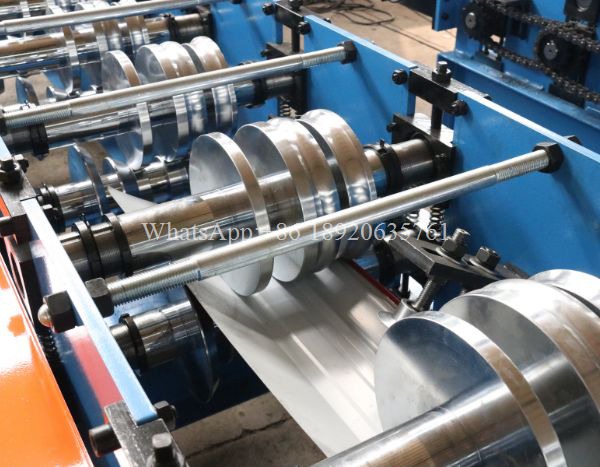

Progressive Roll Forming (Roll Forming Station): This is the heart of the machine where the flat strip is transformed into the gutter profile. The material passes through a series of progressively arranged forming roll stands (typically 10-20+). Each stand contains precision-contoured rolls (hardened tool steel) that incrementally cold-form the metal into the desired complex cross-section – whether it's the popular K-style, elegant half-round, unique fascia-style, or custom box gutters and downspouts. The number of stands determines the profile's complexity and final quality achievable by the Rain Gutter Making Machine. Final calibration stands ensure dimensional perfection and smooth surfaces.

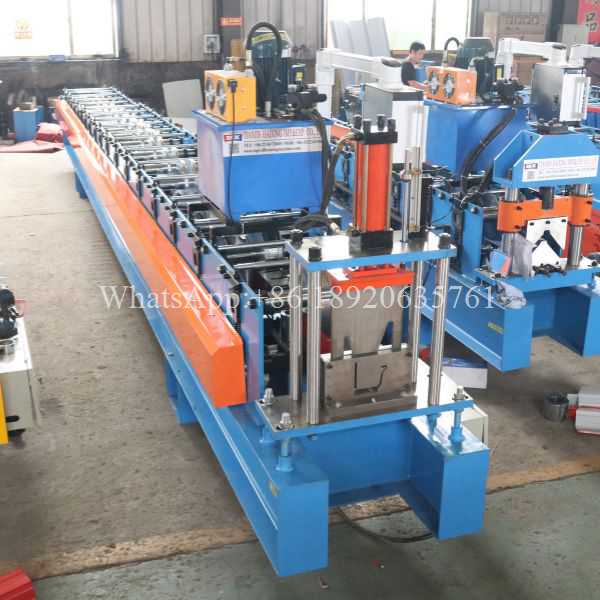

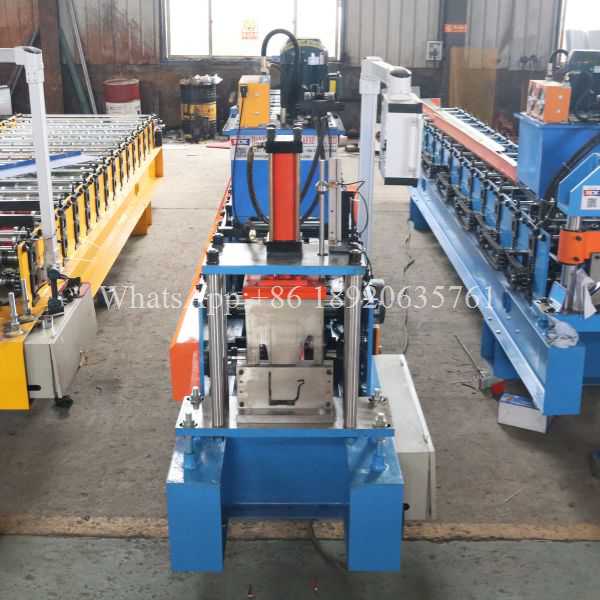

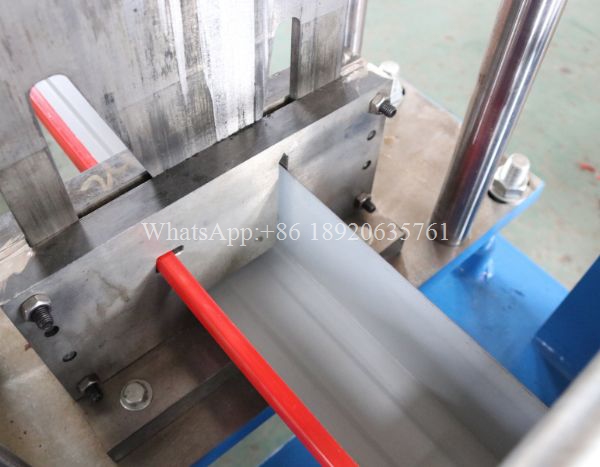

Cutting to Length (Cutting Station): Once fully formed, the continuous gutter advances to the cutting station. A high-precision flying shear (hydraulic or servo-electric) operates in perfect synchronization with the moving gutter. It cleanly shears the seamless gutter to the exact pre-programmed length required for the installation site (e.g., 10ft, 20ft, 40ft sections). The accuracy of this cut is paramount for efficient installation and minimizing waste. This stage showcases the synchronized efficiency of the Rain Gutter roll Forming Machine.

Our photos with our customers

WHY CHOOSE US?

about us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a hydraulic three-layer roll forming roofing machine for sale. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the hydraulic rain gutter roll forming machine for sale can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
