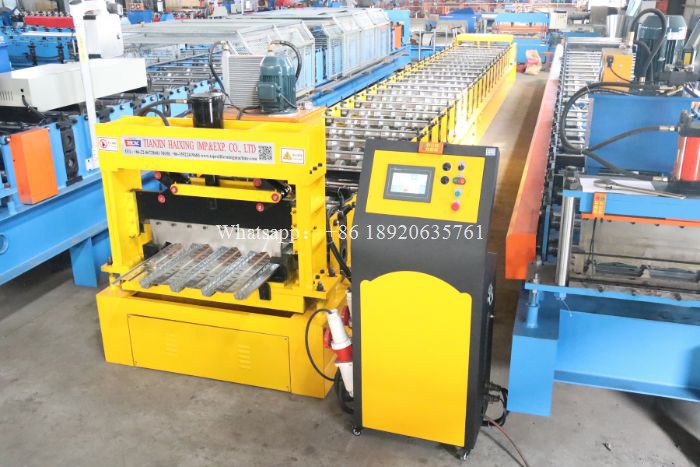

Metal Decking Machine: A Comprehensive Overview of Modern Construction Equipment

In the realm of modern construction and industrial manufacturing, efficiency, precision, and automation are paramount. The metal decking machine stands as a quintessential piece of equipment that embodies these principles, revolutionizing the production of structural building components. This sophisticated machinery is engineered to transform raw coil steel into precisely formed, high-strength metal decking panels used extensively in flooring, roofing, and wall systems. The entire automated process, encompassing uncoiling, leveling, roll forming, and shearing, ensures a continuous, high-volume output that meets stringent industry standards.

Specification

Machine operation process

The journey of manufacturing a metal deck panel begins with the uncoiling or pay-off stage. A large, heavy coil of sheet metal, typically steel or aluminum, is loaded onto the decoiler of the metal decking machine. This unit carefully unwinds the material, feeding it steadily into the subsequent stages. Tension control mechanisms are crucial here to prevent material deformation and ensure a smooth, consistent feed. The robustness of this initial stage directly influences the quality of the final product, highlighting the integrated design of the entire metal decking machine system.

Following uncoiling, the sheet metal often exhibits slight curvatures or imperfections from being wound on the coil. To rectify this, the material passes through a leveling or flattening unit. This section of the metal decking machine consists of a series of precision-leveling rolls that apply counter-bending pressure to the metal. This process effectively eliminates any internal stresses, curls, or minor distortions, resulting in a perfectly flat sheet. This is a critical step, as any residual imperfections could compromise the structural integrity and aesthetic quality of the final decking profile. The accuracy of this leveling process is a key differentiator for a high-performance metal decking machine.

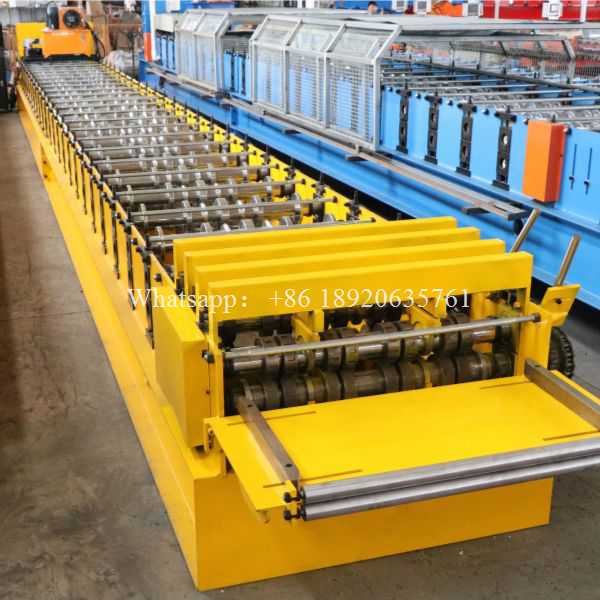

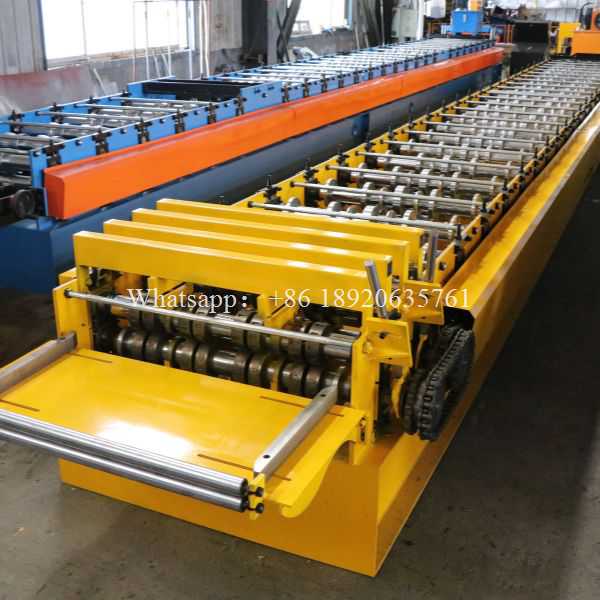

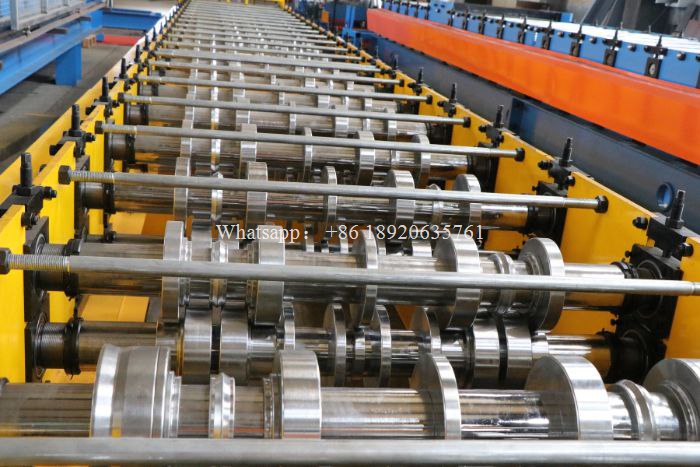

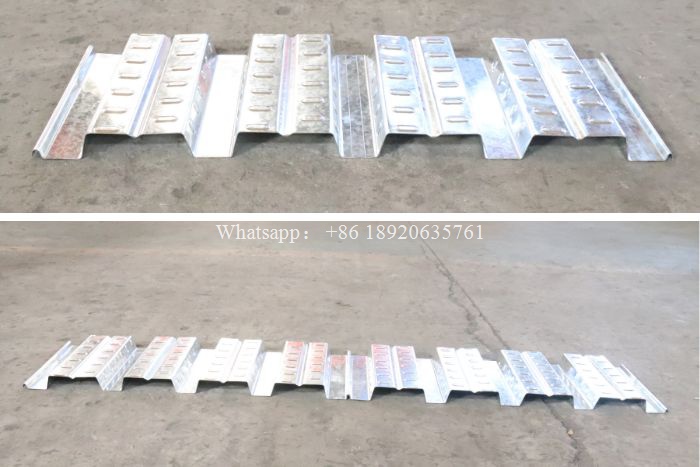

The heart of the operation is the roll forming station. This is where the flat metal strip is progressively shaped into its final profile through a series of meticulously engineered roller dies. Each set of contoured rollers on the metal decking machine incrementally bends the metal until it achieves the desired complex cross-section—common profiles include dovetail, trapezoidal, and re-entrant designs. The number of forming stands can vary depending on the complexity of the profile and the thickness of the material. Computer-aided design (CAD) and manufacturing (CAM) ensure each roller die is crafted for optimal formability and minimal material stress. The synchronized drive system of the metal decking machine guarantees that the metal moves through each forming stand at a consistent speed, maintaining precise dimensional accuracy across the entire length of the panel.

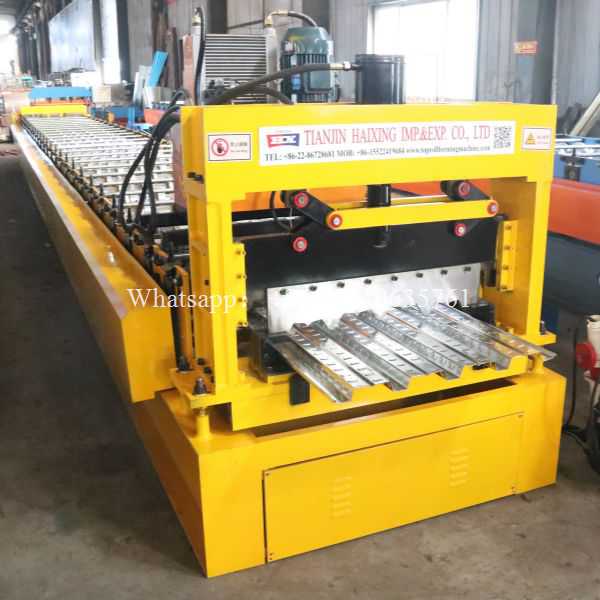

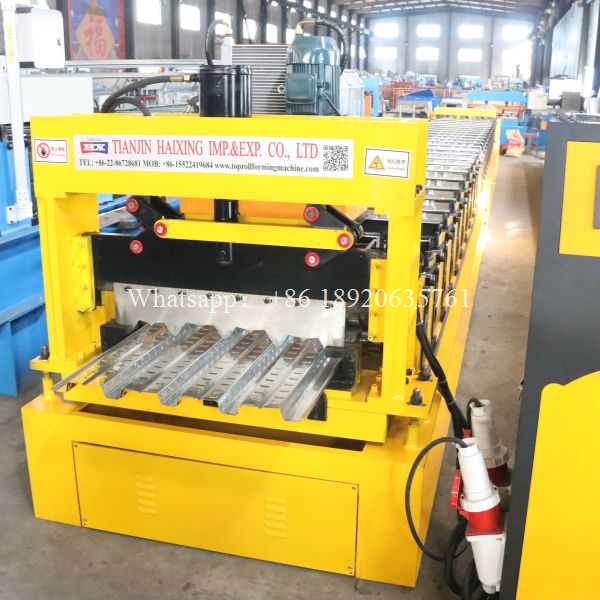

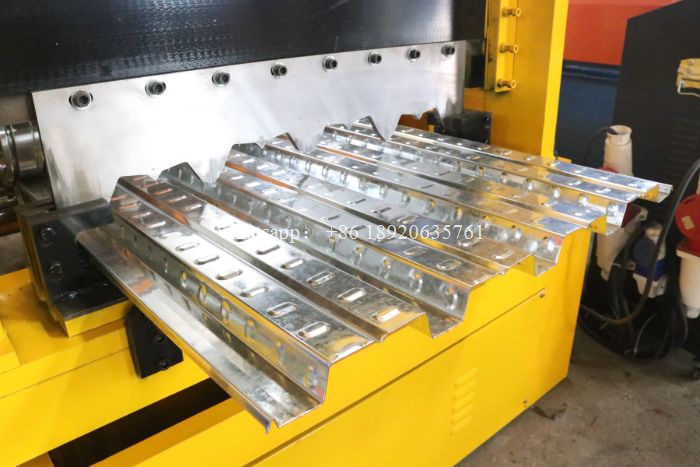

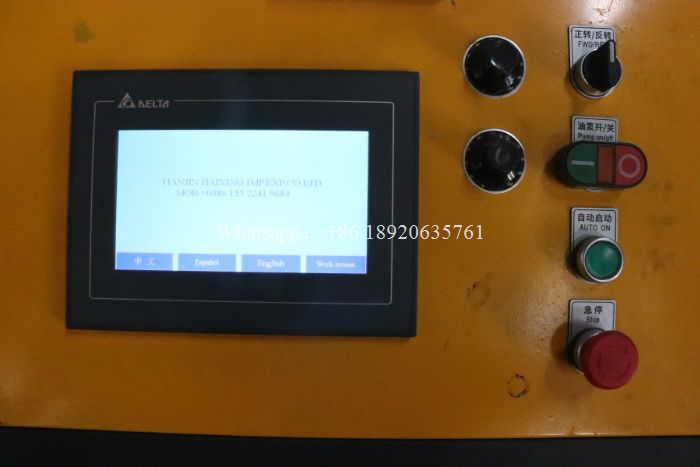

Once the panel is formed to specification, it moves to the cutting station. Modern metal decking machine models are typically equipped with a flying shear or a precision hydraulic shear. This cutting mechanism synchronizes its speed with the moving panel, allowing it to make a clean, burr-free cut to a pre-programmed length without stopping the entire production line. This flying cut capability is vital for maintaining high productivity and ensuring a continuous operation. The control system, often a programmable logic controller (PLC), allows operators to input exact lengths and quantities, enabling effortless customization for different project requirements. The efficiency of this cutting process underscores the automated brilliance of the contemporary metal decking machine.

The advantages of utilizing an automated metal decking machine are profound. It significantly boosts production rates while reducing labor costs and material waste compared to manual fabrication. The consistency and precision offered by the machine guarantee that every panel is identical, which simplifies installation and enhances the overall structural reliability of the building. Furthermore, these machines can be quickly reprogrammed and fitted with different roller dies to switch between profiles, offering manufacturers remarkable flexibility to meet diverse market demands.

In conclusion, the metal decking machine is an indispensable asset in the construction industry's supply chain. It seamlessly integrates multiple processes—from uncoiling and leveling to high-precision roll forming and shearing—into a single, automated, and highly efficient production line. By delivering strong, consistent, and custom-length metal decking panels, this machinery not only accelerates project timelines but also contributes to the creation of safer and more resilient structures. As construction technologies continue to advance, the metal decking machine will undoubtedly remain at the forefront, evolving to meet the future challenges of the built environment.

Our photos with our customers

WHY CHOOSE US?

about us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a metal decking machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the metal decking machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
