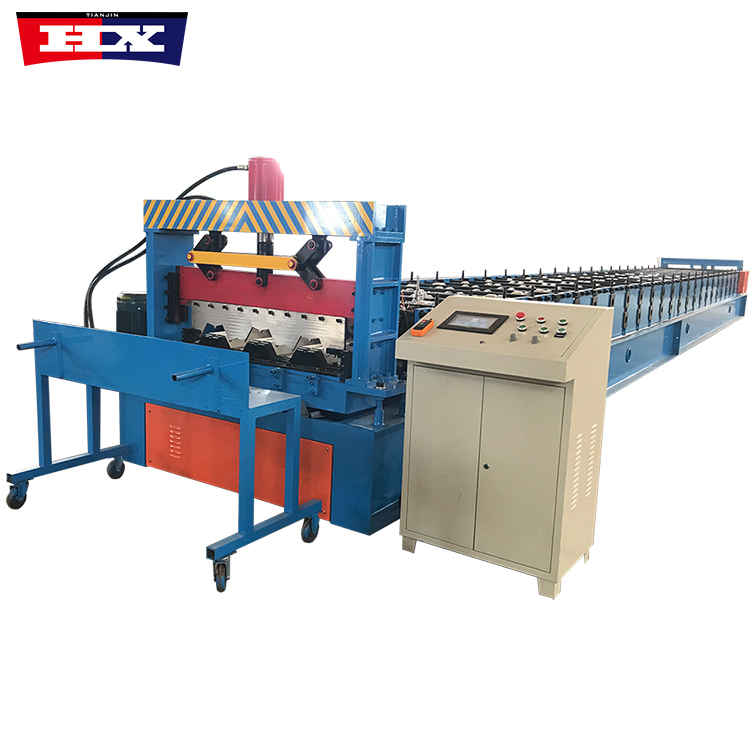

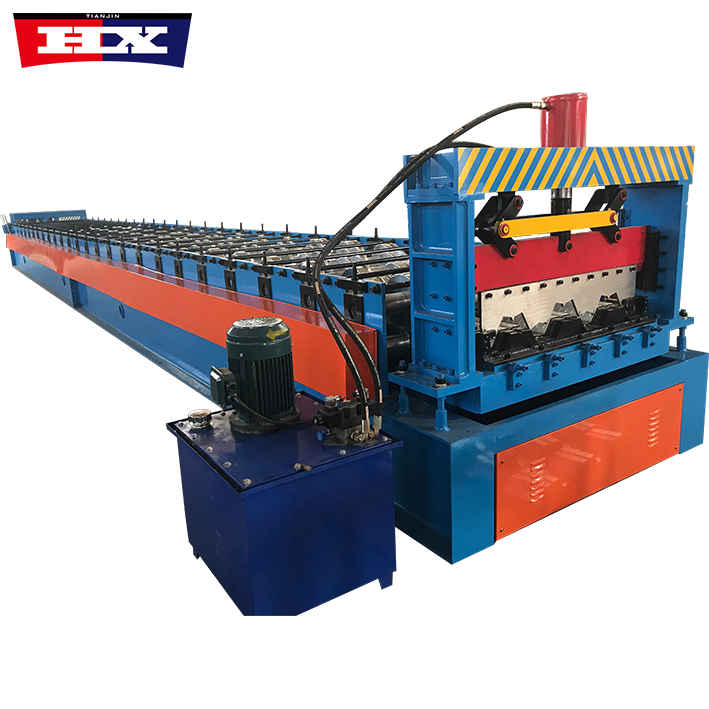

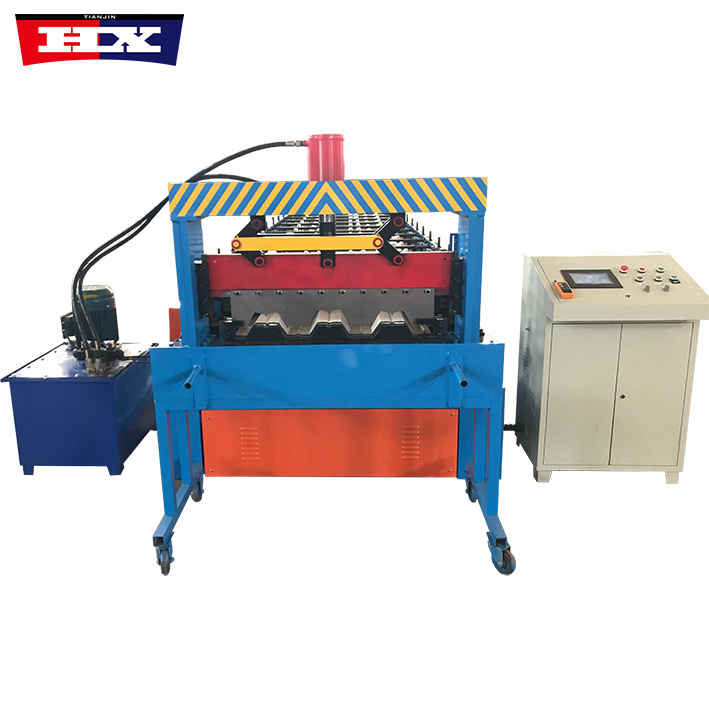

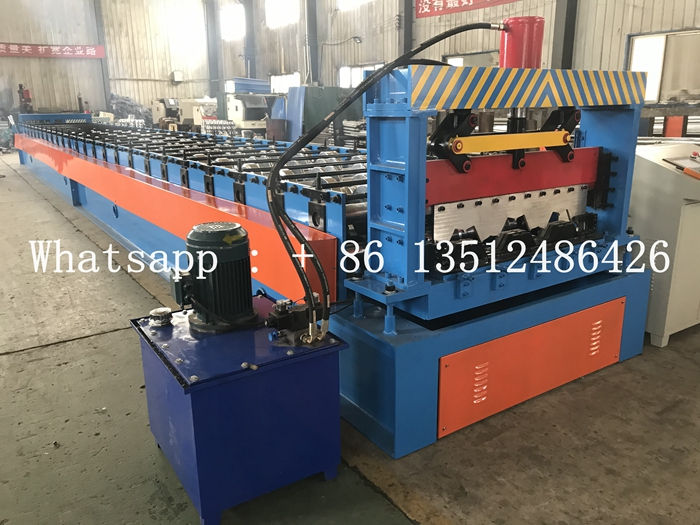

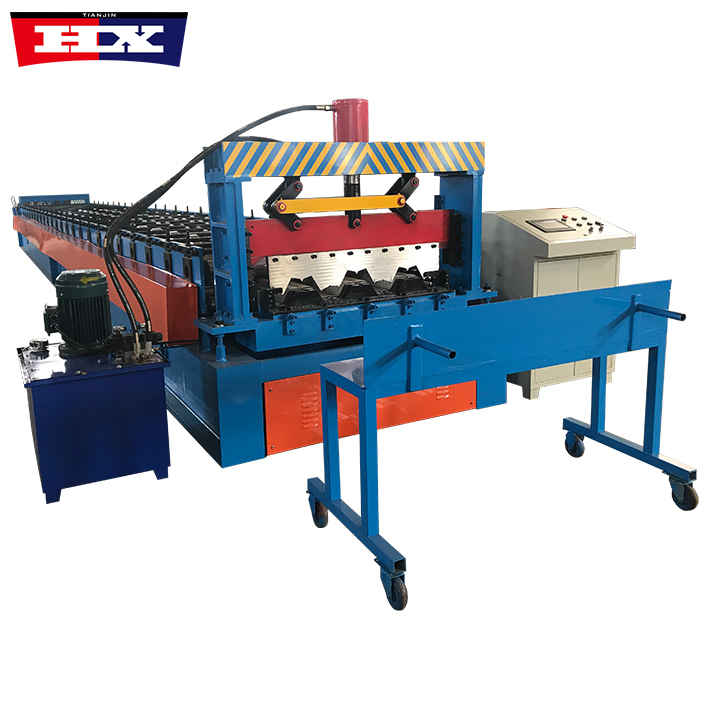

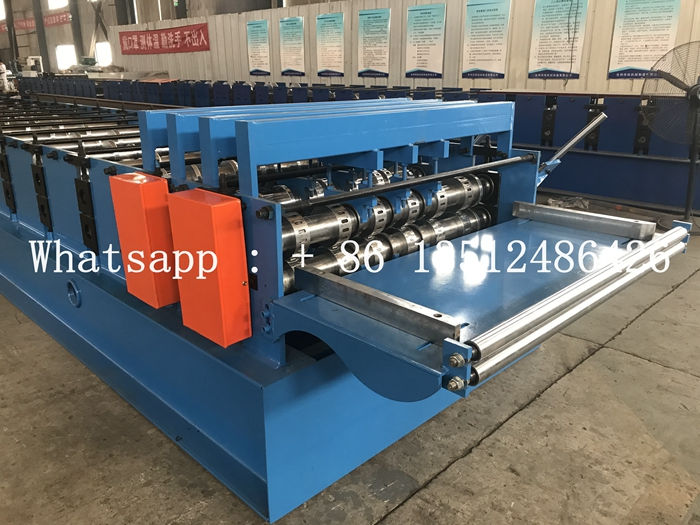

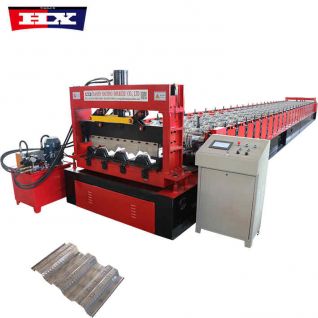

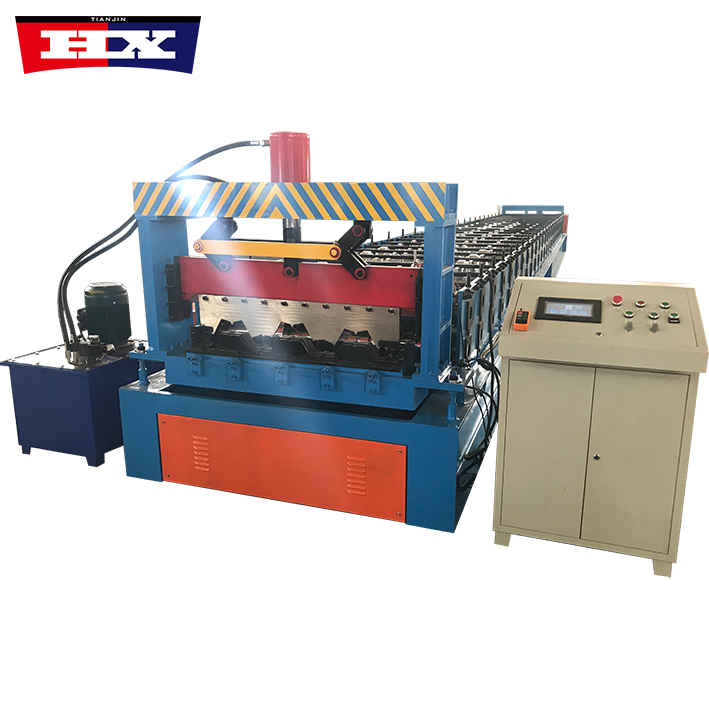

Decking Panel Roll Forming Machine
Decking Panel Roll Forming Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.8-1.5mm
Produce Speed : 10-15m/min
Port : Tianjin
Decking Panel Roll Forming Machine
Decking Panel Roll Forming Machine
Specification
No. |
Number |
Decking Panel Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 450H Beam |
| 4 | Middel side | 18/20mm |

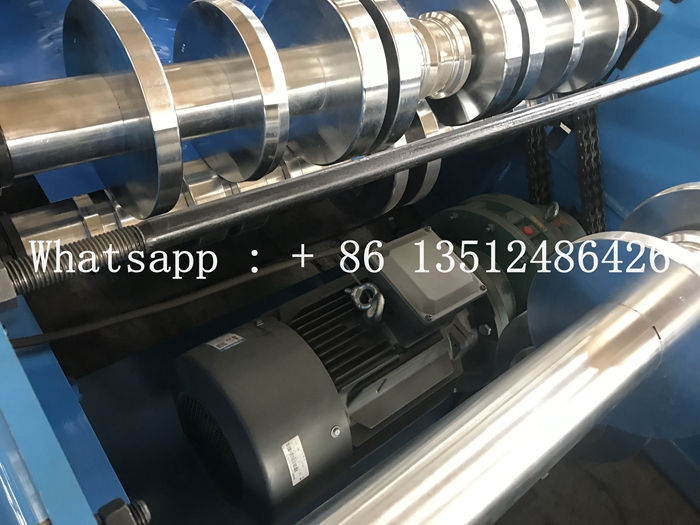

| 5. | Main motor | 15kw*2 |

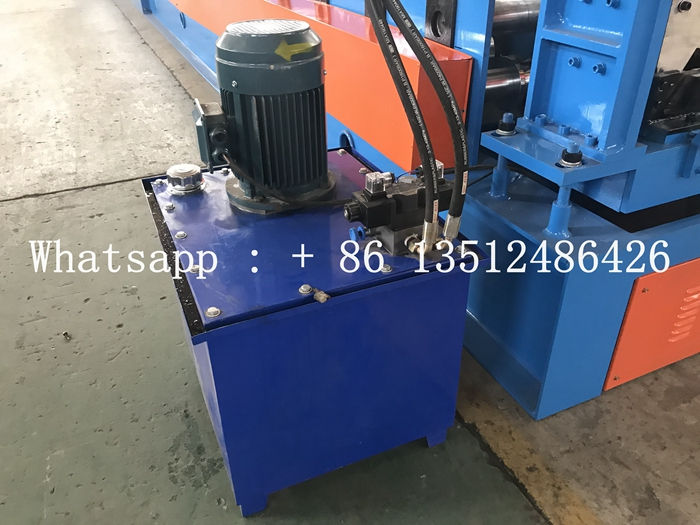

| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1.5/2 inches |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |

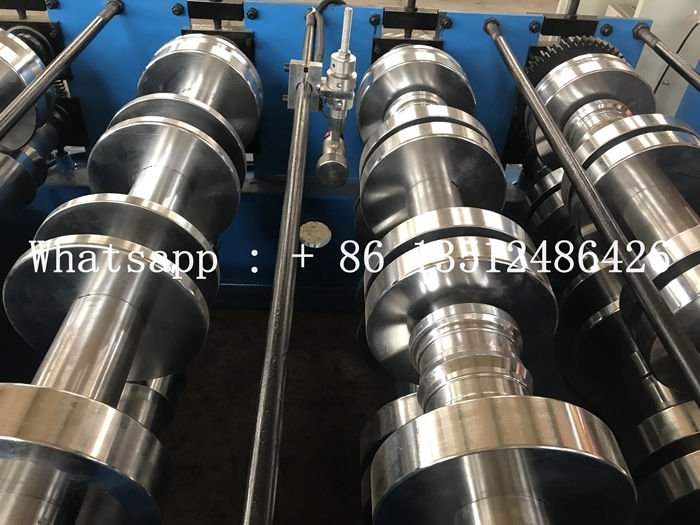

| 15. | Roller diameter | Φ85mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.8-1.5mm |
| 18. | Rows | 26 |
| 19. | Size | 12500mm*1800mm*2000mm |
| 20. | Weight | 13500kg |
Advantages
1. During the use stage, the floor deck serves as the tensile steel bar for the concrete floor slab, which also improves the stiffness of the floor slab and saves the amount of steel bars and concrete. 2. The embossing on the surface of the profiled steel plate creates a large bonding force between the floor slab and the concrete, making the two form a whole. Together with the stiffening ribs, the floor slab system has a high bearing capacity. Concrete will not crack after it sets.
3. In the case of overhang, the floor slab only serves as a long-term formwork. The length of the overhang can be determined according to the cross-sectional characteristics of the floor slab. In order to prevent the cantilever plate from cracking, it is necessary to add negative reinforcement to the bracket according to the design of the structural engineer.
4. As a raw material, galvanized steel plates are not afraid of fire and have good fire resistance. The combined floor decking does not need to be sprayed to prevent fire, thus reducing the project cost.
5. After laying the profiled steel plate, it is convenient to suspend the ceiling and arrange pipelines and ventilation ducts. Since the floor deck is connected to the main beam and secondary beam of the steel structure to form a whole, the anti-resistance effect is good.
