Precision & Versatility Redefined: The 1'' Steel Form Deck Sheet Roll Forming Machine for Efficient Floor Deck Production

In the competitive landscape of modern construction, the ability to produce critical structural components on-demand is a game-changer. The 1'' Steel Form Deck Sheet Roll Forming Machine stands as a cornerstone solution, empowering fabricators and contractors to manufacture high-quality, 1-inch deep steel form decking profiles efficiently and reliably. This advanced system masterfully integrates the essential processes of uncoiling, precision leveling, advanced roll forming, and accurate shearing, transforming raw steel coil into robust deck sheets featuring industry-standard 1-inch rib heights. Offering versatile effective coverage widths of both 36 inches and 27 inches, the 1'' Steel Form Deck Sheet Roll Forming Machine delivers not only core functionality but also significant advantages through its optimized workflow, extensive customization capabilities, and the revolutionary remote warranty and support system, ensuring maximum productivity, adaptability, and operational confidence.

Specification

Engineered Efficiency: The Core Workflow from Coil to Finished Deck Sheet

The consistent quality and output speed of the 1'' Steel Form Deck Sheet Roll Forming Machine stem from its meticulously designed, sequential operation:

Robust Uncoiling: Heavy-duty, powered decoilers securely cradle and steadily feed large steel coils into the production line. Integrated tension control systems ensure a smooth, consistent material feed, preventing slippage, edge damage, or distortion at the very start. This stable foundation is critical for the entire 1'' Steel Form Deck Sheet Roll Forming Machine operation, especially when handling wider 36-inch coils.

Critical Precision Leveling: The coiled steel enters a multi-roll leveling unit. This vital stage meticulously eliminates coil set (longitudinal curvature), crossbow (transverse curvature), and any residual stresses or minor imperfections. Precision-ground leveling rolls apply calibrated pressure, resulting in perfectly flat, uniform sheet metal. The quality achieved here by the 1'' Steel Form Deck Sheet Roll Forming Machine is paramount, directly influencing the dimensional accuracy and structural integrity of the final 1-inch deep deck profile, regardless of the chosen coverage width.

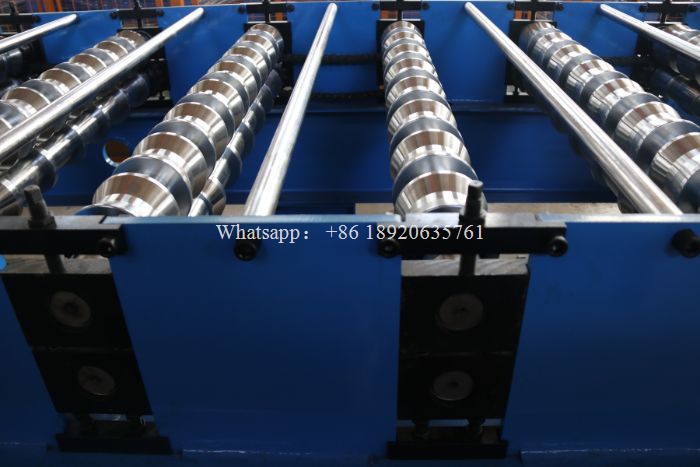

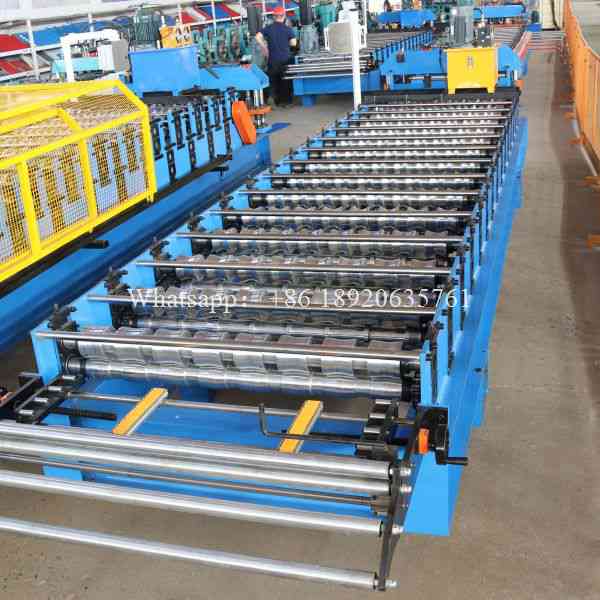

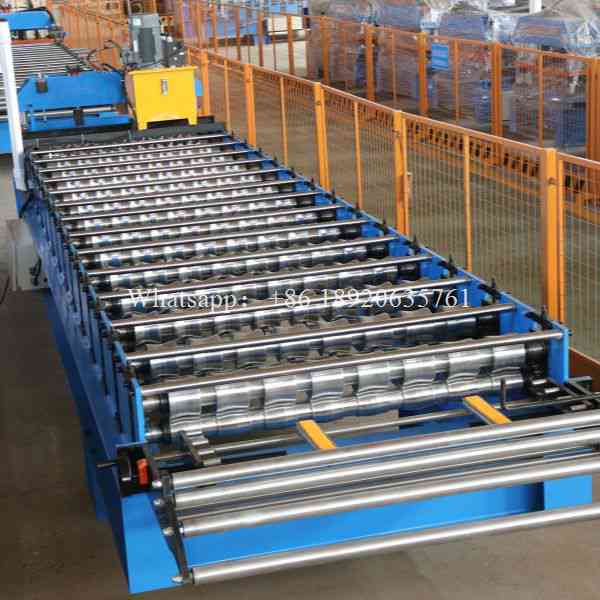

Advanced Roll Forming: The heart of the 1'' Steel Form Deck Sheet Roll Forming Machine. The leveled sheet progresses through a series of precisely machined forming stations. Each consecutive set of hardened steel rolls progressively bends the metal according to the exact geometric specifications of the steel form deck profile with its characteristic 1-inch rib height. Sophisticated servo or hydraulic drives ensure perfect synchronization between stations. This continuous cold-forming process within the 1'' Steel Form Deck Sheet Roll Forming Machine efficiently shapes the flat steel into the required ribs and flanges, maintaining exceptional geometric consistency along the entire length. The machine is adeptly configured to handle both 36-inch and 27-inch effective coverage widths.

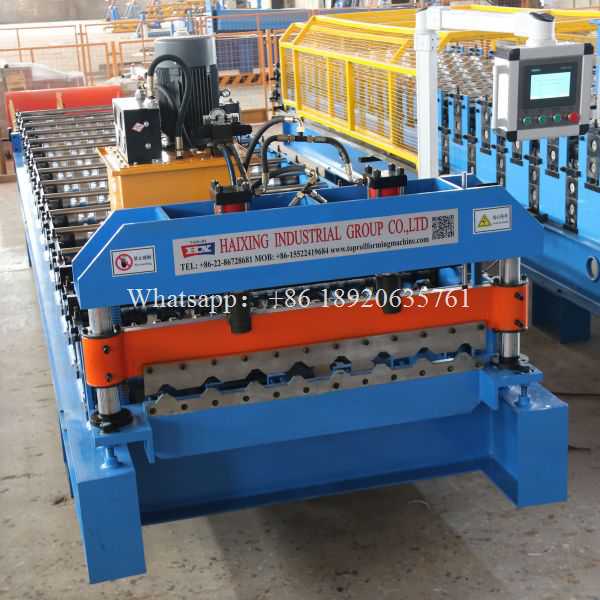

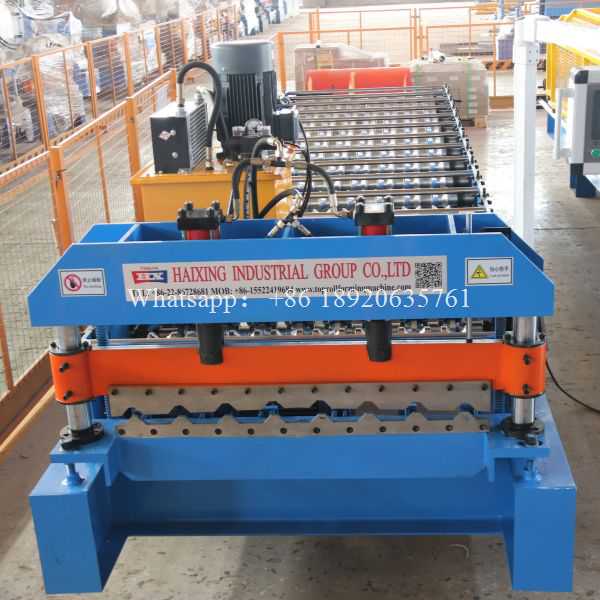

Accurate & Efficient Shearing: Upon reaching the precisely programmed length, the fully formed decking sheet is cleanly severed. The 1'' Steel Form Deck Sheet Roll Forming Machine typically offers cutting technology choices: high-speed hydraulic shears deliver rapid cuts for high-volume production, while servo-electric cutting systems provide superior precision, minimal burring, and quieter operation. Cut panels, in either 36-inch or 27-inch widths with the consistent 1-inch rib height, are then conveyed to automated stacking or bundling systems, ready for immediate transport and installation.

Tailored Solutions: Unparalleled Customization for Diverse Needs

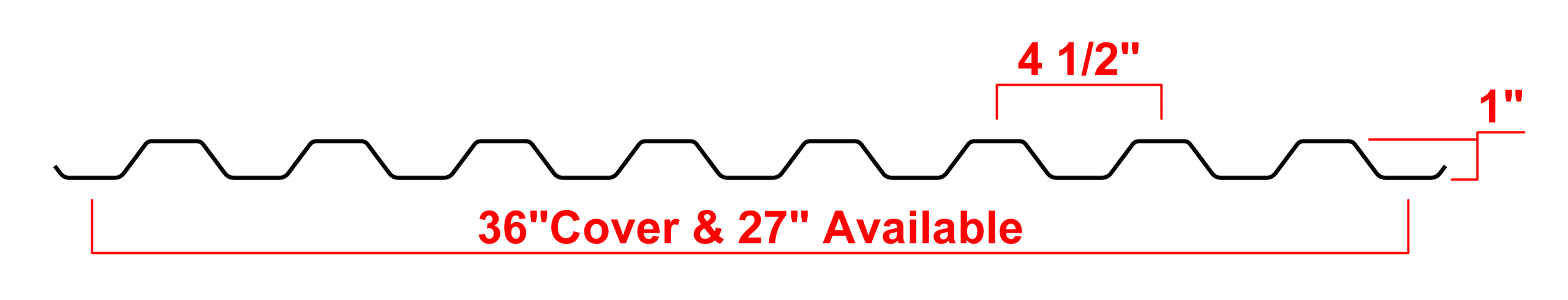

1. Dual Width Versatility: A key differentiator is the machine's ability to produce sheets with effective coverage widths of both 36 inches and 27 inches. This inherent flexibility allows you to efficiently switch between these standard sizes based on project requirements, material optimization strategies, or specific structural design needs, maximizing the utility of your 1'' Steel Form Deck Sheet Roll Forming Machine.

2.  Profile Consistency & Minor Adjustments: While optimized for the standard 1-inch rib height steel form deck profile, the machine ensures consistent geometry. Minor adjustments related to rib spacing, embossing patterns, or flange details for specific connection requirements or enhanced performance can often be accommodated through the roll tooling configuration of the 1'' Steel Form Deck Sheet Roll Forming Machine.

3.  Material Mastery: Process a wide array of steel specifications confidently. The 1'' Steel Form Deck Sheet Roll Forming Machine handles various grades (G300, G350, G450) and protective coatings (Galvanized, Galvalume, AZ150, PPGI). It is engineered to adapt seamlessly to different material thicknesses (typically ranging from 0.8mm to 1.5mm), guaranteeing consistent profile quality and performance regardless of the input coil used.

4.  Cutting System Choice: Select the shear technology that aligns with your priorities. Opt for the raw speed and power of hydraulic shearing for large-scale projects, or choose the pinpoint accuracy and clean, quiet operation of servo-electric cutting for precision work. The 1'' Steel Form Deck Sheet Roll Forming Machine allows easy programming of any custom cut length to maximize material yield and minimize scrap across both width options.

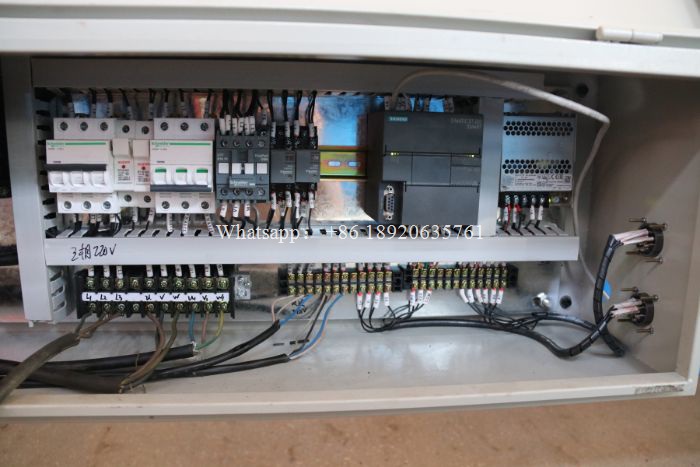

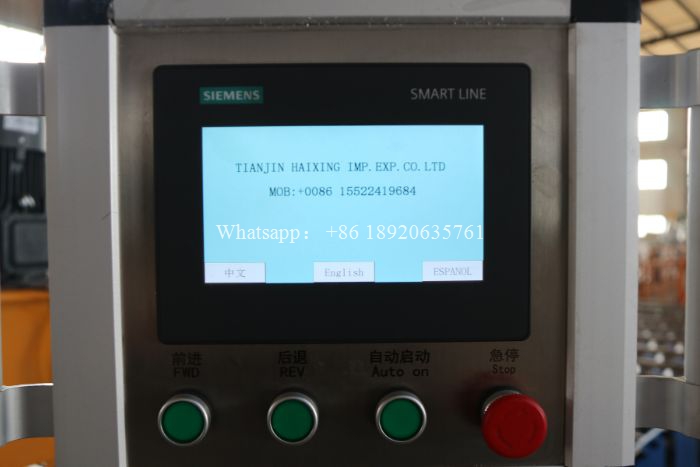

5.  Production Speed & Control: Dictate your own pace. The line speed of the 1'' Steel Form Deck Sheet Roll Forming Machine is fully adjustable, catering to varying project demands – from steady, controlled output to high-volume continuous runs. Intuitive PLC (Programmable Logic Controller) interfaces provide operators with effortless control over all critical parameters (speed, cut length, width selection, diagnostics).

6.  Seamless Production Line Integration: The machine acts as the core of an efficient production cell. We ensure flawless integration with essential upstream components (powered decoilers, heavy-duty levelers capable of handling both widths) and downstream automation (automatic stackers, strapping/bundling systems, conveyors). Whether integrating the 1'' Steel Form Deck Sheet Roll Forming Machine into an existing line or building a complete turnkey solution, the configuration is meticulously tailored to your specific factory layout and operational workflow.

The 1'' Steel Form Deck Sheet Roll Forming Machine is more than equipment; it's a productivity engine and a connected asset. Its optimized workflow delivers consistent, high-quality 1-inch deep deck sheets efficiently, offering the crucial flexibility of 36-inch and 27-inch coverage widths. Deep customization ensures it fits your unique production needs perfectly. The groundbreaking remote warranty and support provide proactive care and rapid response, transforming risk into managed assurance.

Investing in this advanced 1'' Steel Form Deck Sheet Roll Forming Machine means investing in operational control, versatility, and future-ready manufacturing. Take command of your deck sheet supply, reduce dependencies, seize opportunities with flexible width production, and build with greater efficiency and confidence.

Ready to enhance your floor deck production with versatile width options, seamless workflow, and intelligent remote support? Contact us today to explore how our 1'' Steel Form Deck Sheet Roll Forming Machine can be engineered for your success. View more...

Our photos with our customers

WHY CHOOSE US?

about us

We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.

FAQ

Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.

Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a 1'' steel form deck sheet roll forming machine. It can produce more than 3 panels.

Q: How long does it take to manufacture the machine?
A: In general, the 1'' steel form deck sheet roll forming machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.

Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.

Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
