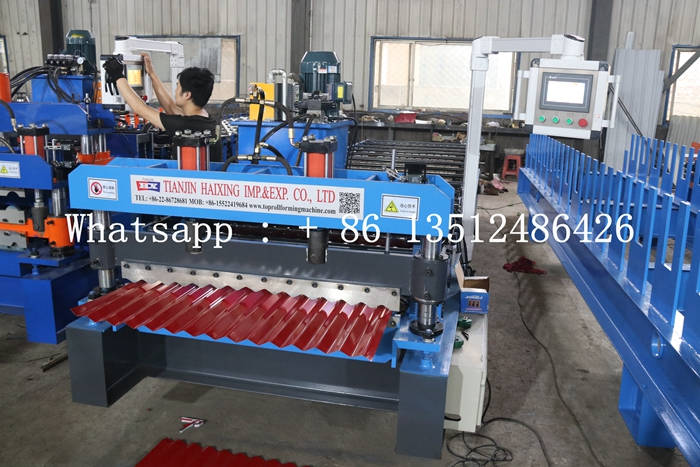

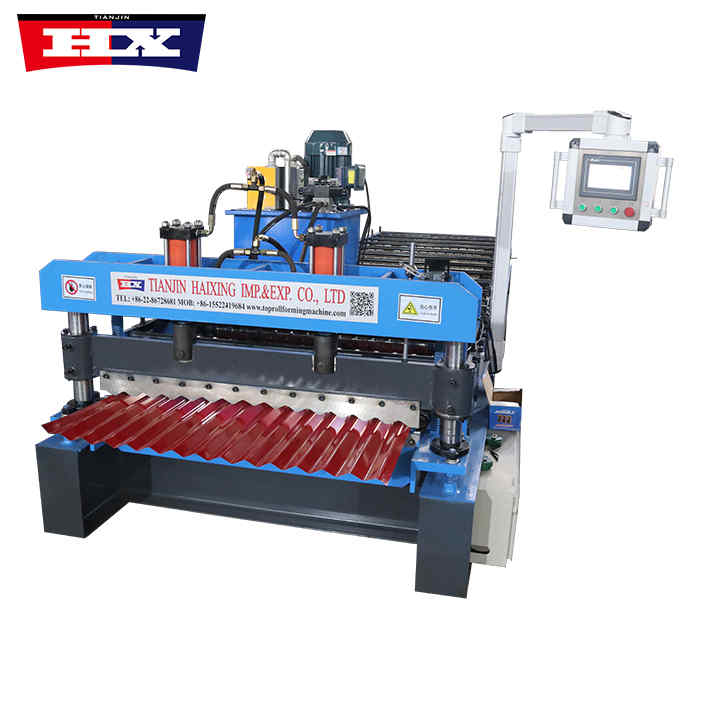

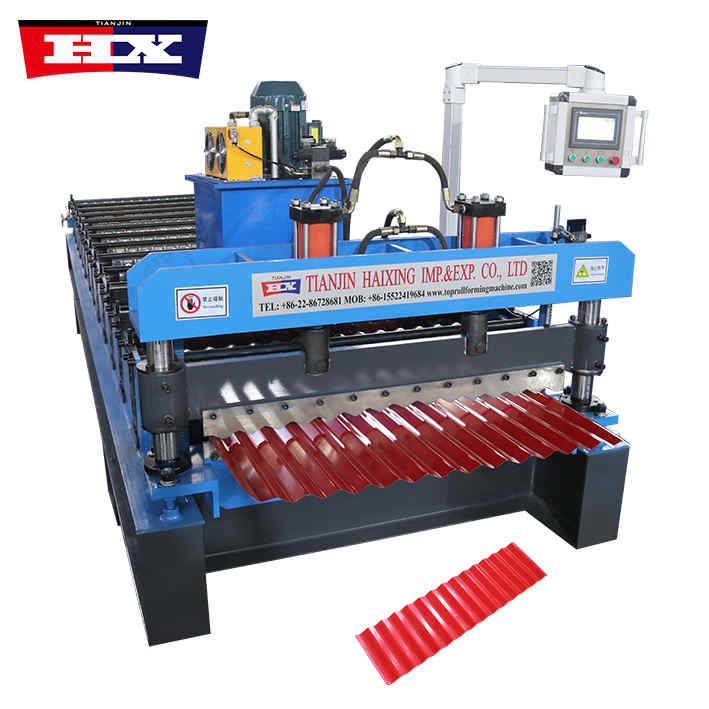

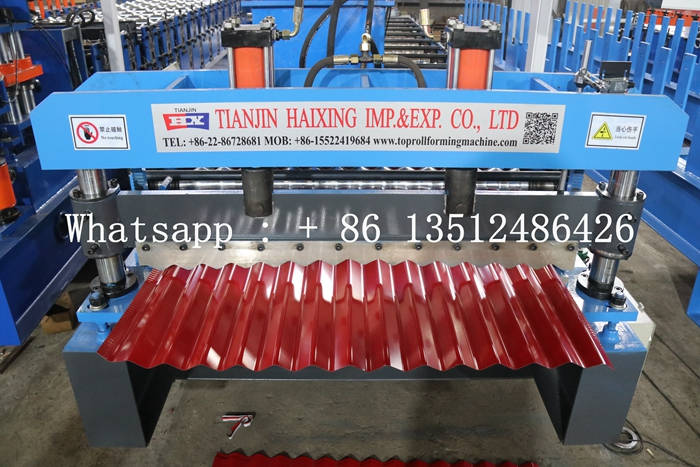

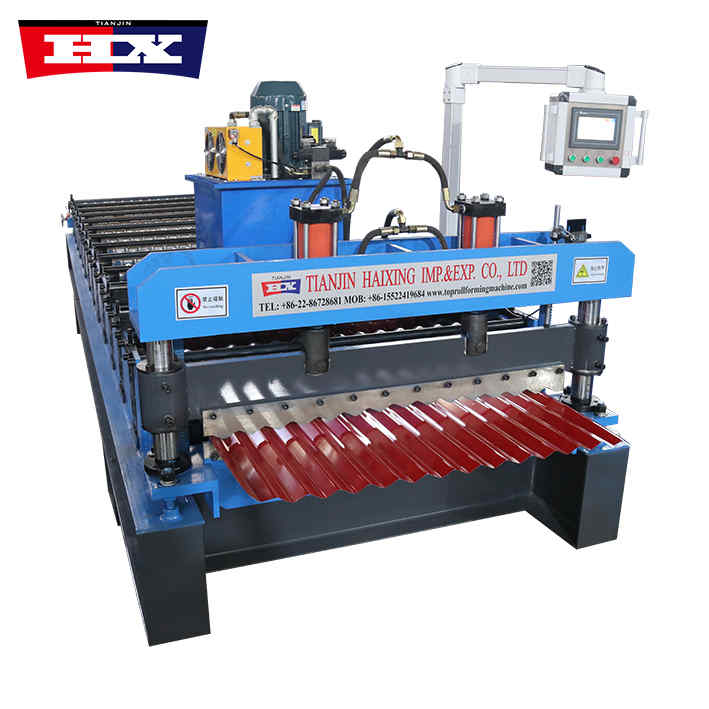

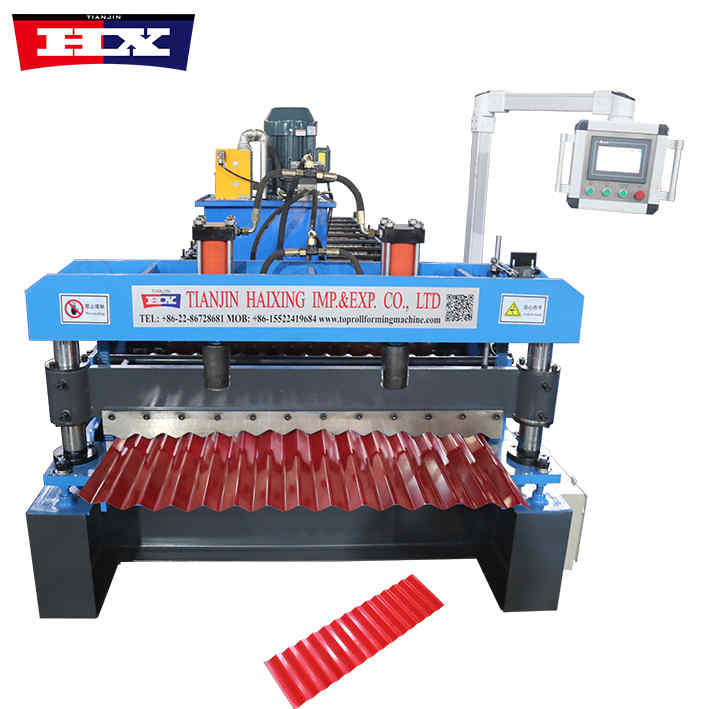

Corrugated Roofing Sheet Machine
Corrugated Roofing Sheet Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

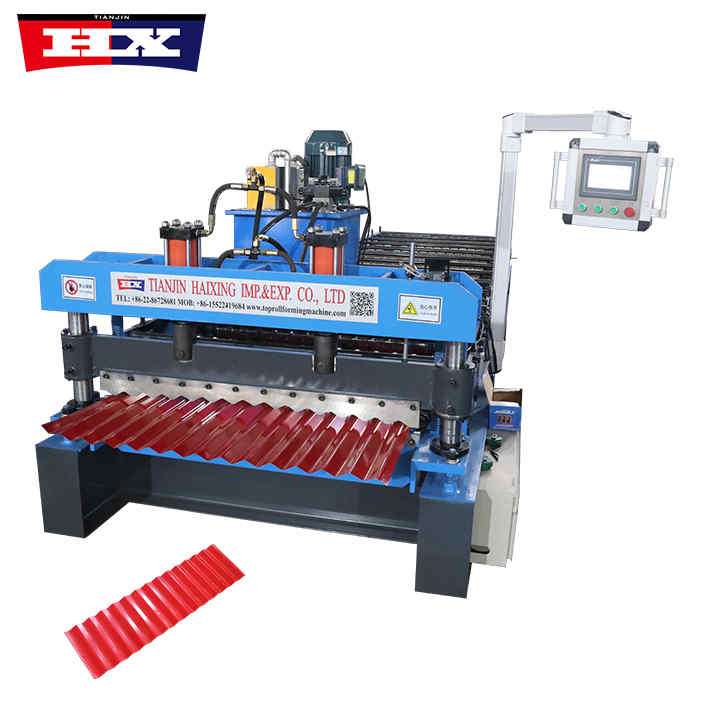

Corrugated Roofing Sheet Machine
Corrugated Roofing Sheet Machine

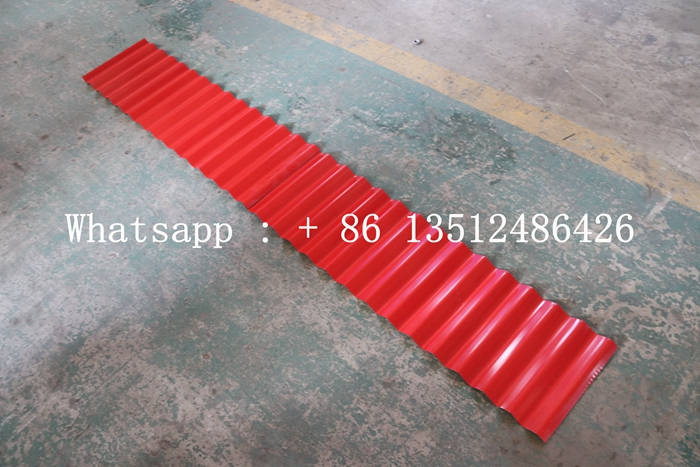

A corrugated roofing sheet machine is designed to produce various types of tiles. It can be used to produce various types of building materials such as roof tiles, wall tiles, and floor tiles of different materials. The tile press can shape different tile materials. It has the advantages of beautiful appearance, durability and easy maintenance. It is an indispensable equipment in the construction industry.

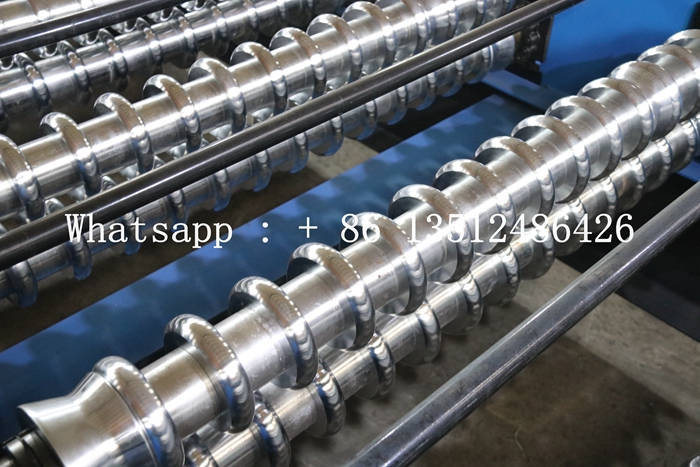

The working principle is to press and punch metal or other materials through the forming roller, and finally form them into the required tile shape. The entire molding process is regulated through a pressure control system to control the hydraulic pressure of each part to ensure the uniformity and coordination of the final molding.

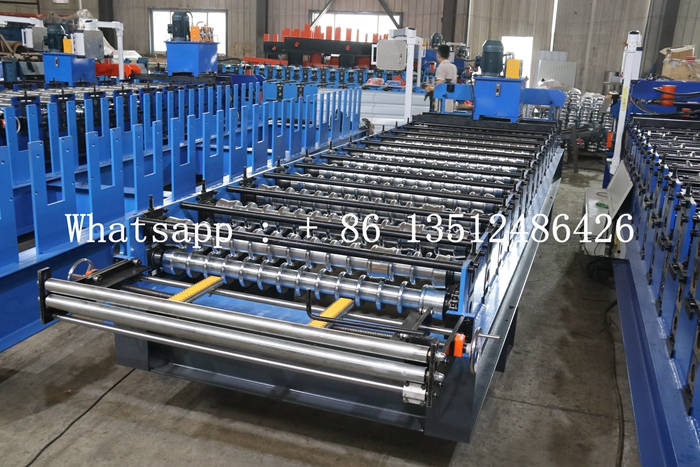

Corrugated Roofing Sheet Machine
Specification
No. |
Number |
Corrugated Roofing Sheet Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Advantages
1. High efficiency: The corrugated roofing sheet machine has high pressure and speed, which can quickly and accurately complete the pressing work of metal sheets and improve production efficiency.
2. High precision: Adopt advanced control system and transmission system to ensure high pressing accuracy and repeatability, and reduce product scrap rate.
3. High reliability: The corrugated roofing sheet machine adopts high-quality materials and components, and undergoes strict quality control and durability testing to ensure the reliability and stability of the equipment.
4. High degree of automation: Equipped with an automated control system and safety protection device, it can realize automatic feeding, automatic pressing and automatic discharging functions, reducing manual intervention and operating difficulty.
5. Wide scope of application: suitable for pressing various metal plates, such as steel plates, stainless steel plates, aluminum plates, etc., widely used in construction, machinery, ships, automobiles and other fields.
