Corrugated Machine
Corrugated Machine
Voltage: 380v/220v 50hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time : 40 days
Thickness : 0.3-0.8mm
Produce Speed : 10-15m/min
Port : Tianjin

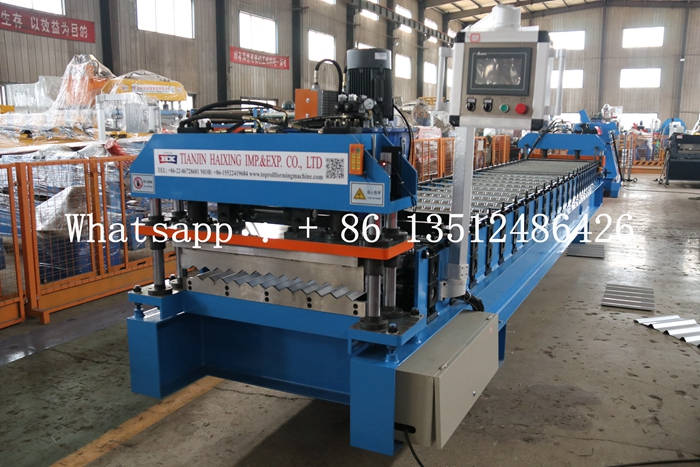

Corrugated Machine

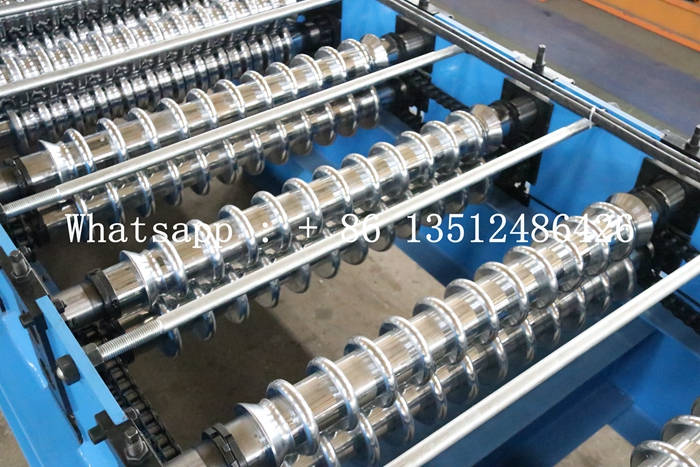

Corrugated Machine
1. Working principle
The working principle of the Corrugated Machine is mainly to transmit pressure to the oil cylinder through the hydraulic system, push the upper mold and lower mold to close, and press and form the metal sheet. During the pressing process, the machine adopts a digital control system, which can realize automatic control and adjustment, improving production efficiency and product quality.
2. Structural characteristics

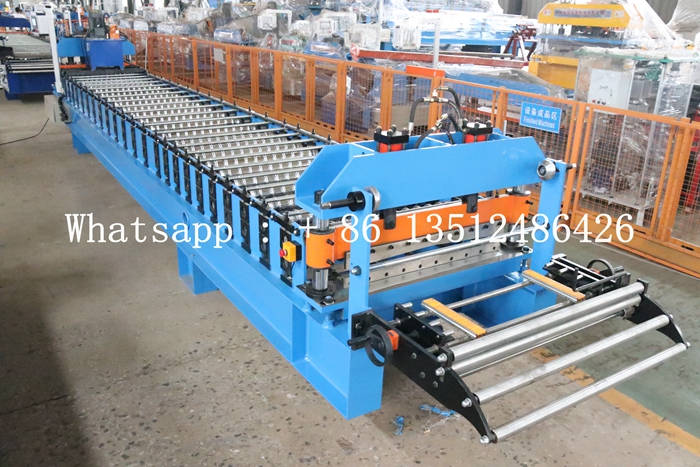

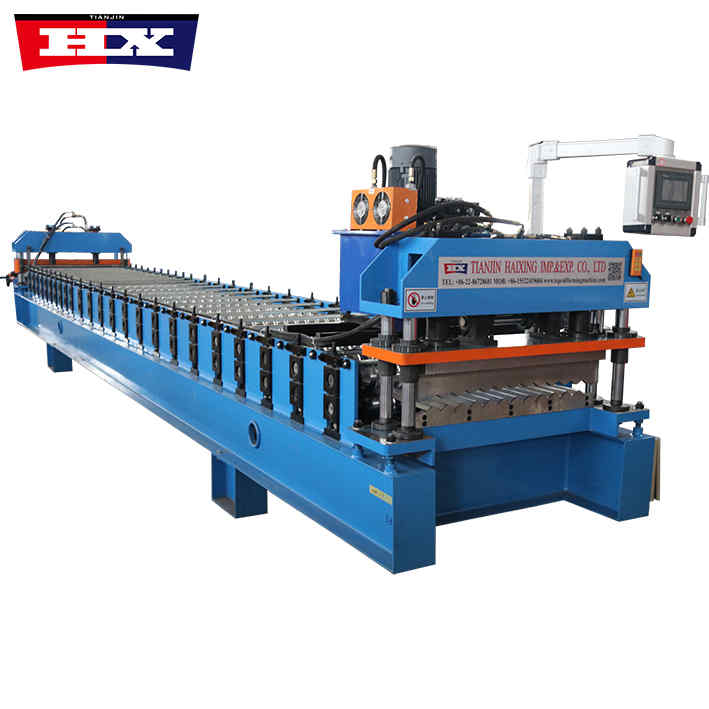

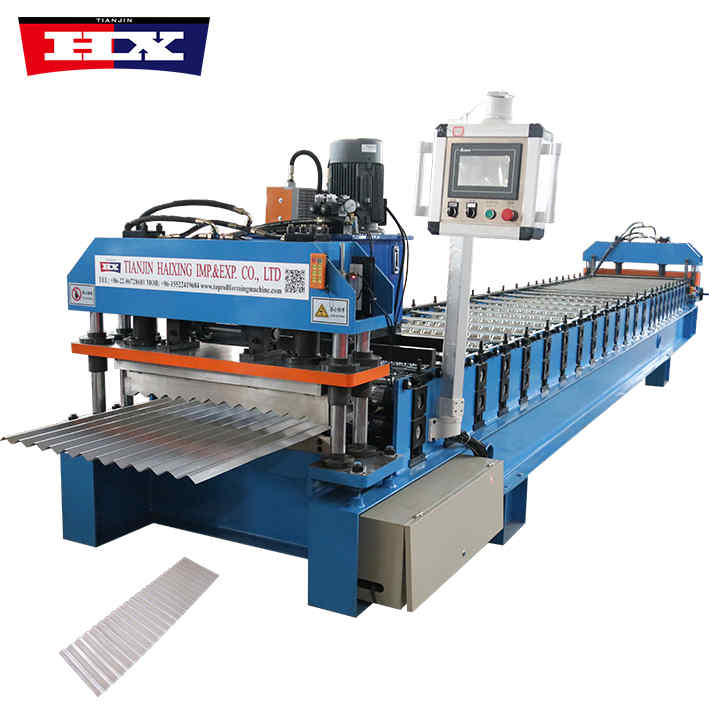

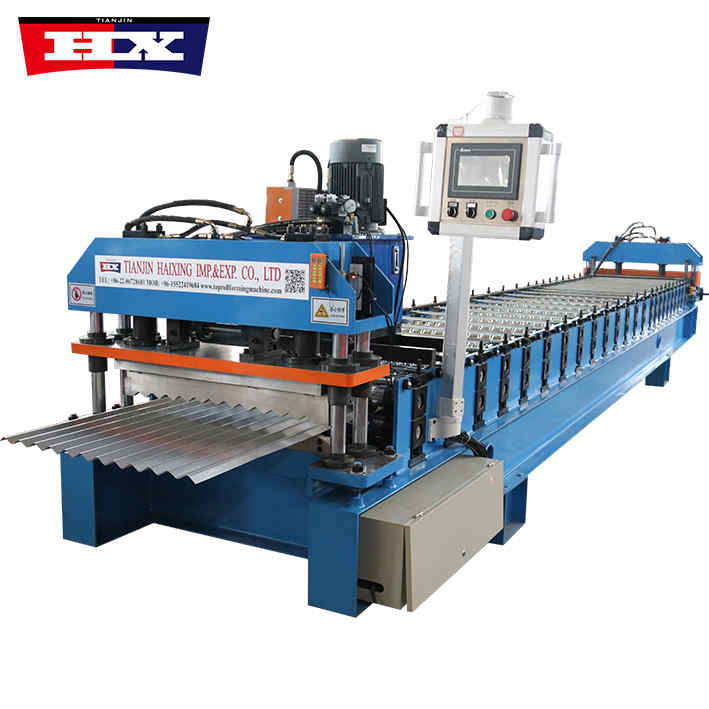

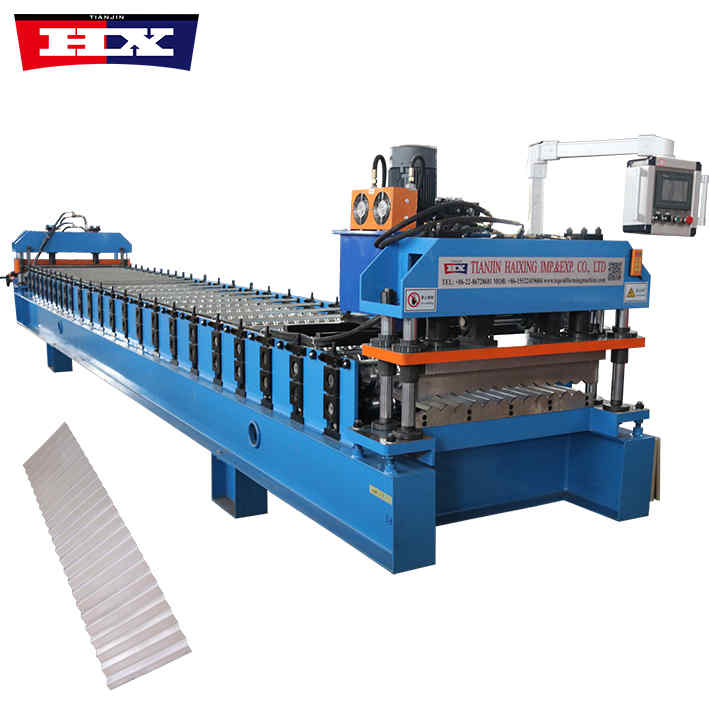

The Corrugated Machine is mainly composed of the main machine, hydraulic system, electrical control system, feeding device and other parts. The main machine is the core part of the entire machine, including the upper and lower molds, oil cylinders and other components; the hydraulic system is the power source to achieve the pressing action; the electrical control system is a key part to achieve automated control; the feeding device is responsible for feeding the metal plates into the pressing process Bit.

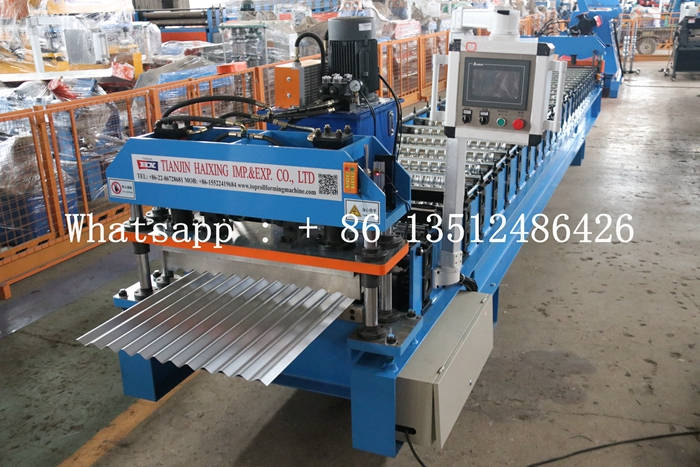

Corrugated Machine
Specification
No. |
Number |
Corrugated Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |

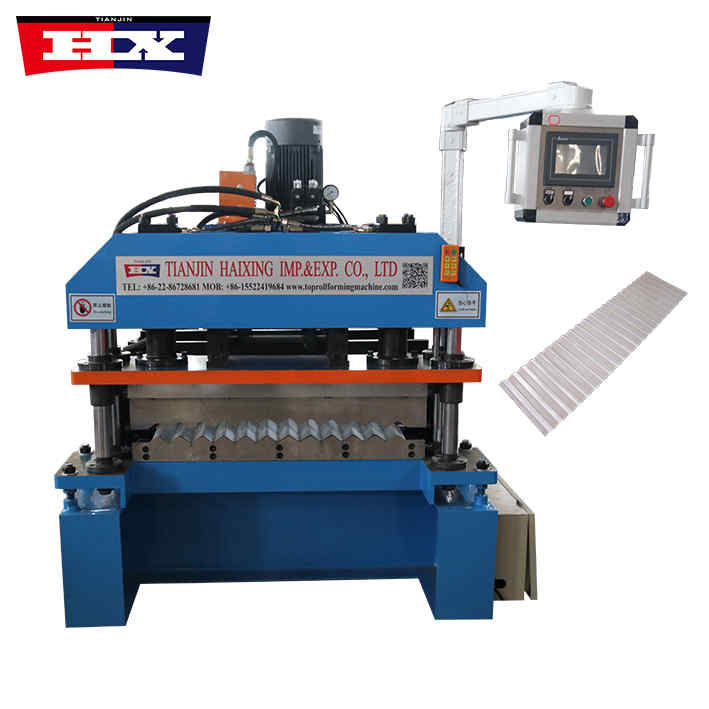

| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |
| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 24 |
| 19. | Size | 11500mm*1500mm*1600mm |
| 20. | Weight | 6000kg |
Advantages
1. The corrugated machine has efficient production capacity. It uses advanced technology and design to quickly produce large quantities of tiles in a short period of time. This makes it one of the indispensable production equipment in the construction industry and manufacturing industry.
2. The corrugated machine has the characteristics of high precision and high stability. It produces high-quality tiles with each tile being the same size and shape. This makes it widely used in the construction and manufacturing fields, as it can meet a variety of different production needs.
3. The corrugated machine is also easy to operate and maintain. It adopts a simple and easy-to-use operation interface and control method, making operation and maintenance more convenient and faster. At the same time, it also has low energy consumption and operating costs, making it an economical production equipment.
