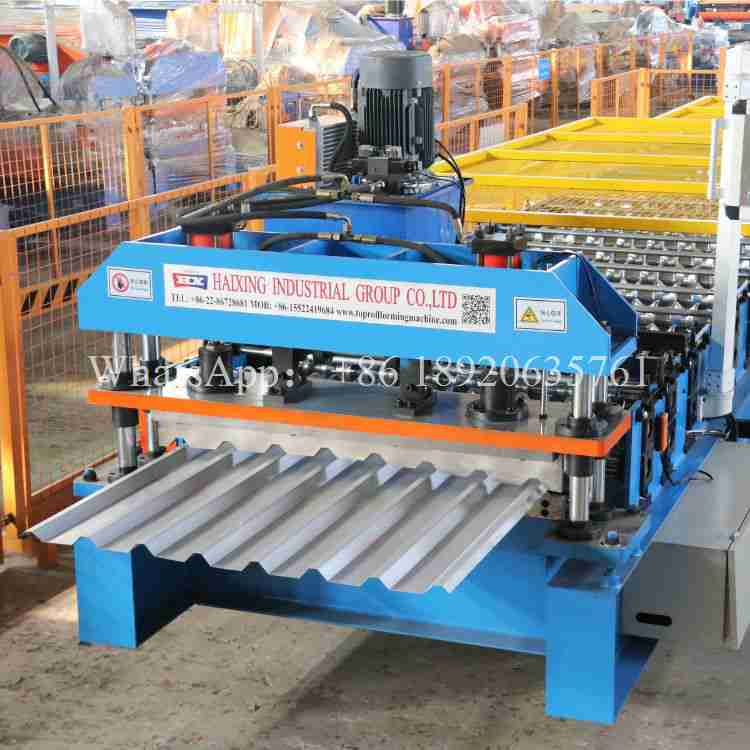

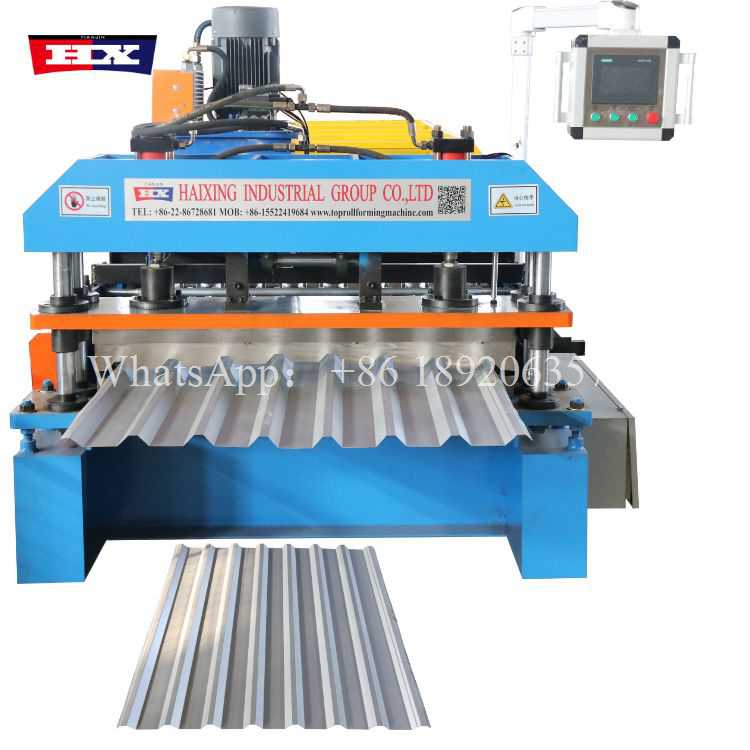

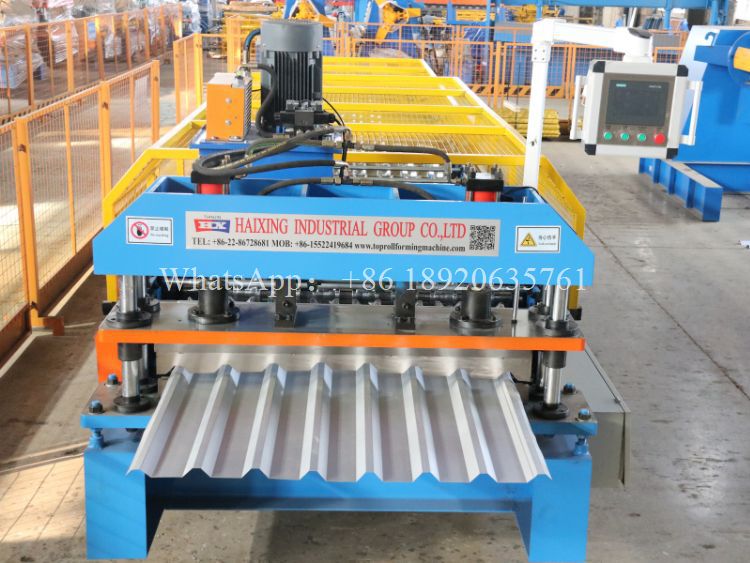

Trapezoidal Roof Roll Forming Machine
Trapezoidal Roof Roll Forming Machine
Voltage: 380v/220v 50Hz 3p can be customized according to customer requirements
Production Time: 30-35 working days
Shipping Time: 40 days
Thickness: 0.3-0.8mm
Produce Speed: 10-15m/min
Port: Tianjin
Advanced Manufacturing Solutions with Trapezoidal Roof Roll Forming Machine
The construction industry continues to demand innovative roofing solutions that combine structural integrity with manufacturing efficiency. Modern architectural projects require reliable roofing components that can withstand diverse weather conditions while maintaining aesthetic appeal. Our Trapezoidal Roof Roll Forming Machine represents the pinnacle of cold roll forming technology, specifically engineered to meet the rigorous demands of contemporary roofing material production. This advanced Trapezoidal Roof Roll Forming Machine demonstrates our commitment to delivering superior manufacturing equipment that sets new standards in the building materials industry.
The production process of our Trapezoidal Roof Roll Forming Machine incorporates a fully automated workflow that ensures consistent quality from raw material to finished product.
Trapezoidal Roll Forming Machine Production Line

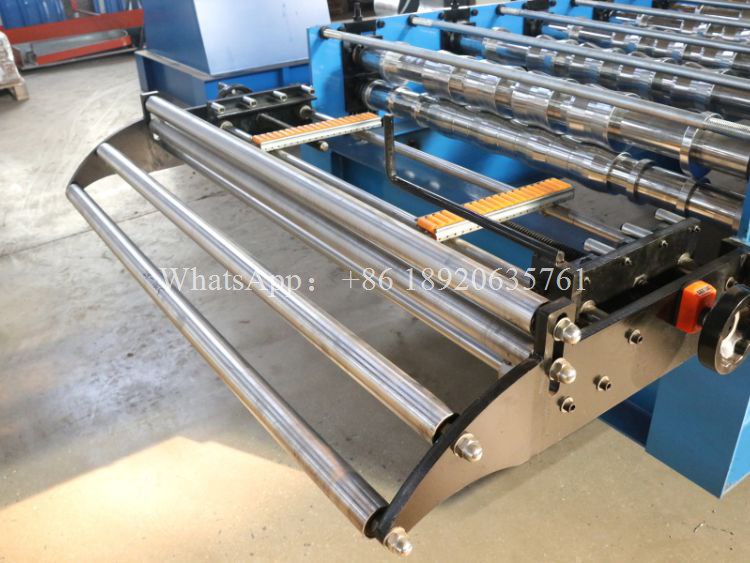

The operation begins with an automatic decoiling system that feeds metal coils into the production line with precise tension control.

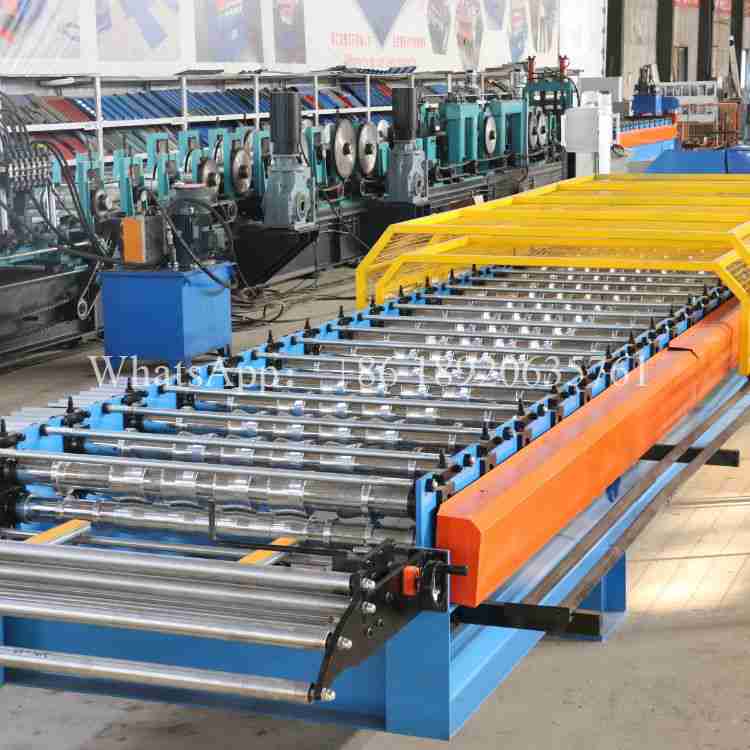

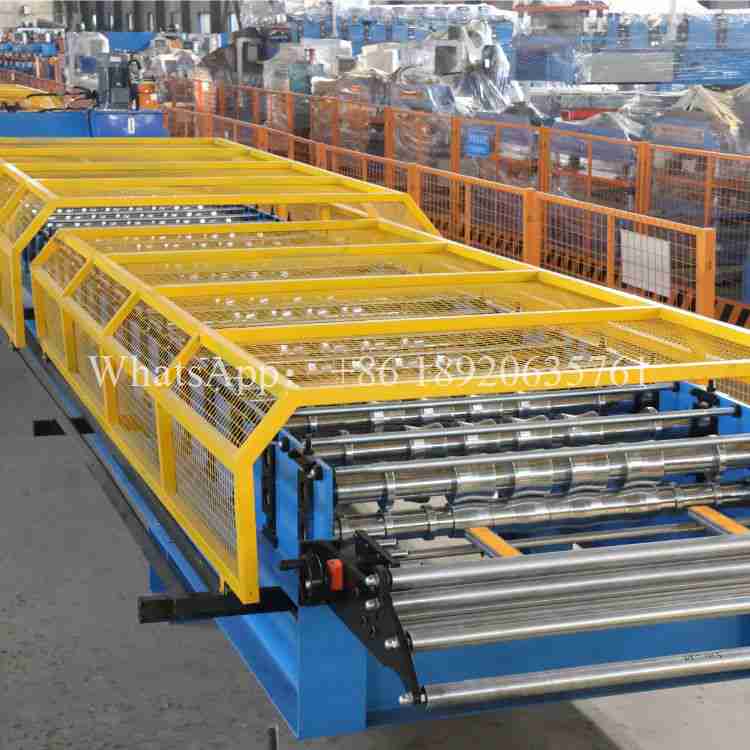

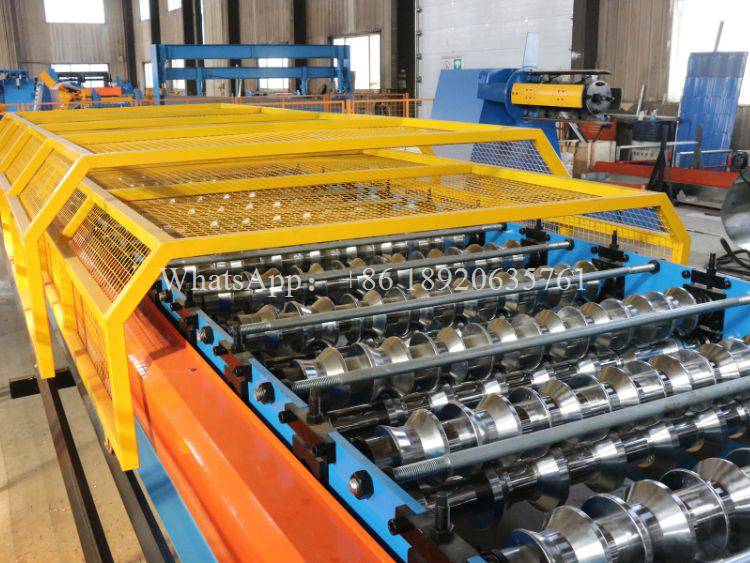

The material then proceeds to the precision roll forming section, where computer-engineered rollers gradually shape the metal strip into perfect trapezoidal profiles.

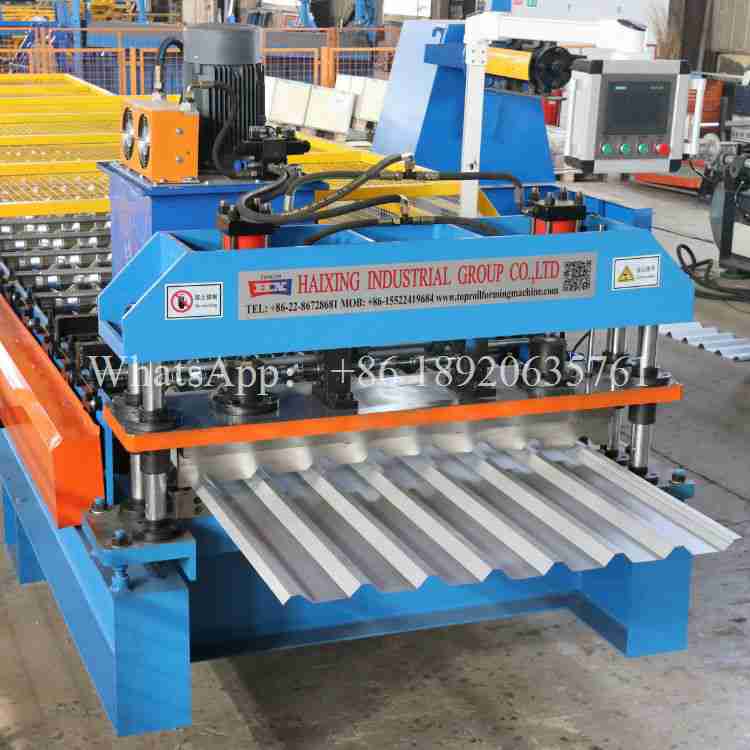

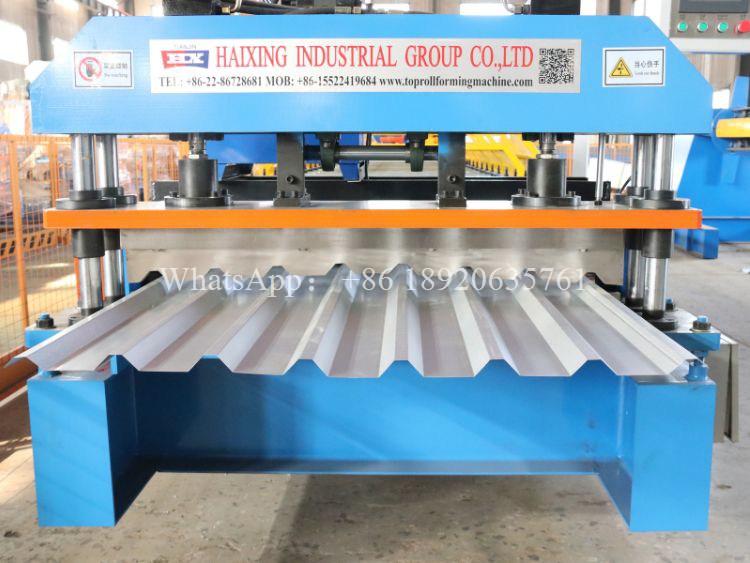

Following the forming stage, a high-speed cutting system accurately severs the continuous panels to required lengths, while an automated stacking device organizes the finished products for convenient handling.
Specification
No. |
Number |
Trapezoidal Roof Roll Forming Machine |
| 1. | Operation style | Automatic |
| 2. | Raw materials | PPGI |
| 3. | Structure | 350H Beam |
| 4 | Middle side | 16mm |
| 5. | Main motor | 5.5kw |
| 6. | Pump station | 4kw |
| 7. | Cutting type | Hydraulic cutting |
| 8. | Produce speed | 10-15m/min |
| 9. | Chain | 1 inch |
| 10. | Shaft material | Cr12MoV |
| 11. | Brand of electrical control cabinet | Delta or customized according to customer requirements |

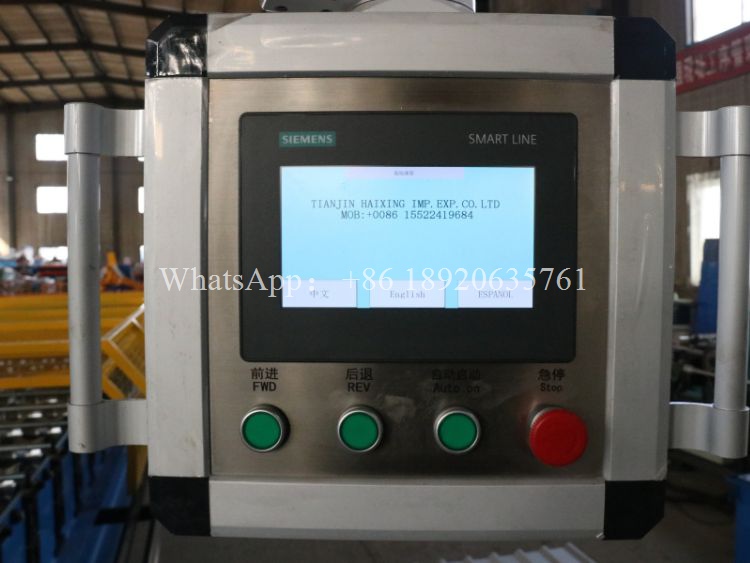

| 12. | Touch screen/inverter | Delta or customized according to customer requirements |
| 13. | Rolling materials | Forged 45# steel with chrome plate |
| 14. | Cutting blade material | Cr12, treatment off 58 ℃ -60 ℃ |
| 15. | Roller diameter | Φ70mm |
| 16. | Voltage | 380v 50hz 3p be customized |
| 17. | Thickness | 0.3-0.8mm |
| 18. | Rows | 13 |
| 19. | Size | 6500mm*1500mm*1600mm |
| 20. | Weight | 5000kg |
Our Trapezoidal Roof Roll Forming Machine carries CE certification, demonstrating compliance with the highest European safety and quality standards. This certification ensures that the Trapezoidal Roof Roll Forming Machine meets rigorous technical requirements and operates with optimal safety performance. Beyond certification, we provide comprehensive after-sales services including installation guidance, operational training, and technical support. Our commitment to customer satisfaction extends throughout the entire lifecycle of the Trapezoidal Roof Roll Forming Machine, ensuring reliable performance and minimal downtime.
The versatility of our Trapezoidal Roof Roll Forming Machine makes it suitable for various manufacturing requirements. The equipment can process different metal materials and thicknesses, producing high-quality roofing panels that meet international standards. Investing in our Trapezoidal Roof Roll Forming Machine represents a strategic decision to enhance manufacturing capabilities in the competitive construction materials market. This sophisticated production solution enables manufacturers to produce superior trapezoidal roofing panels with exceptional consistency, supporting the growing global demand for quality building materials while ensuring compliance with international safety standards.
Our photos with our customers
WHY CHOOSE US?
About us
We, Tianjin Haixing a professional cold roof roll forming machine manufacturer, we have been focusing on this field for 28 years and support ODM/OEM, our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, cable tray punch machine, and other related construction equipment. We are cooperating with 150+ countries & 5,000+ Partners.
FAQ
Q: Are you a trading company or a factory?
A: We are a factory with a professional production team and service consciousness, just for exporting various types of cold roll forming machines.
Q: Can a machine produce only one style of panel profile?
A: Not complete. Suitable for a Trapezoidal Roof Roll Forming Machine. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the Trapezoidal Roof Roll Forming Machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other parts, processing, assembly, testing, and packaging on the roll surface and shaft.
Q: What can you do if the machine breaks?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through negotiation, and we provide technical support for the entire life cycle of the device.
